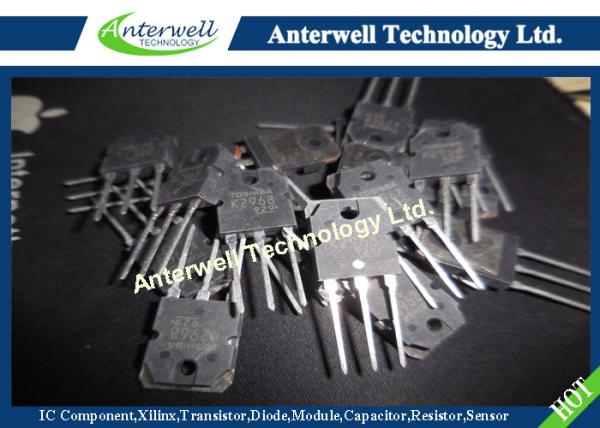

High Power Transistor Switch
High Power Transistor Switch
Specifications
Brand Name :
ANTERWELL
Model Number :
2SK2968
Certification :
Original Factory Pack
Place of Origin :
Japan
MOQ :
20
Price :
negotiate
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5320
Delivery Time :
1
Packaging Details :
please contact me for details
Current :
10-40A
Mold :
N-CHANNEL MOS TYPE
Main Line :
IC components, Transistor, Diode, Module,Capacitor etc
Temperature :
-55 to +150 °C
D/C :
979
Package :
TO-220
Description

2SK1305 N CHANNEL MOS TYPE (HIGH SPEED, HIGH VOLTAGE SWITCHING, DC-DC CONVERTER, RELAY DRIVE)

High Speed High Voltage Switch Aplication

DC-DC Coverter Relay Drive and Motro Drive Aplication

Application

High speed power switching
Features
• Low on-resistance
• High speed switching
• Low drive current
• 4 V gate drive device
 Can be driven from 5 V source
• Suitable for motor drive, DC-DC converter, power switch and solenoid drive

Absolute Maximum Ratings
(Ta = 25°C)

Gate to source voltage VGSS +-20

V
Drain current ID 10 A
Drain peak current ID(pulse)*1 40 A
Body to drain diode reverse drain current IDR 10 A
Channel dissipation 25 W
Channel temperature Pch*2 150 °C
Storage temperature Tstg -55 to+150 °C

Notes: 1. PW ≤ 10 µs, duty cycle
2. Value at T = 25°C
