BTA26-600B integrated circuit components 3 Pin Transistor 3 terminal voltage regulator
BTA26-600B integrated circuit components 3 Pin Transistor 3 terminal voltage regulator
Specifications
Brand Name :
Anterwell
Model Number :
BTA26-600B
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
9100pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Operating junction temperature :
- 40 to + 125 °C
Storage junction temperature :
- 40 to + 150°C
Average gate power dissipation :
1 W
Peak gate current :
4 A
Non repetitive surge peak off-state voltage :
VDRM/VRRM + 100 V
Critical rate of rise of on-state current :
50 A/µs
Description

BTA/BTB24, BTA25, BTA26 and T25 Series

SNUBBERLESSTM & STANDARD

25A TRIACS

MAIN FEATURES:

Symbol Value Unit
IT(RMS) 25 A
VDRM/VRRM 600 and 800 V
IG (Q1) 35 to 50 mA

DESCRIPTION

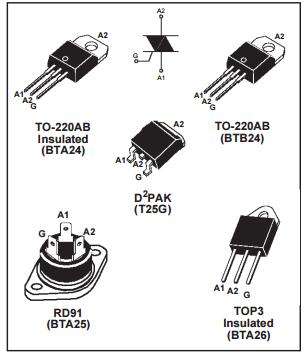

Available either in through-hole of surface and T25 mount packages, the BTA/BTB24-25-26 triac series is suitable for general purpose AC power switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, water heaters, induction motor starting circuits...or for phase control operation in high power motor speed controllers, soft start circuits...The snubberless versions (BTA/BTB...W and T25 series) are specially recommended for use on inductive loads, thanks to their high commutation performances.

By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734).

Absolute maximum ratings

Symbol Parameter Value Unit
IT(RMS) RMS on-state current (full sine wave) D2PAK TO-220AB Tc = 100° C 25 A
RD91 TOP3 Ins. Tc = 90° C
TO-220AB Ins. Tc = 75° C
ITSM

Non repetitive surge peak on-state

current (full cycle, Tj initial = 25° C)

 F = 50 Hz t = 20 ms 250 A
F = 60 Hz t = 16.7 ms 260
I² t I² t Value for fusing tp = 10 ms 450 A² s
dI/dt

Critical rate of rise of on-state current

IG = 2 x IGT , tr ≤ 100 ns

 F = 120 Hz Tj = 125° C 50 A/µs
VDSM/VRSM Non repetitive surge peak off-state voltage tp = 10 ms Tj = 25° C VDRM/VRRM + 100 V
IGM Peak gate current tp = 20 µs Tj = 125° C 4 A
PG(AV) Average gate power dissipation Tj = 125° C 1 W

Tstg

Tj

Storage junction temperature range

Operating junction temperature range

- 40 to + 150

- 40 to + 125

 ° C

BTA26-600B integrated circuit components 3 Pin Transistor 3 terminal voltage regulator
