Specifications
Brand Name :
CHM Machinery
Model Number :
CHM-1100/1400/1700/1900
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
60000-120000 USD
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
200
Delivery Time :
30
Packaging Details :
Film, shipping mark, bubble wrap
Total Power :
22kW
Power Supply :
AC380V 50Hz
Dimensions :
6000mm x 2500mm x 1800mm
Maximum Cutting Width :
1100mm
Cutting Accuracy :
±0.5mm
Maximum Cutting Speed :
300m/min
Control System :
PLC Servo
Description
CHM Series Precision High Speed Single Rotary Knife Paper Sheeter Machine
CHM Machinery specializes in computerized high-precision single rotary sheeters designed for paper mills, paper distributors, and printing houses. This advanced equipment enhances slitting capacity while ensuring superior quality output for paper sizes ranging from 60 to 550 gsm.
Machine Configuration & Features
  • Automatic tension system unwind stand with multi-point automatic braking
  • Auto-EPC (Edge Paper Control) for precise alignment
  • Deculler System (Anti-curvature Device) for flat sheet output
  • Middle Slitting and Waste Edge Collecting System
  • High precision single rotary sheet cutter with AC servo-driven control
  • Advanced Paper Conveyor System
  • Electrostatic eliminator System for static control
  • Auto-Squareness Adjustment System
  • Auto counting and Label inserting device
  • Auto Jogger System for perfect stacking
Technical Specifications
Specification CHM-1400 CHM-1700 CHM-1900
Cutting Method Top blade rotary, bottom blade fixed Top blade rotary, bottom blade fixed Top blade rotary, bottom blade fixed
Paper Weight Range 60-550 GSM 60-550 GSM 60-550 GSM
Cutting Accuracy ±0.5mm ±0.5mm ±0.5mm
Max Cutting Speed 300 sheets/min 300 sheets/min 300 sheets/min
Max Cutting Meter Speed 300m/min 300m/min 300m/min
Cutting Length Range 450-1650mm 450-1650mm 450-1650mm
Max Scroll Diameter 1800mm 1800mm 1800mm
Stacking Height 1500mm (59") 1500mm (59") 1500mm (59")
Max Paper Width 1400mm 1700mm 1900mm
Weight 12000kg 13000kg 14000kg
Dimensions (L×W×H) 12518×3853×2230mm 12518×4153×2230mm 12518×4353×2230mm
Machine Components & Operation
Paper Sheet Roll To Cutting Machine More Unwind Unit

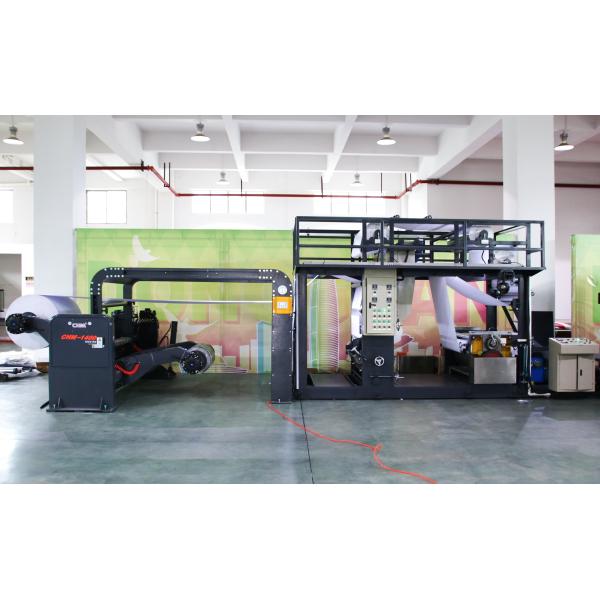

Complete Machine Overview
Paper Sheet Roll To Cutting Machine More Unwind Unit
Paper Sheeter in Operation
Paper Sheet Roll To Cutting Machine More Unwind Unit
Cutting Mechanism Detail
Paper Sheet Roll To Cutting Machine More Unwind Unit
Hydraulic Shaft-less Unwind Station
Paper Sheet Roll To Cutting Machine More Unwind Unit
Multi-disc Brake System
Paper Sheet Roll To Cutting Machine More Unwind Unit
High Precision Rotary Cutter
Paper Sheet Roll To Cutting Machine More Unwind Unit
Conveyor Unit
Paper Sheet Roll To Cutting Machine More Unwind Unit
Auto Jogger System
Paper Sheet Roll To Cutting Machine More Unwind Unit
Slitting & Waste Collection System
Company Profile
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories spanning nearly 140,000 square meters across Guangdong, Shandong, and Jiangsu. As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and comprehensive after-sales support.
Our equipment has been operational since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide. We work with major paper industry partners including Sun Paper, ND Paper, Double A, APP, and Chenming Paper.
Contact Information
Website: www.chmmachinery.com
Email: chm017@szchm.com
WhatsApp/WeChat: +86-13215242947 (Ms. Ada)
Please provide your detailed requirements including paper type, gram weight, width, and capacity for customized machine recommendations.
Frequently Asked Questions
What quality service do you offer?
All machine parts are covered by a one-year warranty, with lifetime maintenance support. Outside warranty periods, we provide spare parts and services at preferential prices.
How do you guarantee quality?
We conduct pre-production samples before mass production and perform final inspections before shipment to ensure consistent quality standards.
Why choose CHM Machinery?
As the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, we offer expert sheet solutions backed by extensive R&D and over 110 patents.
What products do you offer?
We specialize in paper sheeter machines, paper cutters, copy paper and packaging machines, and cut-to-size paper and packaging equipment.
