Specifications
Brand Name :
CHM Machinery
Model Number :
CHM-1100/1400/1700/1900
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
60000-120000 USD
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
200
Delivery Time :
30
Packaging Details :
Film, shipping mark, bubble wrap
Total Power :
22kW
Power Supply :
AC380V 50Hz
Dimensions :
6000mm x 2500mm x 1800mm
Maximum Cutting Width :
1100mm
Cutting Accuracy :
±0.5mm
Maximum Cutting Speed :
300m/min
Control System :
PLC Servo
Description
Single Rotary Paper Sheeting Machine
CHM-1100/1400/1700/1900 Precision High Speed Single Rotary Knife Paper Sheeter Machine
Machine Configuration
  • Unwind Stand with automatic tension system and multi-point automatic braking
  • Auto-EPC (Edge Paper Control)
  • Deculler System (Anti-curvature Device)
  • Middle Slitting and Waste Edge Collecting System
  • High precision single rotary sheet cutter
  • Paper Conveyor System
  • Electrostatic Eliminator System
  • Auto-Squareness Adjustment System
  • Auto Counting and Label Inserting Device
  • Auto Jogger System
Product Description
CHM Machinery's computerized high-precision single rotary sheeter is specifically designed for paper mills, paper distributors, and printing houses. This advanced machine enhances slitting capacity while ensuring superior quality output.
The single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. The AC servo-driven control system ensures accurate and stable cutting performance.
This versatile machine handles paper weights from 60 to 550 gsm. For thin paper as light as 30 grams, it can simultaneously cut 8-12 rolls at speeds up to 100 cuts per minute. CHM Machinery's expertise ensures reliable performance with both thick and thin paper materials.
Technical Specifications
CHM Type CHM-1400 CHM-1700 CHM-1900
Cutting Method Top blade rotary, bottom blade fixed Top blade rotary, bottom blade fixed Top blade rotary, bottom blade fixed
Paper Weight Range 60-550 GSM 60-550 GSM 60-550 GSM
Cutting Accuracy ±0.5mm ±0.5mm ±0.5mm
Max Cutting Speed 300 sheets/min 300 sheets/min 300 sheets/min
Max Cutting Meter Speed 300 m/min 300 m/min 300 m/min
Cutting Length Range 450-1650mm 450-1650mm 450-1650mm
Max Scroll Diameter 1800mm 1800mm 1800mm
Stacking Height 1500mm (59") 1500mm (59") 1500mm (59")
Max Paper-Cutting Width 1400mm 1700mm 1900mm
Weight 12000kg 13000kg 14000kg
Dimensions (L×W×H) 12518mm × 3853mm × 2230mm 12518mm × 4153mm × 2230mm 12518mm × 4353mm × 2230mm
Machine Components & Operation
Single Rotary Paper Sheeting Machine

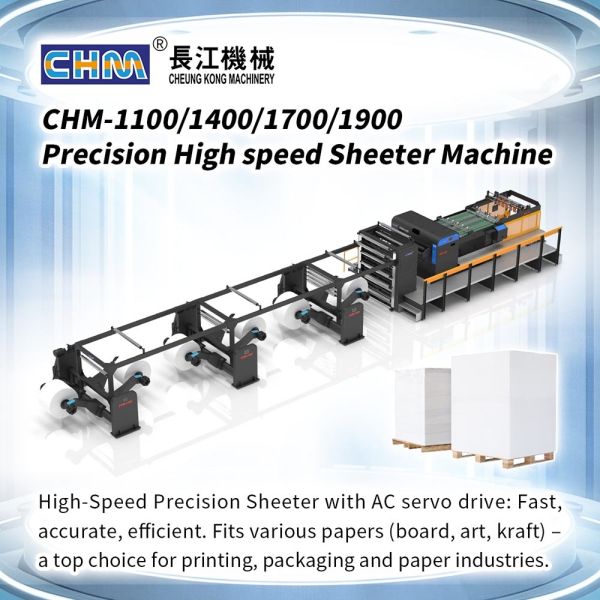

CHM Series Paper Sheeter Overview
Single Rotary Paper Sheeting Machine
Paper Sheeter in Operation
Single Rotary Paper Sheeting Machine
Close-up of Cutting Mechanism
Single Rotary Paper Sheeting Machine

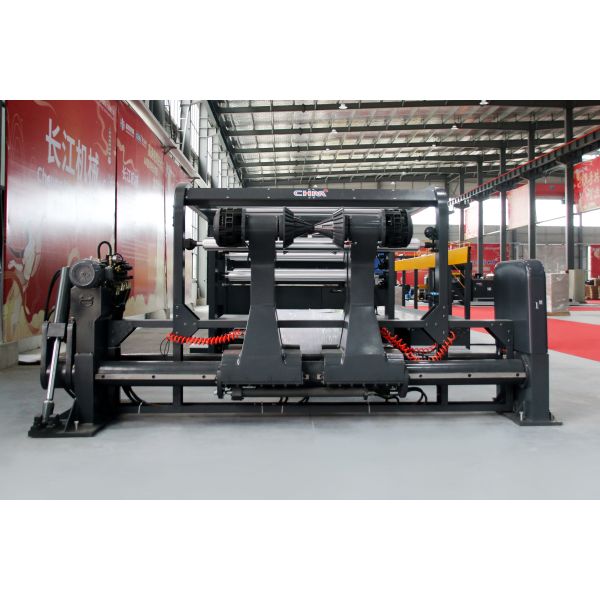

Hydraulic Shaft-less Unwind Station
Single Rotary Paper Sheeting Machine
Multi-disc Brake System
Single Rotary Paper Sheeting Machine
High Precision Single Rotary Sheet Cutter
Single Rotary Paper Sheeting Machine
Conveyor Unit
Single Rotary Paper Sheeting Machine
Auto Jogger System
Single Rotary Paper Sheeting Machine
Middle Slitting and Waste Edge Collecting System
Frequently Asked Questions
Our Cooperative Partners
Paper mills: Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd, etc.
What kind of quality service do you offer?
All commodity parts are guaranteed for one year. CHM Machinery provides lifetime maintenance. Outside the warranty period, we offer spare parts and services at preferential prices with prompt delivery.
How do we guarantee quality?
We always provide pre-production samples before mass production and conduct final inspections before shipment to ensure quality standards.
What products can you buy from us?
Paper sheeter machines, paper cutters, sheet machines, copy paper and packaging machines, cut-to-size paper and packaging machinery.
Why should you buy from us instead of other suppliers?
CHM is the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide at nearly 140,000 square meters. As sheet solution experts, we have the best R&D team and hold over 110 patents.
Who are we?
Our headquarters is located in Guangdong, China, established in 2010. We serve global markets including East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), and other regions worldwide. Our organization employs 101-200 professionals.
