180kg Load Automatic Palletizing System High Capacity 480V Robotic Palletizing Solutions
180kg Load Automatic Palletizing System High Capacity 480V Robotic Palletizing Solutions
180kg Load Automatic Palletizing System High Capacity 480V Robotic Palletizing Solutions
180kg Load Automatic Palletizing System High Capacity 480V Robotic Palletizing Solutions
Specifications
Certification :
CE ISO
Application :
Wire, PIPE, Sheet, Filament
Model Number :
PS-PET-D180
Key Selling Points :
High Productivity
Payment Terms :
T/T
Customization :
All parameters are fully customizable.
Price :
$22,000.00 – $29,800.00
Warranty :
1 Year
Supply Ability :
10 Sets/month
MOQ :
1SET
Delivery Time :
60-120 Days
Machine Type :
Pet Strip Production Line
Brand Name :
CHLOE
Voltage :
220V-480V
Packaging Details :
Wooden Box
Place of Origin :
Shanghai, China
Material :
PP PE LDPE HDPE
Description
High Capacity 180kg Load PET Strapping Palletizing Robot PS-PET-D180
Automatic Palletizing System
Product Overview

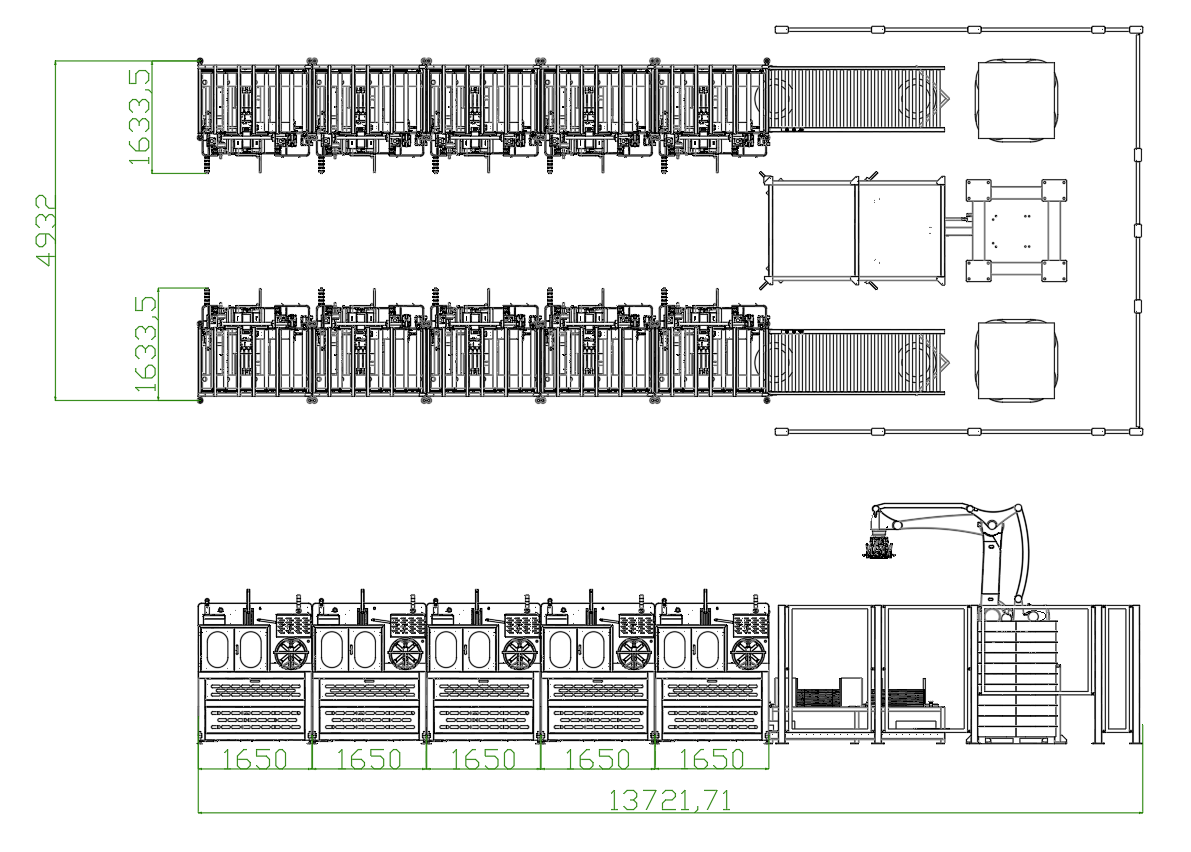

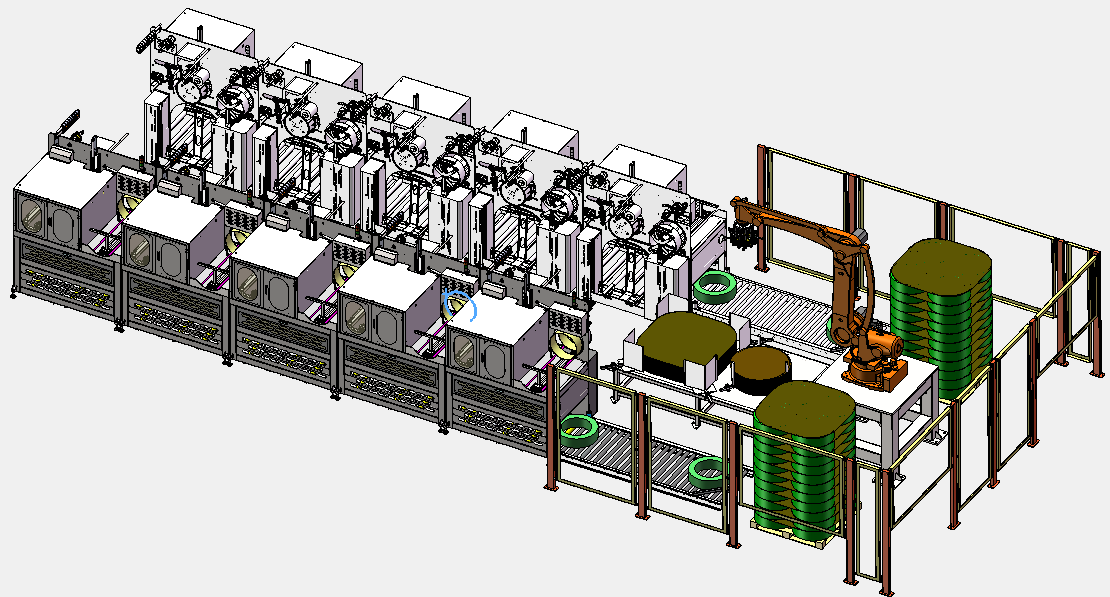

The PS-PET-D180 This automatic bi-directional palletizing system is specially designed for PET strapping roll production lines. Equipped with a heavy-duty robot with a 3200mm working radius and 180kg maximum load, it adapts to small and medium-sized strap rolls. It supports flexible 1-roll or 4-roll palletizing modes and automatic partition placement, with automatic pallet feeding and finished product output. Featuring stable pneumatic performance and reliable operation, the machine realizes full-process unmanned production and greatly improves line efficiency.

180kg Load Automatic Palletizing System High Capacity 480V Robotic Palletizing Solutions
Technical Parameters
Item Parameter
Overall Dimension 7950mm * 11500mm
Total Weight Approx. 4000KG
Power Supply 380V±10%, 50Hz
Power 15kW
Working Pressure 0.6-0.8MPa
Applicable Strap Rolls Inner diameter 405mm, outer diameter 500mm-800mm
Reach 3200mm
Max. Load 180kg
Robot Brand SAIFFO
Palletizing Mode Bi-directional palletizing (face-to-face production line), automatic pallet input, finished product automatic output; adjustable to 4 rolls/1 roll per layer, automatic partition placement per layer (configurable)
Key Features & Advantages
  • Max load 180kg and 3200mm working reach, wide working coverage
  • Equipped with SAIFFO robot, stable and high-precision operation
  • Bi-directional face-to-face dual-line palletizing design
  • Flexible palletizing mode: 1 roll or 4 rolls per layer adjustable
  • Automatic pallet feeding, finished output and partition placement
180kg Load Automatic Palletizing System High Capacity 480V Robotic Palletizing Solutions
Application Scenarios
  • Automated palletizing for PET strapping roll production lines
  • Medium and small specification packaging roll mass production
  • Dual-line face-to-face automated packaging workshops
  • Factories requiring flexible palletizing and unmanned operation
Packaging & Shipping
  • Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.
  • Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.
  • Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.
  • Accessories: Includes product certificate, packing list, and separately packed spare parts and components.
  • Final Inspection: Quality inspectors conduct final checks against export standards before shipment.
Frequently Asked Questions
Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.
Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.
What specifications of strapping does the machine support?
This machine is suitable for PET strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.
How to select the right machine model?
We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.
Do you provide installation and commissioning guidance?
We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.
Do you have a professional R&D team?
Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.
How do you guarantee equipment quality?
Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
