Specifications
Certification :
CE ISO
Configure :
Standard model, customizable
Model Number :
PETFA-SH
Characterization :
Fully Automatic Winding Machine
MOQ :
1SET
Delivery Time :
30-60 Days
Warranty :
1 Year
Payment Terms :
T/T
Price :
$75,00.00 – $11,500.00
Usage :
Winding of PET strapping band
Supply Ability :
30Sets/month
Brand Name :
CHLOE
Voltage :
220V/380V
Packaging Details :
Wooden Box
Place of Origin :
Shanghai, China
Motor :
Servo Motor
Description

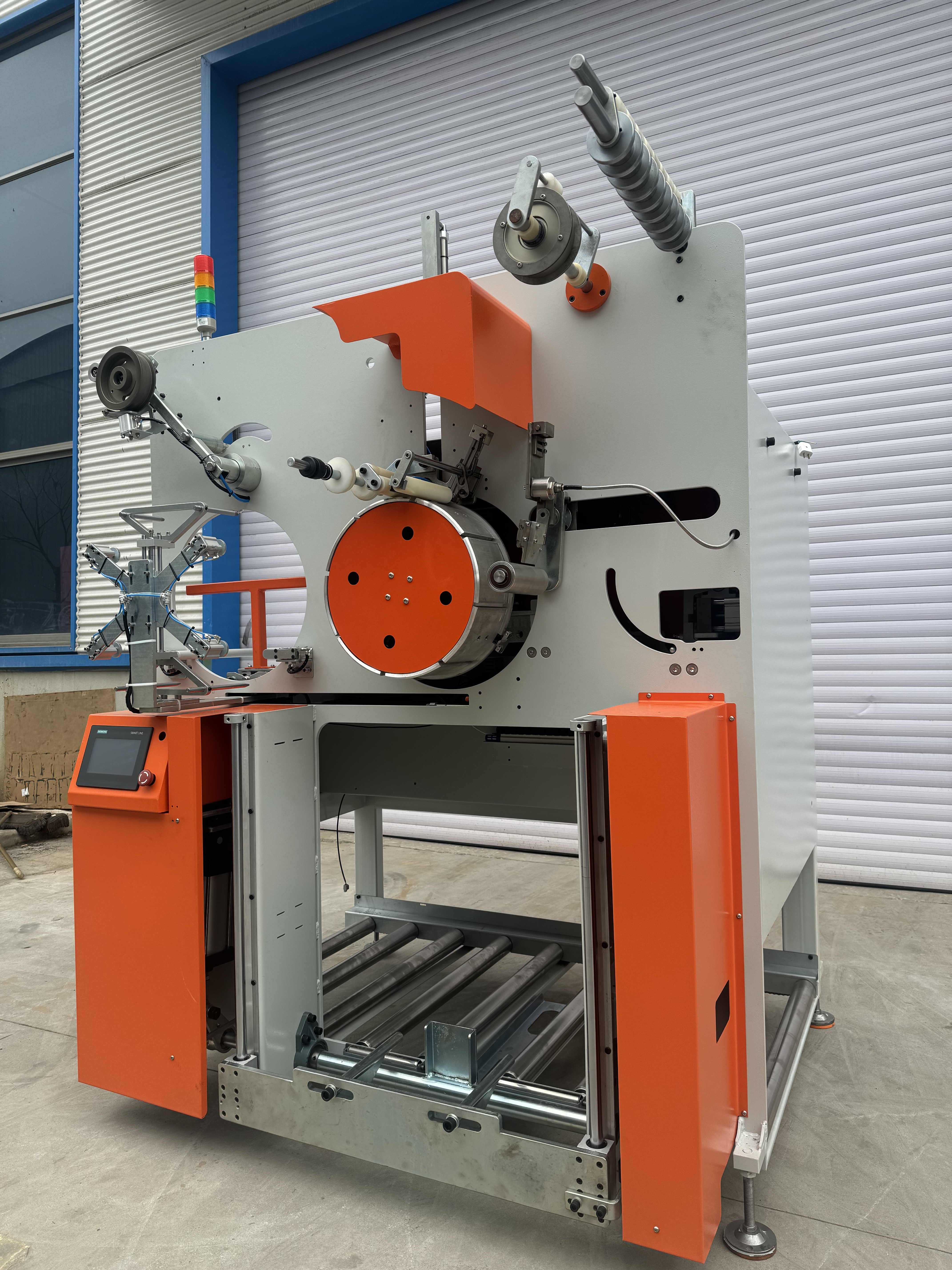

Heavy Duty PET Strap Winder Supporting Strap Widths Between 9 and 32 Millimeters and Maximum Coil Diameter of 800 Millimeters

Application

  • The lateral constant tension guiding mechanism can effectively eliminate strap stacking and wandering, ensuring finished coils with uniform compactness and even thickness.
  • Equipped with swing arm constant tension structure and rapid-release air shaft, the equipment runs smoothly and achieves outstanding production efficiency.
Item PETFA-SH
Strap Width 9-32mm
Strap Thickness 0.5-1.4mm
Strap Paper Core Width ≤200mm
Mandrel Diameter 406mm
Maximum Coil Diameter 800mm
Winding Speed 50-300 m/min
Number of Mandrels per Winder 1
Winding Servo Power 1500W
Alignment Servo Power 400W
Features & Advantages
1.Fitted with swing arm constant tension system and quick detachable air shaft, the machine runs smoothly and delivers superior production efficiency.

2.The lateral constant tension guide unit prevents strap overlapping and wandering, creating compact orderly coils with consistent tension all the time.

Product Overview

This PET strapping coiler fits straps of 9–32mm width and 0.5–1.4mm thickness and matches standard 406 paper cores. Its maximum winding outer diameter reaches 800mm, and both cored and coreless winding modes are available. Stable consistent tension keeps coils free of deviation and collapse.Combined with automatic film wrapping, strap cutting, coiling and conveying modules, the machine can be installed with an optional palletizer to realize unattended production.

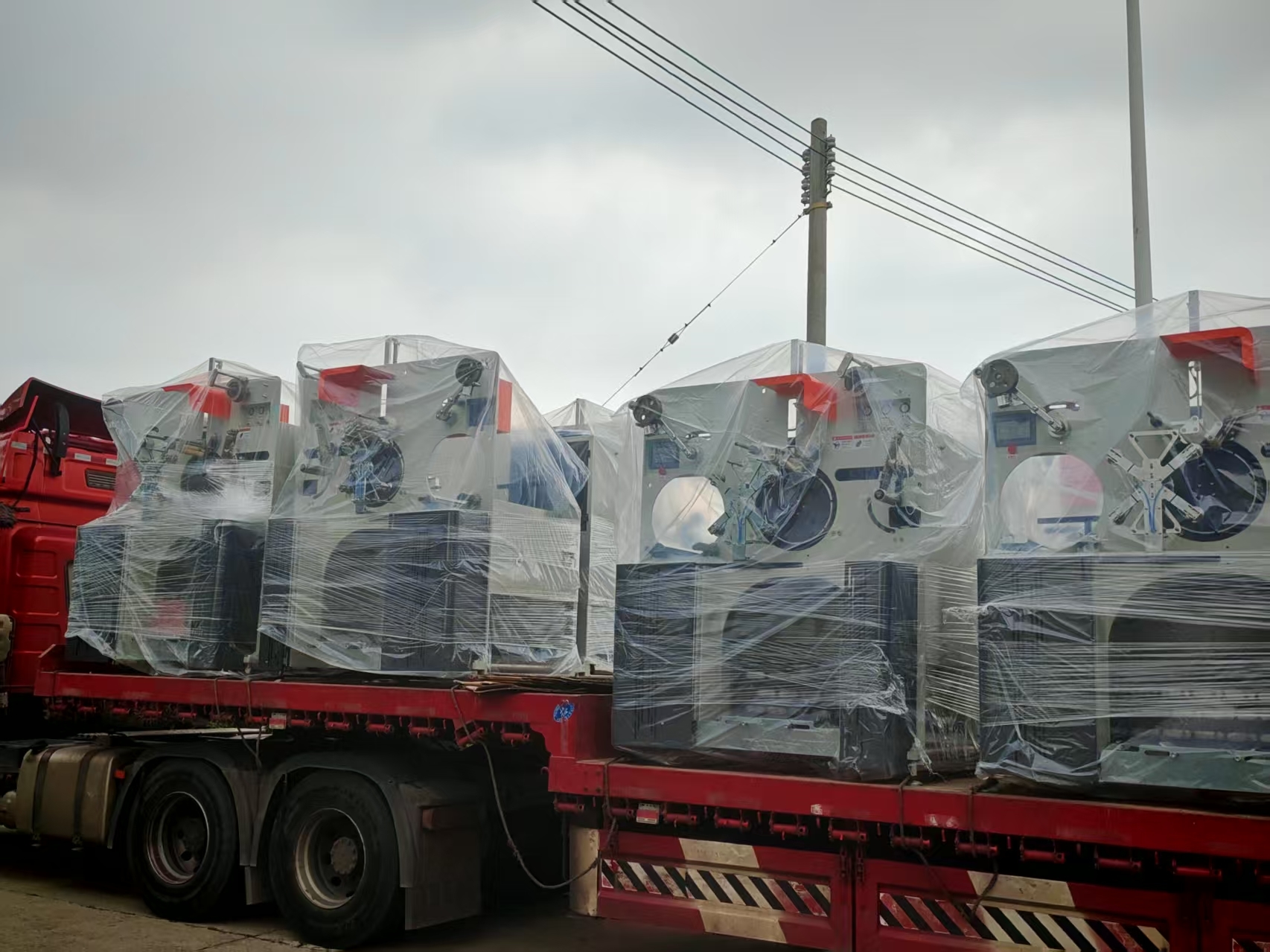

Packaging & Shipping

Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.

Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.

Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.

Accessories: Includes product certificate, packing list, and separately packed spare parts and components.

Final Inspection: Quality inspectors conduct final checks against export standards before shipment.

Packaging & shipping

Servo Motor Automatic Winding System 400W ISO Automatic Strapping Winder

Servo Motor Automatic Winding System 400W ISO Automatic Strapping Winder

FAQ
Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.

Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.

What specifications of strapping does the machine support?

This machine is suitable for PET strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.

How to select the right machine model?

We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.

Do you provide installation and commissioning guidance?

We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.

Do you have a professional R&D team?

Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.

How do you guarantee equipment quality?

Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
