Specifications
Certification :
CE ISO
Configure :
Standard model, customizable
Model Number :
PETSA-SS250
Characterization :
PET Strap Winding Machine
MOQ :
1SET
Delivery Time :
30Days
Warranty :
1 Year
Payment Terms :
T/T
Price :
$6,500.00 – $7,300.00
Usage :
Winding of PET strapping band
Supply Ability :
30Sets/month
Brand Name :
CHLOE
Voltage :
220V/380V
Packaging Details :
Wooden Box
Place of Origin :
Shanghai, China
Motor :
Servo Motor
Description
PET Strap Winder featuring servo powered winding and alignment systems delivering winding speeds from 50 to 300 meters per minute
Technical Specifications
Item PETFA-SH
Strap Width 9-20mm
Strap Thickness 0.5-1.4mm
Strap Paper Core Width 150-190mm
Mandrel Diameter 250mm
Maximum Coil Diameter 800mm
Winding Speed 50-300 m/min
Number of Mandrels per Winder 2
Winding Servo Power 5500W
Alignment Servo Power 400W

Key Features & Advantages
Custom-tailored air shafts accommodate diverse production demands. Dimensions can be adjusted to match clients’ paper cores and production conditions.

Great overall value. Reliable steady running minimizes faults and extends machine service time.


Product Overview
The double-station PET strap coiler is equipped with weight-based and length-based winding modes to meet versatile production needs. It matches 250mm inner diameter paper cores, applicable to core widths of 150–190mm and strap widths ranging from 9mm to 20mm.
Fitted with PLC intelligent touchscreen control system, this machine boasts easy operation, high coiling efficiency, accurate winding and stable operation, making it an ideal choice for standardized mass production of PET strapping bands.

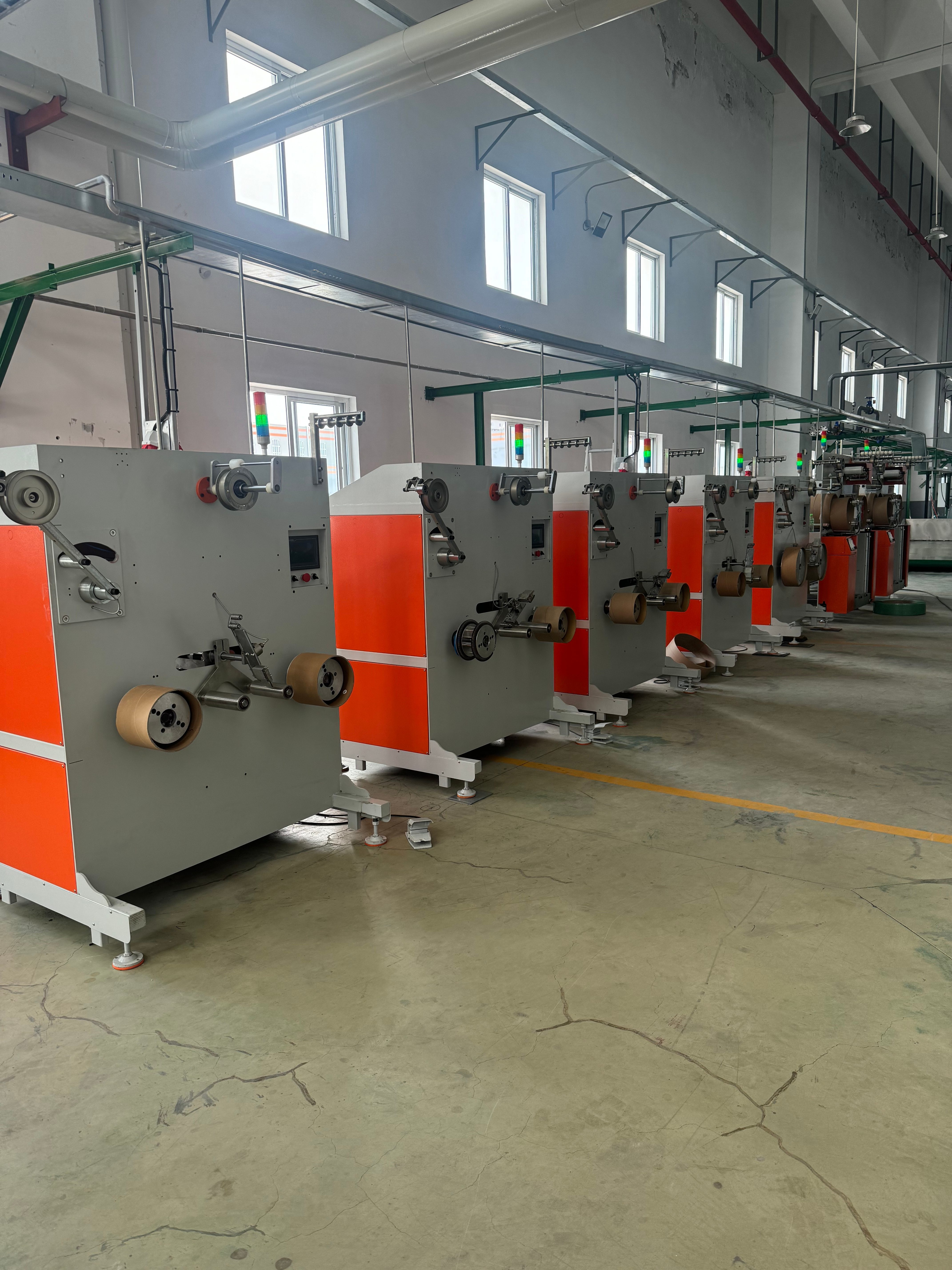

50 To 300M/Min PET Strap Winder Automatic Band Winding Machine 380V

Application Scenarios
·Coiling finished PET straps on production lines
·Intelligent packing strap manufacturing workshops

50 To 300M/Min PET Strap Winder Automatic Band Winding Machine 380V

50 To 300M/Min PET Strap Winder Automatic Band Winding Machine 380V

Packaging & Shipping

Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.

Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.

Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.

Accessories: Includes product certificate, packing list, and separately packed spare parts and components.

Final Inspection: Quality inspectors conduct final checks against export standards before shipment.

Frequently Asked Questions
Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.

Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.

What specifications of strapping does the machine support?

This machine is suitable for PET strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.

How to select the right machine model?

We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.

Do you provide installation and commissioning guidance?

We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.

Do you have a professional R&D team?

Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.

How do you guarantee equipment quality?

Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
