Specifications
Certification :
CE ISO
Configure :
Standard model, customizable
Model Number :
PETFA-SH
Characterization :
Fully Automatic Winding Machine
MOQ :
1SET
Delivery Time :
30-60 Days
Warranty :
1 Year
Payment Terms :
T/T
Price :
$75,00.00 – $11,500.00
Usage :
Winding of PET strapping band
Supply Ability :
30Sets/month
Brand Name :
CHLOE
Voltage :
220V/380V
Packaging Details :
Wooden Box
Place of Origin :
Shanghai, China
Motor :
Servo Motor
Description

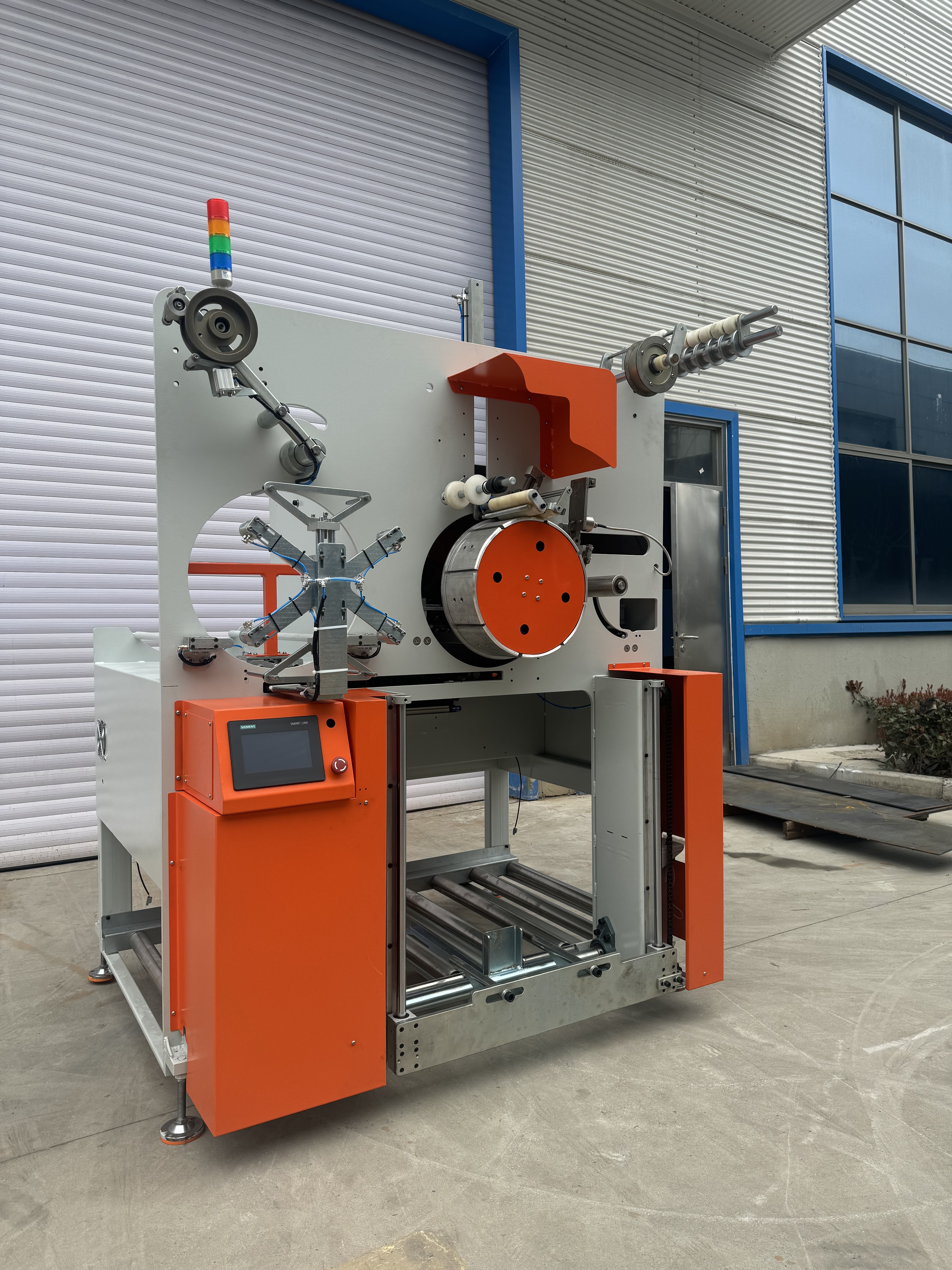

Heavy Duty PET Strap Winder Supporting Strap Widths Between 9 and 32 Millimeters and Maximum Coil Diameter of 800 Millimeters
Application
1 The side constant tension guide assembly avoids strap overlapping and shifting, producing tidy and solid coils with uniform tightness and thickness.
2 Adopting swing arm constant tension system and quick-release pneumatic shaft, the machine operates stably with high production efficiency.

Technical Specifications

Item PETFA-SH
Strap Width 9-32mm
Strap Thickness 0.5-1.4mm
Strap Paper Core Width ≤200mm
Mandrel Diameter 406mm
Maximum Coil Diameter 800mm
Winding Speed 50-300 m/min
Number of Mandrels per Winder 1
Winding Servo Power 1500W
Alignment Servo Power 400W
Features & Advantages

1.The machine is equipped with a swing arm constant tension mechanism and quick-release air shaft for stable operation and remarkable productivity.
2.The side constant tension guide assembly avoids strap stacking and shifting, producing tidy and compact coils with balanced tension throughout.

Product Overview

This PET strapping winder is suitable for straps with a width of 9–32 mm and thickness of 0.5–1.4 mm, compatible with 406 paper cores. It has a maximum winding outer diameter of 800 mm and supports both core and coreless winding modes. The finished coils feature uniform tension without deviation or collapse. Integrated with automatic film wrapping, strap cutting, coiling and conveying functions, the machine can be fitted with an optional palletizing system to achieve unmanned production.

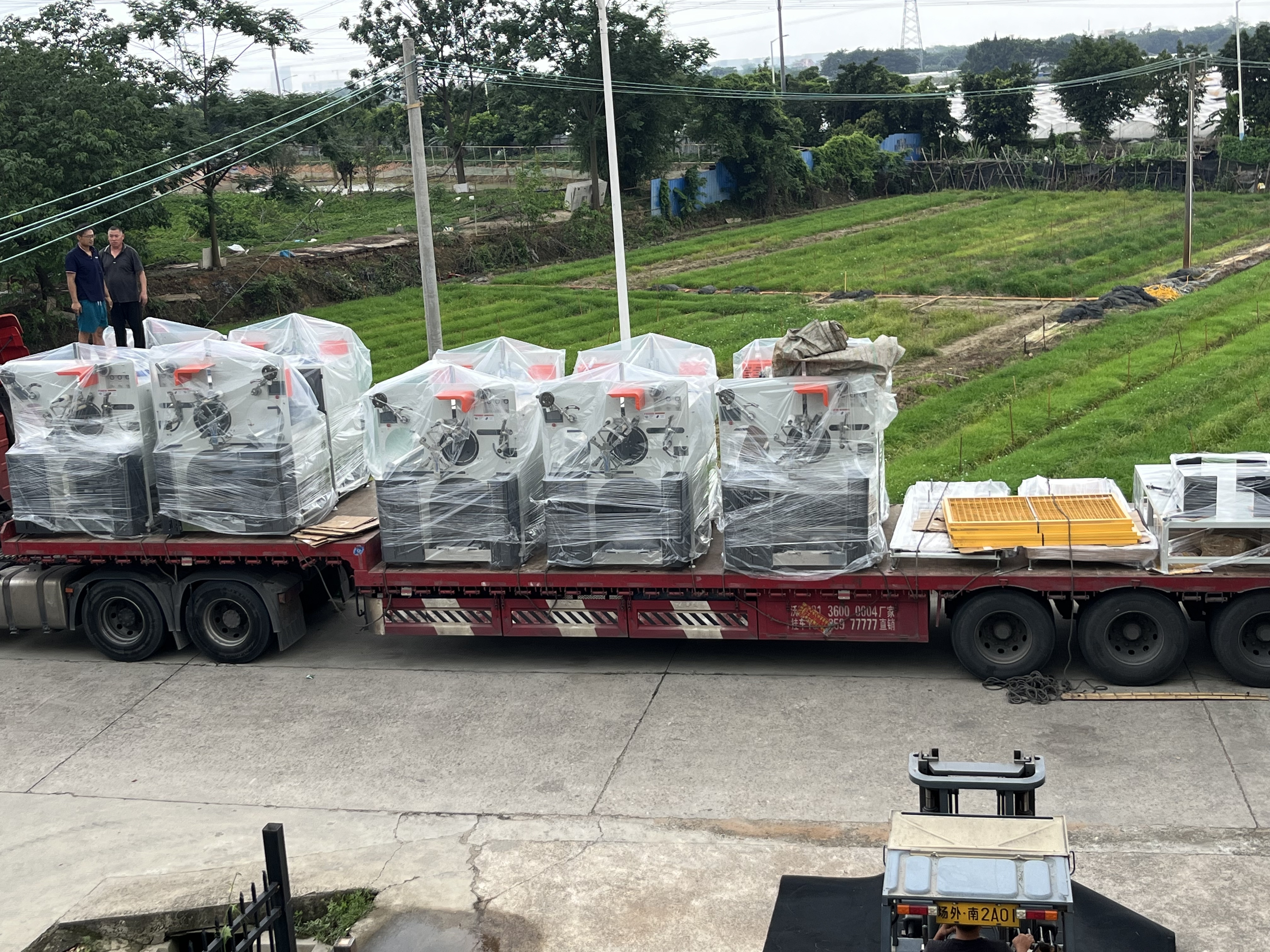

Packaging & Shipping

Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.

Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.

Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.

Accessories: Includes product certificate, packing list, and separately packed spare parts and components.

Final Inspection: Quality inspectors conduct final checks against export standards before shipment.

Packaging & shipping

Vibration Resistant PET Strap Winder 220V 380V Plastic Winding Machines

Vibration Resistant PET Strap Winder 220V 380V Plastic Winding Machines

FAQ
Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.

Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.

What specifications of strapping does the machine support?

This machine is suitable for PET strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.

How to select the right machine model?

We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.

Do you provide installation and commissioning guidance?

We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.

Do you have a professional R&D team?

Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.

How do you guarantee equipment quality?

Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
