Specifications
Model Number :
MH-508RGB800-A
Place of Origin :
Guangdong, China
Brand Name :
XMH
Price :
To be negotiated
Certification :
ROHS
MOQ :
10 bags
Supply Ability :
1000000pcs PER DAY
Packaging Details :
500PCS/BAG Anti static bag+Carton
Type :
LED
Package Type :
Through Hole
Max. Forward Voltage :
3.4
Max. Reverse Voltage :
5
Max. Forward Current :
30
Max. Reverse Current :
5ua
emitting color :
red+blue+green
Package :
DIP
Lens color :
Waterclear
Package quantity :
500pcs
Description
Product Description of 257mm DIP LED

Outline dimension of 257mm DIP LED:

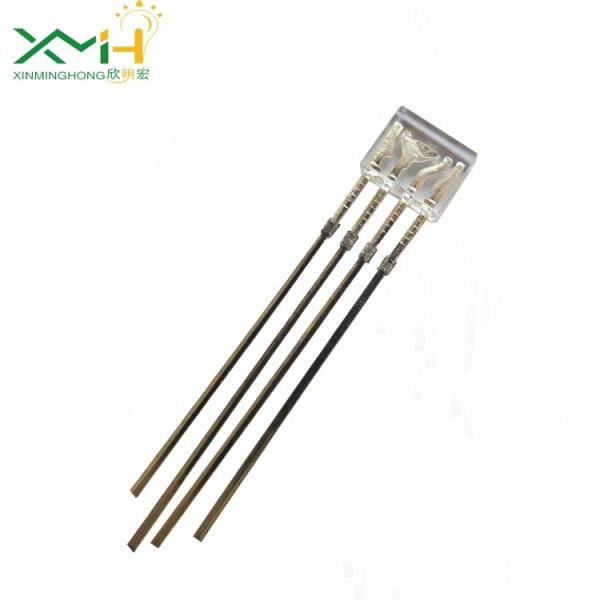

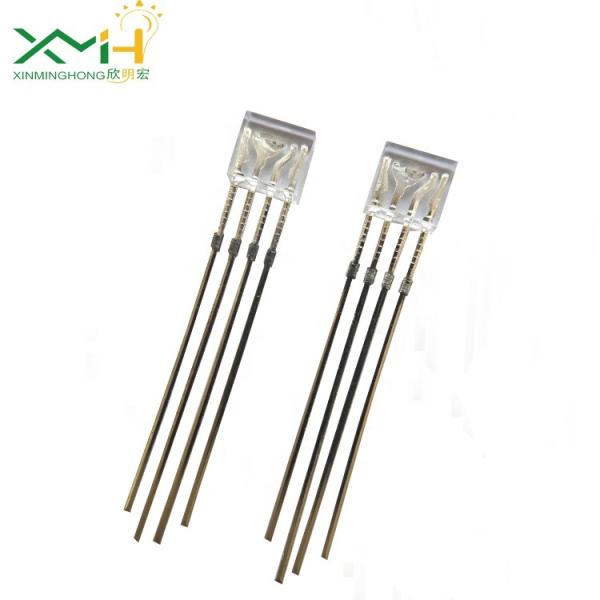

Rectangular 2*5*7mm RGB Through Hole LED Clear LED Diode

Feature of 257mm DIP LED:

2x5x7mm throught hole LED

Avaliable color:red yellow blue green RGB etc.

Low power consumption

Small view angle

Long lifespan

Super brightness

Package:500pcs/bag

ROHS Compliant

Application of 257mm DIP LED:

Ideal for backlight and indicator

Various colors and lens types available

Electrical characteristics of 257mm DIP LED:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd red 620 630 nm
green 520 530
blue 464 474
Forward voltage If=20mA Vf red 2.0 2.2 2.4 v
green 3.0 3.2 3.7
blue 3.0 3.2 3.7
Luminous intensity If=20mA Iv red 2000 3000 mcd
green 3000 4000
blue 2000 3000
Viewing angle at 50% lv If=10mA 2θ1/2 35 Deg
Resverse current Vr=5v Ir 10 mA

Related Products

Hot sales

1

Dual color red and green 3227 bi-color smd led for charger

2

Hot selling promotion 0805 smd led diode use for car LED display

Certifications

Packaging & Shipping

PACKAGE:

Standard export carton packing. 1000pcs/bag 30bags/box

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Company Information

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

MH provides excellent sales service and strong technical supports to our customers.

FAQ

Why choose us?

1,Your inquiry for our products or prices will be replied in 24 hours

2,Protection of your sales area,ideas of design and all your private in formation.

3,We guarantee both quality and service regardless of your order qty.

4,Advanced equipment and goods materials:ASM machine good chip and expoxy resin.

5,If there is LED failure, how can you support?

A:Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!

6,Would you offer free samples?

A:Yes, We would offer free samples

7,What about the lead time?

A:It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
