Specifications
Model Number :
MH-5084UYC-590
Place of Origin :
Guangdong, China
Brand Name :
xinminghong
Price :
To be negotiated
Certification :
ROHS
MOQ :
1000pcs
Packaging Details :
1000PCS/BAG Anti static bag+Carton
Supply Ability :
100000pcs per day
Type :
LED
Max. Forward Voltage :
2.2
Max. Reverse Voltage :
5
Max. Forward Current :
30
Max. Reverse Current :
5uA
Emitting color :
Yellow
Lens color :
Yellow Diffused
Power :
0.06W
Size :
5mm
Shape :
Round
Description

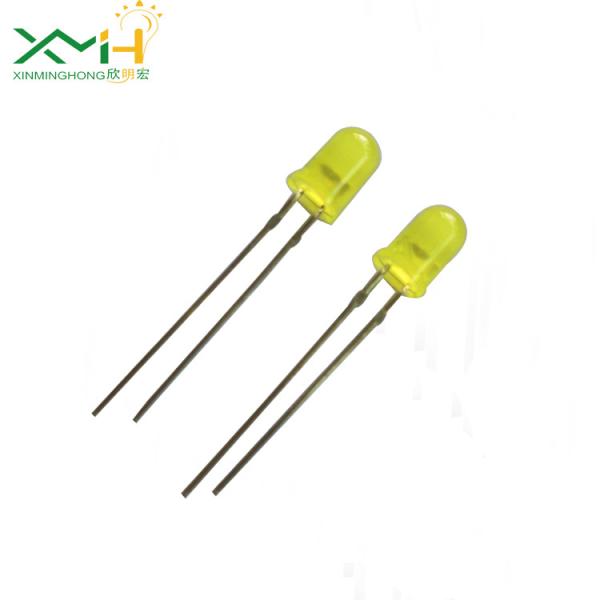

Product Description of 5mm DIP LED

Outline dimension of 5mm DIP LED:

Yellow Diffused 588-591nm 15deg LED Indicator Diode 300-420mcd Low Power

Feature of 5mm DIP LED:

5mm yellow diffused DIP LED

Avaliable color:red yellow blue green RGB etc.

Low power consumption

Small view angle

Long lifespan

Package:1000pcs/bag

ROHS Compliant

Application of 5mm DIP LED:

Ideal for backlight and indicator

Various colors and lens types available

Absolute Maximum rating of 5mm DIP LED:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 90 mW
Operationg temperature Top -30∼+80 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+100 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of 5mm DIP LED:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 588 --- 591 nm
Forward voltage If=20mA Vf 1.8 2.0 2.2 v
Luminous intensity If=20mA Iv 300 420 mcd
Viewing angle at 50% lv If=10mA 2θ1/2 15 Deg
Resverse current Vr=5v Ir 5 mA
