Specifications
Brand Name :
XIN MING HONG
Model Number :
MH-3084QWC-W11
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
To be negotiated
Supply Ability :
1000000PCS PER DAY
Delivery Time :
8-10 working days
Packaging Details :
1000pcs/reel Anti static bag+carton
Package Type :
3mm round type
Color :
All colors are avaliable
View angle :
30 degree
Forward current :
20 mA
Forward Voltage :
3.3v
Power :
0.06W
Reference :
Data sheet
Lens :
Transparent or white diffused
Description
Product Description of 3mm Lamp LED

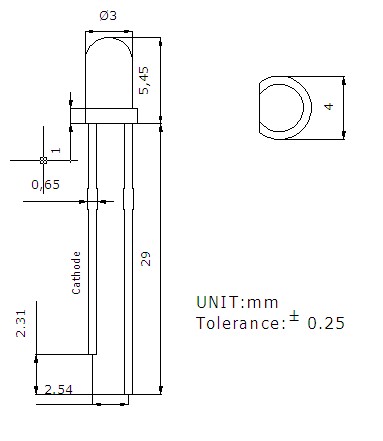

Outline dimension of 3mm Lamp Led:

3mm round led red yellow blue green white

Feature of 3mm Lamp Led:

The series is specially designed for applications requiring higher brightness

The led lamps are available with different colors, intensities..

Avaliable color:red yellow blue green RGB etc.

Low power consumption

Wi view angle

Long lifespan

Package:1000pcs/bag

ROHS Compliant

Application of 3mm Lamp Led:

TV set

Monitor

Telephone

Computer

Ideal for backlight and indicator

Absolute Maximum rating of 3mm Lamp Led:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 90 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of 3mm Lamp Led:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 520 --- 530 nm
Forward voltage If=20mA Vf 2.8 3.0 3.4 v
Luminous intensity If=20mA Iv 3000 4000 mcd
Viewing angle at 50% lv If=10mA 2θ1/2 30 Deg
Resverse current Vr=5v Ir 5 mA
Related Products

Hot sales

Certifications
3mm round led red yellow blue green white

Packaging & Shipping

PACKAGE:

Standard export carton packing. 1000pcs/bag 30bags/box

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

3mm round led red yellow blue green white
Company Information

3mm round led red yellow blue green white

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

MH provides excellent sales service and strong technical supports to our customers.

Our Advantages
3mm round led red yellow blue green white

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience

FAQ

Why choose us?

1,Your inquiry for our products or prices will be replied in 24 hours

2,Protection of your sales area,ideas of design and all your private in formation.

3,We guarantee both quality and service regardless of your order qty.

4,Advanced equipment and goods materials:ASM machine good chip and expoxy resin.

5,If there is LED failure, how can you support?

A:Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!

6,Would you offer free samples?

A:Yes, We would offer free samples

7,What about the lead time?

A:It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
