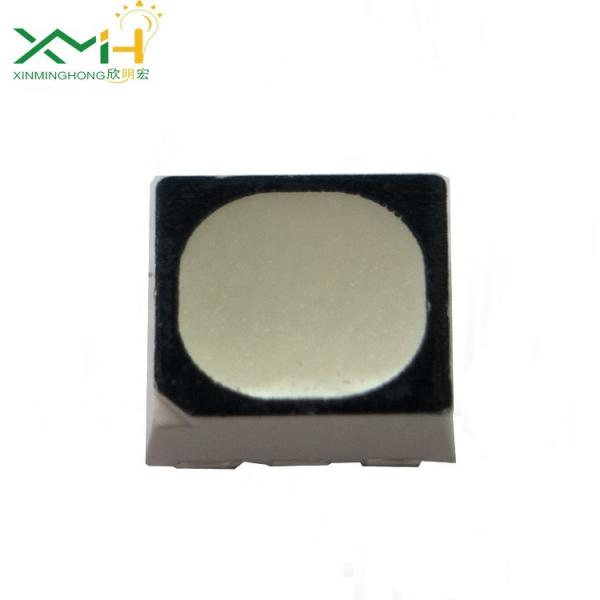

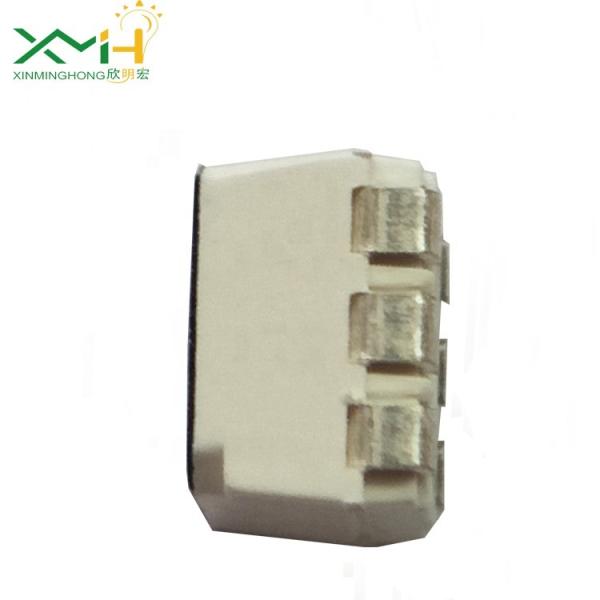

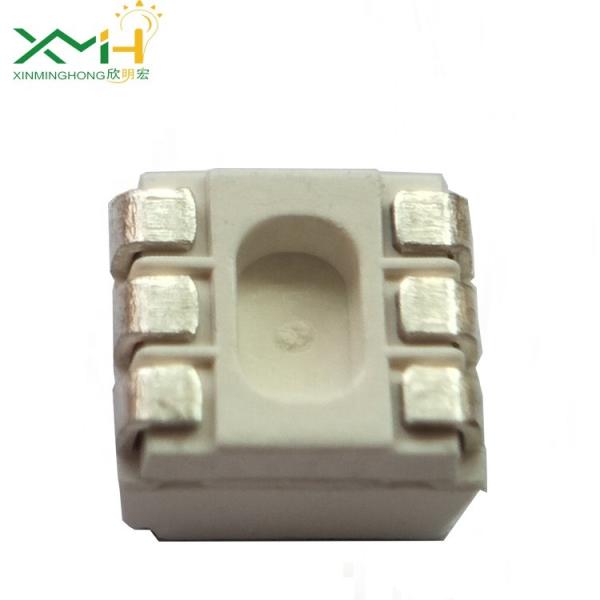

Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED
Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED
Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED
Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED
Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED
Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED
Specifications
Place of Origin :
Guangdong, China
Brand Name :
XINMINGHONG
Certification :
RoHS
Price :
To be negotiated
MOQ :
2000 pieces
Supply Ability :
100000pcs per day
Packaging Details :
2000pcs/bag
Type :
SMD LED
Chip Material :
AlGaInP
Emitting Color :
Tri-Color(Red-Blue-Green)
Luminous Intensity :
600-800 1400-1600 300-500
Optical Attenuation(%) :
0.001
Power :
0.09W
Power Dissipation :
0.09
Viewing Angle(°) :
120
Color Rendering Index(Ra) :
80
Dominant wavelength :
620-625 520-525 465-470
Operating Temperature(℃) :
-40 - 85
Storage Temperature(℃) :
-40 - 85
Description

Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED

Product Description of 3535 smd led

Absolute Maximum rating of 3535 smd led:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 90 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of 3535 smd led:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd red 620 625 nm
green 520 525
blue 465 470
Forward voltage If=20mA Vf red 2.0 2.2 v
green 3.0 3.2
blue 3.0 3.2
Luminous intensity If=20mA Iv red 600 800 mcd
green 1400 1600
blue 300 500
Viewing angle at 50% lv If=10mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 10 mA

Outline dimension of 3535 smd led:

Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED

Feature of 3535 smd led:

3.5mmx3.5mm SMD LED

1. Low power consumption

2. Wide view angle

3. Long lifespan

4. ROHS Compliant

Application of 3535 smd:

Ideal for backlight and indicator

Various colors and lens types available

Related Products

Hot sales

Company Information

Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

XMH provides excellent sales service and strong technical supports to our customers.

Our Advantages
Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience

FAQ

Why choose us?

Q1: Are you a factory or a trade company?
A1: We're professional manufacturer of Chip SMD LED, providing one-stop OEM & ODM service to all partners all over the world.

Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and check quality.

Q3: How do you ship the goods and how long does it take to arrive?
A3: We usually ship by DHL, UPS express, FedEx or TNT. It usually takes 5-7 days to arrive.

Q4: What about the lead time?
A4: It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.

Q5: If there is LED failure, how can you support?
A5: Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!

Packaging & Shipping

PACKAGE:

Single package size: 21X24X1 cm

Package Type: 2000pcs / reel, 40bags / carton & According To The Request.

Inner packaging: Anti-static Bag Vacuum Packaging

Outer packaging: Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Full RGB Color 3535 SMD LED Diode 2000pcs High Power SMD LED
