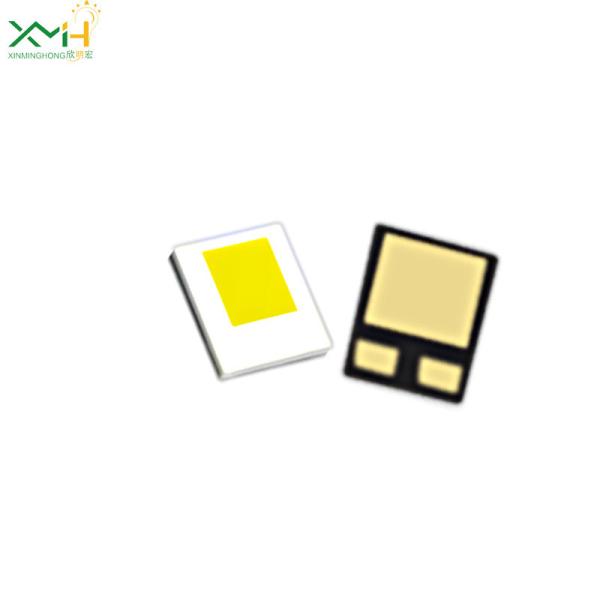

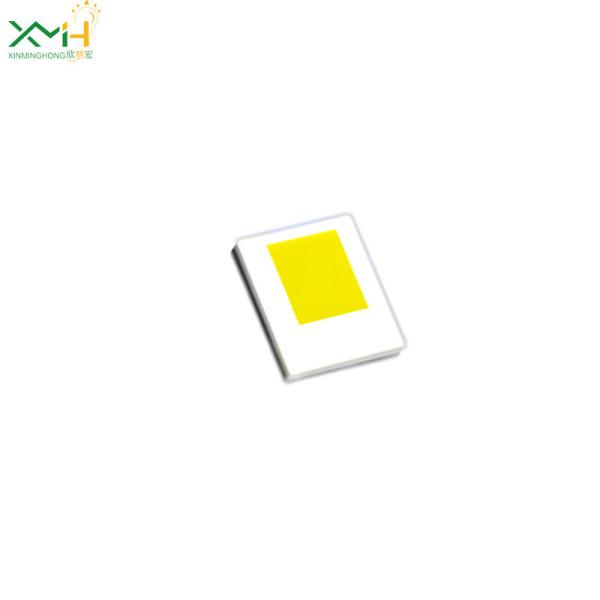

High Power 2016 White LED Diode With Ceramic Plate 3W 700mA 280-320LM
High Power 2016 White LED Diode With Ceramic Plate 3W 700mA 280-320LM
High Power 2016 White LED Diode With Ceramic Plate 3W 700mA 280-320LM
High Power 2016 White LED Diode With Ceramic Plate 3W 700mA 280-320LM
Specifications
Brand Name :
XINMINGHONG
Certification :
RoHS
Place of Origin :
China
MOQ :
4000 pieces
Price :
To be negotiate
Supply Ability :
100000pcs per day
Packaging Details :
4000 pieces/reel
Brand name :
XINMINGHONG
Place of origin :
Guangdong ,China
Type :
2016 Ceramic White 1-3W Top SMD LED
Chip brand :
San'An
Wire material :
Gold thread
Support material :
Ceramic plate
Luminous color :
White
Luminous flux :
280-320LM
Color Temperature :
6000-7000K
Dimension specification :
2.0*1.6mm
Forward current :
700mA
Power Dissipation :
1-3W
Forward voltage :
3.0-3.2V
Viewing Angle :
120deg
1000 hours regular aging :
100%
Description

High Power 2016 White Ceramic Diode 3W 700mA 280-320LM Top SMD LED

3W 2016 White Ceramic High Power Diode 700mA 280-320LM Top SMD LED

Product Category of 2016 smd led

Absolute Maximum rating of 2016 smd led:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 700 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 3000 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 1.5 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of 2016 smd led:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
color temperature If=700mA λd 6000 -- 7000 k
Forward voltage If=700mA Vf 3.0 -- 3.2 v
Luminous flux If=700mA Iv 280 -- 320 lm
Viewing angle at 50% lv If=700mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 10 mA


Outline dimension of 2016 smd led:

High Power 2016 White LED Diode With Ceramic Plate 3W 700mA 280-320LM

Feature of 2016 smd led:

1. Small size

2. Long service life

3. high brightness, good light color consistency

4. silicone encapsulation, in line with environmental protection lead free process product requirements.

Application of 2016 smd led:

1. Landscape lighting

2. Interior lighting

3. Outdoor lighting

4. Car lighting

5. Security monitoring

6. Plant lighting

7. Smart lighting

8. Decorative lighting, etc

Related Products

Hot sales

Company Information

High Power 2016 White LED Diode With Ceramic Plate 3W 700mA 280-320LM

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

XMH provides excellent sales service and strong technical supports to our customers.

Our Advantages
High Power 2016 White LED Diode With Ceramic Plate 3W 700mA 280-320LM

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience

1. Reply your inquiry within 12 working hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. Customized design is available.OME and ODM are welcomed
4. Strict quality control procedures before shipment.
5. Delivery the goods to our customer all over the world with speed and precision.

FAQ

Why Choose US?

Q1: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Chip SMD LED, providing one-stop OEM & ODM service to all partners all over the world.

Q2: How does your factory do regarding quality control?
A: Quality is priority.Quality is the sole criterion for testing companies

Q3: Is there any discount for bulk order?

A3: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q4: How to proceed an order for led light?
A4: First let us know your requirements or application. Secondly, we will quote according to your request or our suggestion. Third, the customer confirms the sample and orders the deposit. Fourthly, we will arrange production immediately.

Q5: How about the quality of the leds?

A5: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwidesince the year 2004.we offer 2 years warranty

Packaging & Shipping

PACKAGE:

Single package size: 21X24X1 cm

Package Type: 4000pcs / reel, 40bags / carton & According To The Request.

Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
