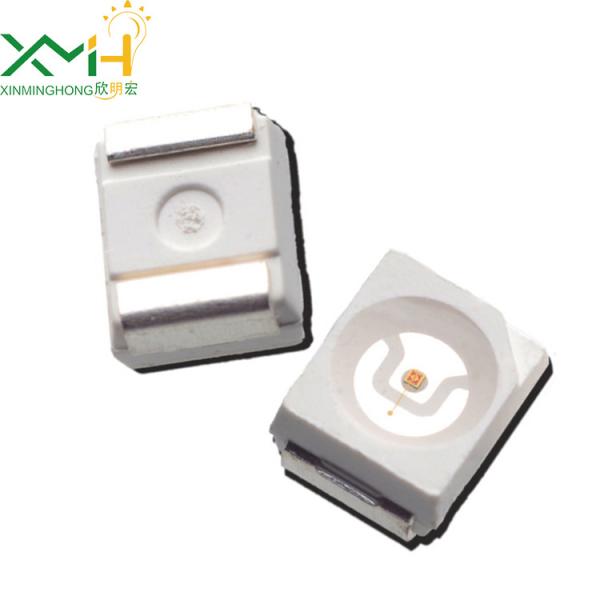

Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED
Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED
Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED
Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED
Specifications
Brand Name :
XINMINGHONG
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
2000 pieces
Price :
To be negotiated
Supply Ability :
100000pcs per day
Packaging Details :
2000pcs/reel Reel+Anti-static bag+carton
Type :
TOP SMD LED
Chip Material :
AlGaInP
Chip brand :
SanAn
Emitting Color :
Orange
Power :
0.06W
Color Temperature :
600-610nm
Light intensity :
600-800mcd
Optical Attenuation(%) :
0.001
Forward voltage :
2.0-2.2V
Power Dissipation :
0.06
Viewing Angle(°) :
120
Color Rendering Index(Ra) :
80
Operating Temperature(℃) :
-40 - 85
Storage Temperature(℃) :
-40 - 85
Description

3528 SMD LED Wide Angle 2.2V 600-610nm Orange 600-800mcd Surface Mounted Diode LED

2.2V 600-610nm Orange 600-800mcd Surface Mounted Diode LED Wide Angle 3528 SMD LED

Product Category of 3528 smd led

Absolute Maximum rating of 3528 smd led:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 60 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of 3528 smd led:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 600 --- 610 nm
Forward voltage If=20mA Vf 2.0 --- 2.2 v
Luminous intensity If=20mA Iv 600 --- 800 mcd
Viewing angle at 50% lv If=10mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 10 mA

Outline dimension of 3528 smd led:

Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED

Feature of 3528 smd led:

1, thin packaging, vertical heat dissipation structure

2, mature process, high market versatility

3, high sex value, long life

4. Applicable to all SMT assembly and welding processes

5, lead-free packaging, in line with ROSH

Application of 3528 smd led:

1. LED lighting products

2. LED decoration products

3. LED backlight products

4. Lighting

5. Backlight display (LCD, billboard)

Related Products

Hot sales

Certifications
Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED

Company Information

Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

XMH provides excellent sales service and strong technical supports to our customers.

Our Advantages
Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience

1. Reply your inquiry within 12 working hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. Strict quality control procedures before shipment.
4. Customized design is available.OME and ODM are welcomed
5. Delivery the goods to our customer all over the world with speed and precision.

FAQ

Why choose us?

Q1: Are you a manufacturer or a trading company ?

A1: We're professional manufacturer of Chip SMD LED, with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory. Our products have exported worldwidesince the year 2004.

Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and check quality.

Q3: Is there any discount for bulk order?

A3: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q4: Will you deliver the right goods as ordered? How can I trust you?
A4: Yes, we will. The core of our company culture is honesty and credit. We warm welcome customer or his agent or his 3nd party come to our factory for detail checking. We protect customer's design, sales area competiton, ideas of design and all of your private information.

Packaging & Shipping

PACKAGE:

Single package size: 21X24X1 cm

Package Type: 2000pcs / reel, 50bags / carton & According To The Request.

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Wide Angle 2.2V 600-610nm 3528 SMD LED , Orange 600-800mcd Surface Mounted Diode LED
