Dip RoHS Common Anode Diffusion Through Hole Led Milky White 30 Degree 5mm
Dip RoHS Common Anode Diffusion Through Hole Led Milky White 30 Degree 5mm
Dip RoHS Common Anode Diffusion Through Hole Led Milky White 30 Degree 5mm
Dip RoHS Common Anode Diffusion Through Hole Led Milky White 30 Degree 5mm
Specifications
Brand Name :
XIN MING HONG
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1 bag
Price :
To be negotiated
Supply Ability :
100000pcs per day
Packaging Details :
1000pcs/bag
Model Number :
MH-5084RBC-LT5
Warranty(Year) :
5-Year
Type :
5mm LAMP LED
Lifespan (hours) :
50000
Working Time (hours) :
50000
Chip Material :
INGAN
Emitting Color :
Red and Blue
Power :
0.06W/0.09W
Input Voltage(V) :
Red:1.8-2.4/Blue:2.8-3.4
Dominant wavelength :
Red：620-625nm/Blue：465-470nm
Luminous intensity :
Red：400-600mcd/Blue：650-800mcd
Optical Attenuation(%) :
0.01
Viewing Angle(°) :
30
Color Rendering Index(Ra) :
80
Operating Temperature(℃) :
-40 - 85
Storage Temperature(℃) :
-40 - 85
Current :
20ma
Forward Current :
20 mA
Max. Reverse Current :
10 uA
Lens Color :
Diffuse
Media Available :
Datasheet, Photo
Description

Hot Sale Factory Delivery Dip RoHS Certified Common Anode Diffusion Milky White 30 Degree Through Hole led lampe 5mm

Product Description of 5mm dual color lamp led

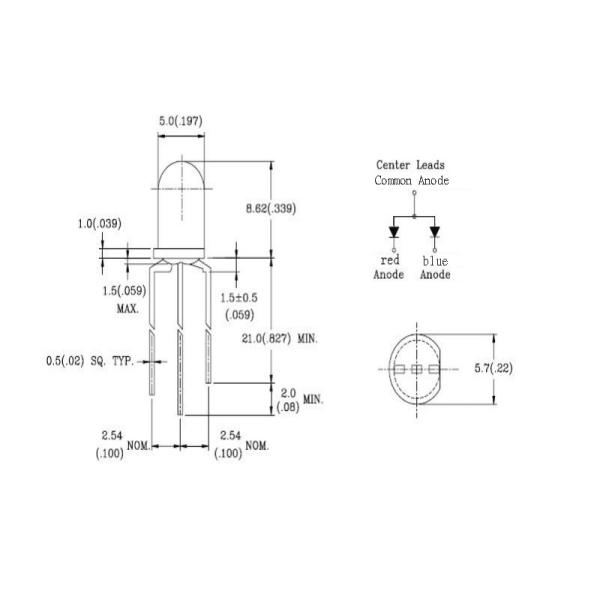

Outline dimension of 5mm dual color lamp led:

Dip RoHS Common Anode Diffusion Through Hole Led Milky White 30 Degree 5mm

Feature of 5mm dual color lamp led:

5mm bi-color DIP LED

Avaliable color:red yellow blue green RGB etc.

1. High brightness, low power dissipation

2. Energy saving and environmental protection, low power consumption.

3. Long service life and high reliability.

4. Easy to use and install.

5. Strong anti-static ability.

6. RoHS certification.

Packing :1000 pcs/bag

Application of 5mm dual color lamp led:

Ideal for backlight and indicator

Home Decor

Indication of path

Logo of advertisement

Channel signal mark

Exhibition hall decoration

Window prop

High-end entertainment places such as decorative lighting.

Various colors and lens types available

Absolute Maximum rating of 5mm dual color lamp led:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 90 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of 5mm dual color lamp led:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 620 --- 625 nm
465 470
Forward voltage If=20mA Vf 1.8 2.0 2.4 v
2.8 3.0 3.4
Luminous intensity If=20mA Iv 400 600 mcd
650 800
Viewing angle at 50% lv If=10mA 2θ1/2 30 Deg
Resverse current Vr=5v Ir 10 mA
