Specifications
Productname :
High Frequency Flyback Transformer
Place of Origin :
DongWan
Insulationclass :
Class B or Class F
Model Number :
T103
Isolationvoltage :
3000V AC
Price :
￥0.98-1.98Piece,1000-10000pcs
Application :
Switching power supplies, LED drivers, battery chargers
Outputvoltage :
5V - 400V DC
Supply Ability :
10000 pcs per day
Powerrating :
5W - 100W
Efficiency :
85% - 95%
MOQ :
100
Delivery Time :
7-15 wark days
Regulatorycompliance :
UL, RoHS, CE
Dimensions :
Varies by model, typically 20mm x 20mm x 15mm
Payment Terms :
T/T
Operatingtemperature :
-40°C to +85°C
Windingtype :
Copper wire
Corematerial :
Ferrite
Certification :
U/L cUL CE ISO9001:2015 IATF16949:2016 ROHS CQC
Mountingtype :
PCB mount
Brand Name :
CHIPSEN
Inputvoltage :
85V - 265V AC
Packaging Details :
Small transformers: blister tray packaging + export cartons; Large transformers packed on wooden pallets. Custom packaging available upon request.
Frequencyrange :
20 kHz - 500 kHz
Description
High Stability Precision Air Coil for Power Electronics and Filters
Product Overview

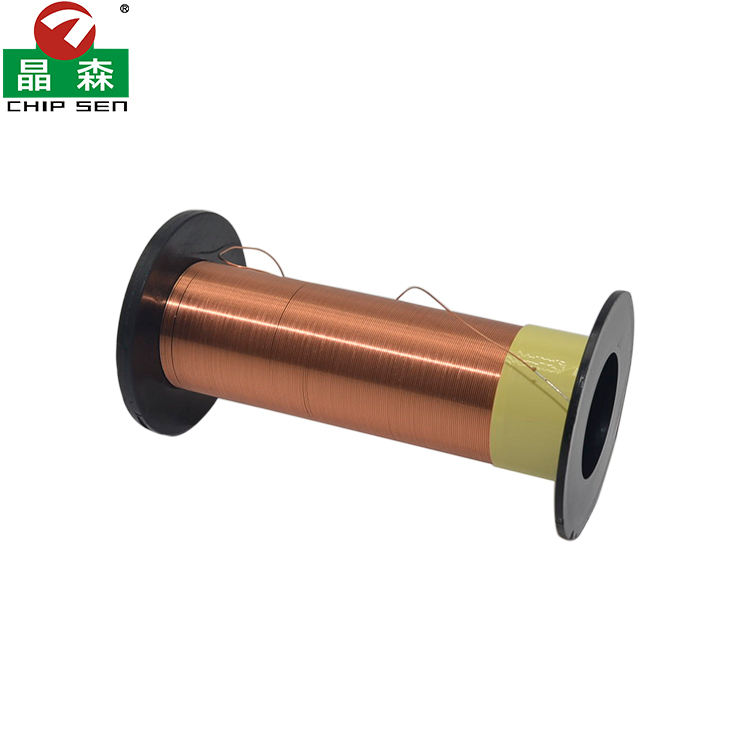

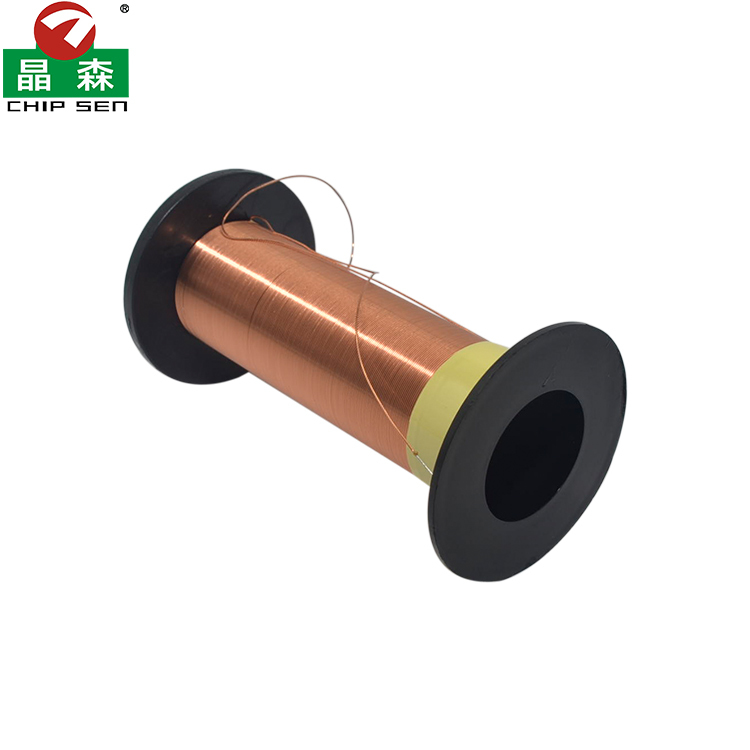

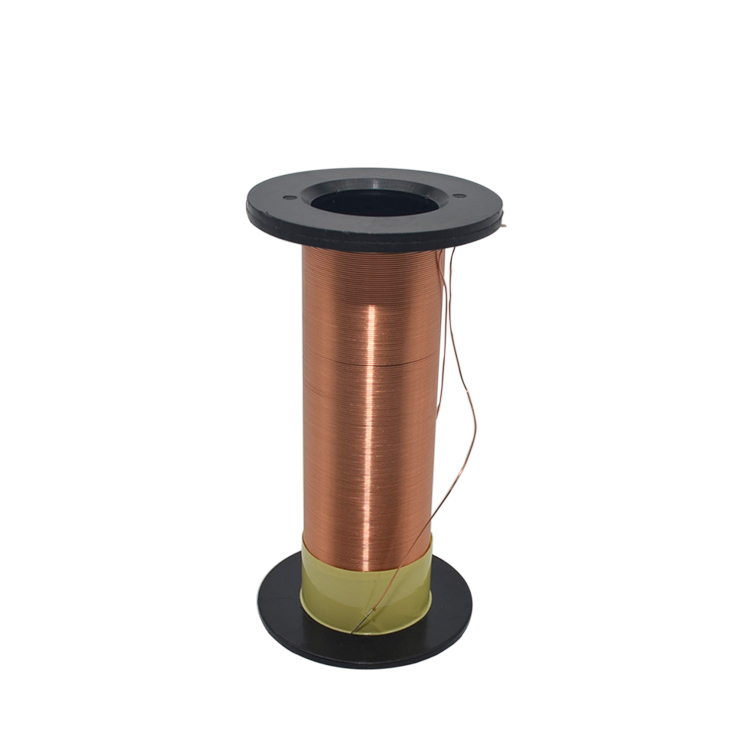

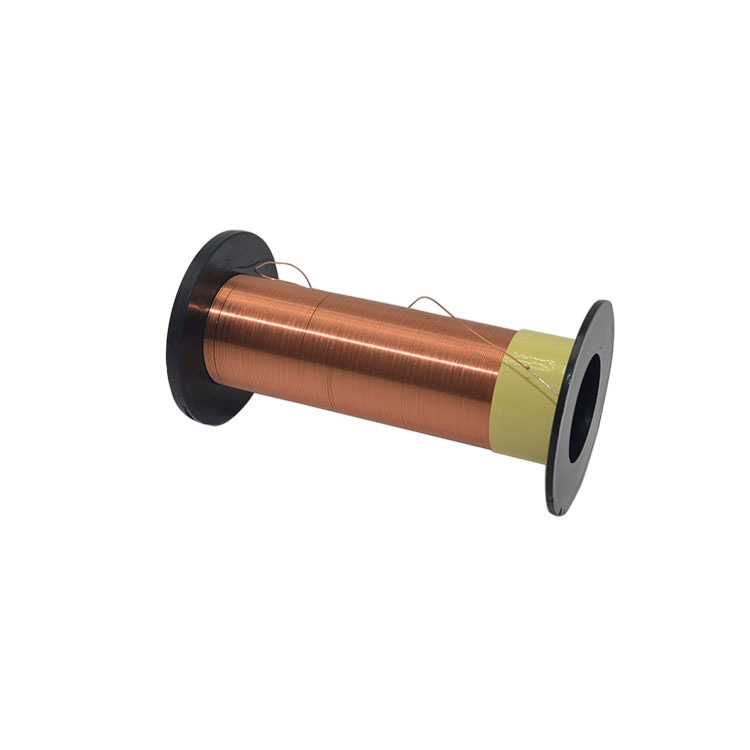

CHIPSEN C103 Air Coil is a precision-wound, air-core inductor built with enameled copper wire on a compact bobbin with black end caps. The coreless design eliminates core loss, delivering stable inductance, low loss and reliable high-frequency performance for demanding electronic circuits.

Category Parameter (English) Standard / Typical Range
Electrical Parameters Inductance (L) 1.0 µH - 500.0 mH
Electrical Parameters Inductance Tolerance ±5% (J), ±10% (K), ±20% (M)
Electrical Parameters DC Resistance (DCR) 1.0 mΩ - 100.0 Ω
Electrical Parameters Rated Current (Irms) 0.05 A - 30.0 A+
Electrical Parameters Operating Frequency 1 kHz - 10 MHz
Electrical Parameters Quality Factor (Q Value) 20 - 150+
Dimensions & Structure Bobbin Outer Diameter (OD) 5.0 mm - 100.0 mm
Dimensions & Structure Bobbin Inner Diameter (ID) 2.0 mm - 50.0 mm
Dimensions & Structure Bobbin Height (H) 5.0 mm - 120.0 mm
Dimensions & Structure Wire Diameter / Gauge 0.05 mm - 2.50 mm (AWG 10 - 44)
Dimensions & Structure Number of Turns (N) 10 - 5000+ Turns
Lead & Termination Lead Wire Length 5.0 mm - 200.0 mm+
Lead & Termination Stripping & Tinning Length 2.0 mm - 10.0 mm
Lead & Termination Terminal / Connector Type Stripped / Tinned / Connectors
Material & Safety Bobbin Material PBT, ABS, Bakelite, Nylon
Material & Safety Insulation Class Class B (130°C) / F (155°C) / H (180°C)
Material & Safety Surface / Wrap Treatment Mylar Tape, Varnish, Epoxy
Key Features
  • Air core design — no core loss and no core saturation, ideal for high-frequency operation
  • Precision copper wire winding — stable and consistent inductance
  • Compact bobbin with end caps — robust mechanical structure for reliable circuit board assembly
  • Low loss and high Q characteristics — clean, stable signal performance

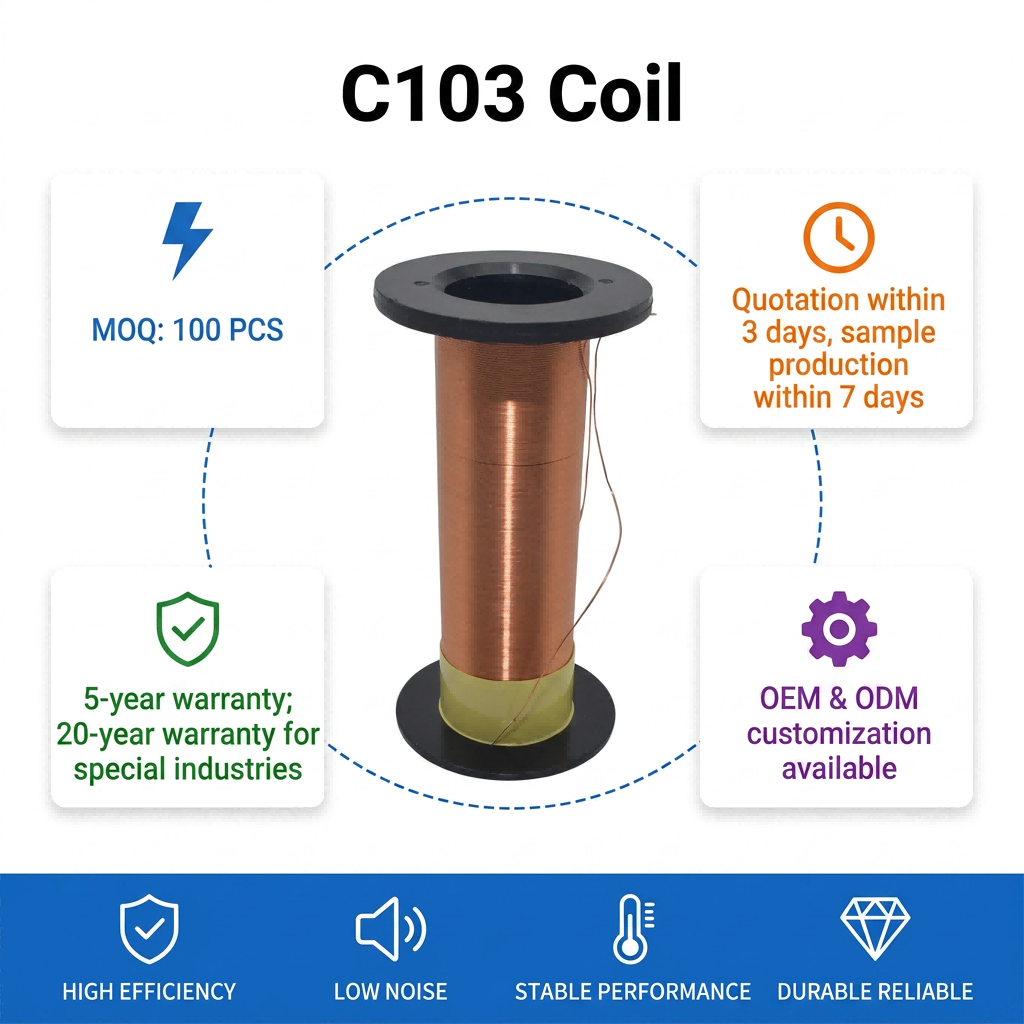

Model Information
C103 Coil
Applications
  • Power Electronics
  • Filters
  • Signal Processing
