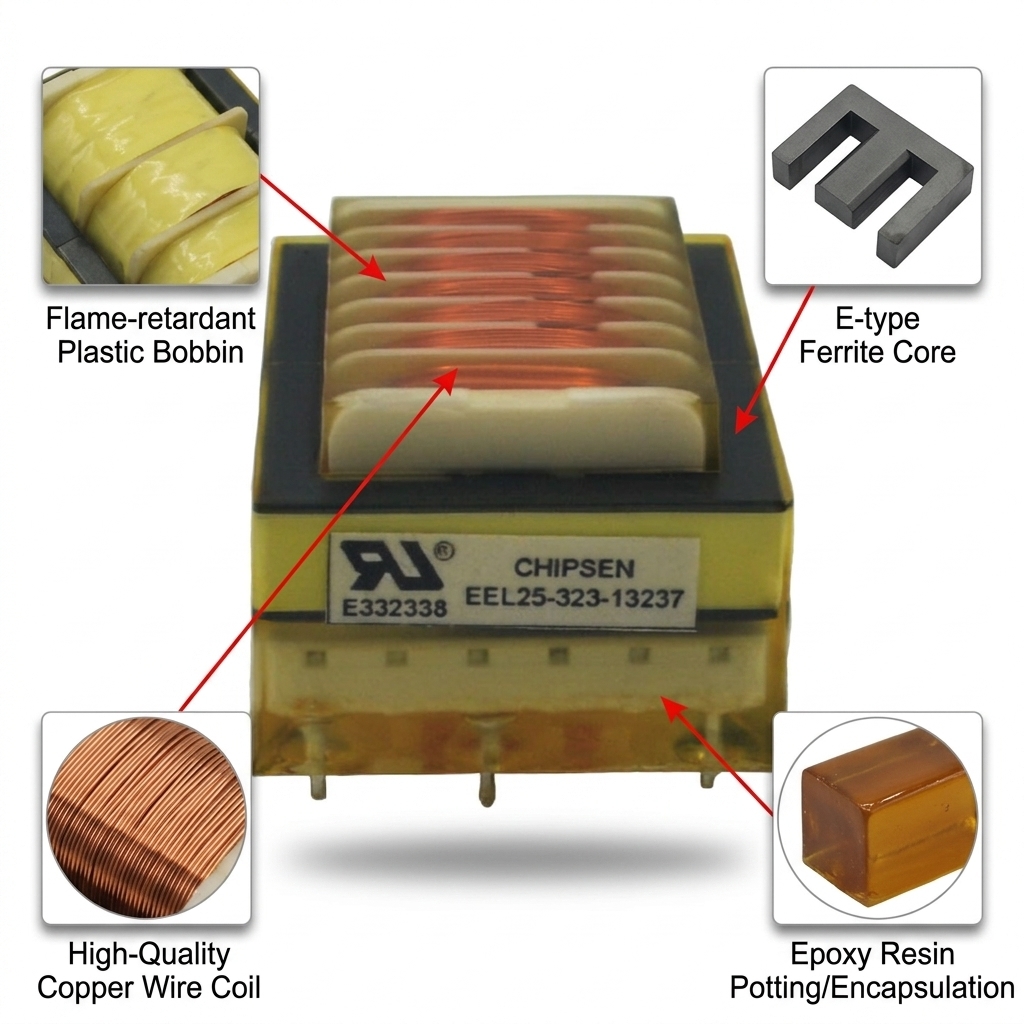

The EEL25 multi-slot pulse transformer is engineered for high-voltage triggering, pulse signal transmission, and specialized isolation applications. Featuring a multi-section segmented bobbin design, this transformer effectively reduces distributed capacitance, increases creepage distance, and prevents inter-turn high-voltage breakdown. It delivers exceptional insulation, reliable pulse signal integrity, and stable continuous performance under demanding operating conditions.

• Multi-Slot Bobbin Structure: Multi-slot physical segmentation minimizes distributed capacitance while boosting dielectric strength and resistance to sparkover.
• High Voltage Insulation: Designed to satisfy stringent safety and isolation standards, providing high clearance and creepage distances.
• Low Leakage Inductance: Optimized winding layout ensures quick pulse rise time and fast signal response without significant waveform distortion.
• Compact & Thermal-Efficient: EEL25 magnetic core architecture provides high power density and reliable thermal dissipation in a compact footprint.

• High-Voltage Ignition & Triggering: Gas discharge igniters, ozone generators, negative ion generators, and strobe light triggering.
• Power Electronics & Medical: Pulse drive circuits, high-voltage medical equipment, and precision pulse signal transformers.
• Industrial Automation & Energy: Gate drive circuitry, switching power supplies (SMPS), and industrial pulse control modules.

• Certified Safety: Built and manufactured to comply with global safety standards, including UL/cUL (Class B/F/H), VDE, CE, CB, CQC, RoHS, and REACH.
• Customizable Designs: Flexible winding turns, inductance range, and pin configuration options tailored specifically to your circuit needs.
• Consistent Quality: Produced using fully automated winding, soldering, and 100% automated test/pack equipment to ensure strict batch-to-batch consistency.

• Proven OEM/ODM Experience: Founded in 2007, Dongguan Jianyangda Electronics / CHIPSEN has over 15 years of deep expertise in magnetic component manufacturing.
• Certified Facilities: Operating under ISO9001, ISO14001, and IATF16949 quality management systems across 3 production bases (Dongguan, Nanchang, and Vietnam).
• Strong R&D & Test Capabilities: Equipped with 30+ technical patents and advanced testing instruments (Agilent impedance analyzers, HP high-frequency testers, and 100A DC bias testers).
