PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
PQ20 High Efficiency Pulse High Frequency Power Transformer Compact CQC Certified
Specifications
Certification :
ISO9001:2015, IATF16949:2016, CQC, ROHS, CE
Pin :
5+5 Pins
Model Number :
PQ20
Output Power :
20W - 80W
Payment Terms :
T/T
Solution :
One-stop solution
Price :
＄1.25-2.2/pieces,1000-10000pcs
Components :
ferrite core, copper wire
Supply Ability :
5000pcs
Supply type :
OEM / ODM
MOQ :
500pcs
Delivery Time :
7-14 work days (Negotiable)
Warranty :
5 years
Brand Name :
Chipsen
Packaging Details :
Custom blister trays + export cartons; bulk orders securely palletized for safe transit. Custom packaging available.
Place of Origin :
China
Frequency :
100KHz - 500KHz
Description
PQ20 High Frequency High Efficiency Pulse Transformer Compact CQC Certified

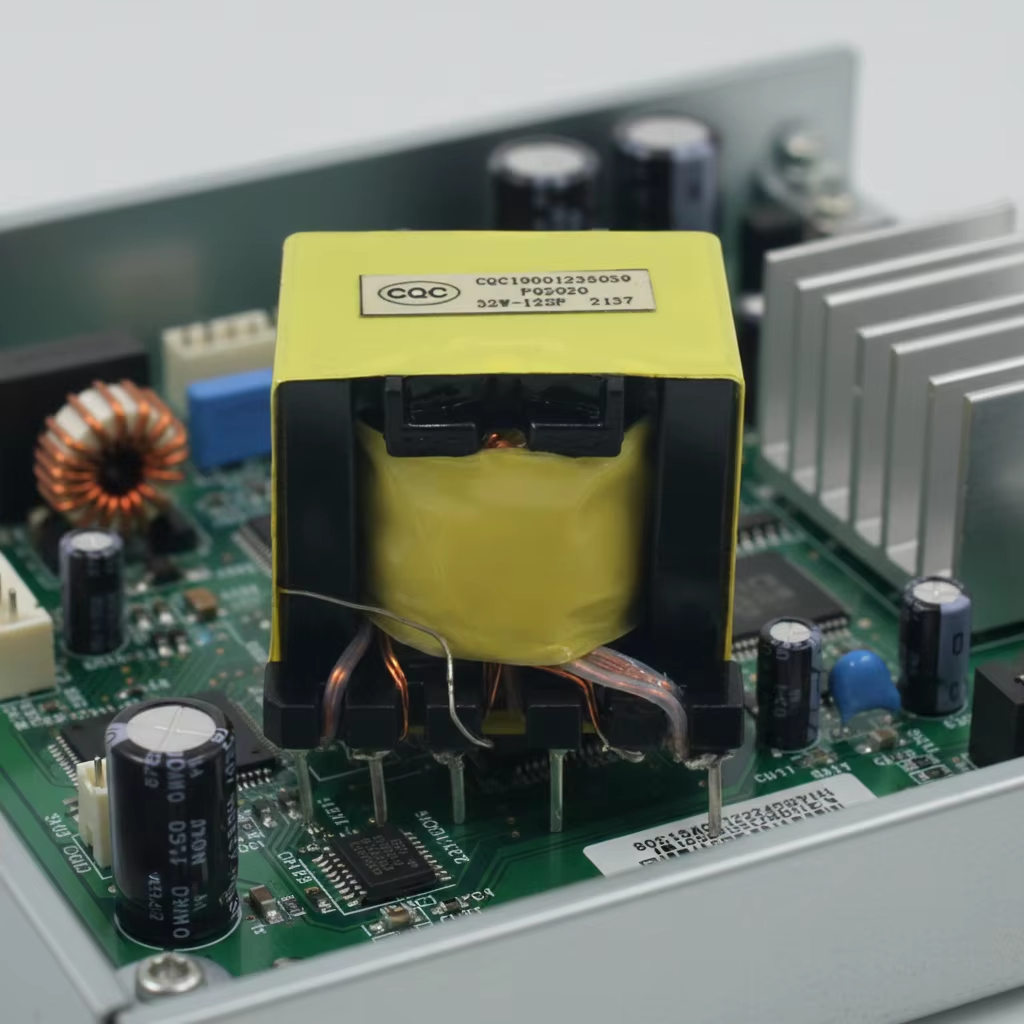

The PQ20 series represents our flagship magnetic solution for precision high frequency pulse conversion and signal isolation. Specifically engineered to meet the rigors of high density switching power supply environments, the PQ20 utilizes an optimized core geometry to deliver exceptional power throughput while maintaining a remarkably compact PCB footprint. Housed in a durable high temperature resistant yellow wrap, each unit is built with premium materials to ensure the thermal stability and dielectric strength your mission critical electronics demand. Whether for industrial automation or consumer power adapters, the PQ20 is the dependable heart ensuring clean and stable energy flow across your entire system.
Technical Specifications
Category Professional Technical Details
Model Introduction High reliability PQ20 series high frequency pulse transformer
Core Materials Premium Mn-Zn Ferrite ensures low core loss and high flux density
Winding Technology Precision 100% pure copper wire for maximum efficiency
Safety Compliance Official CQC recognized quality with full ROHS and CE certifications
Quality Systems Produced in certified IATF 16949:2016 and ISO 9001:2015 facilities
Power Capability Supports efficient energy conversion for SMPS ranging from 20W to 80W
Custom Services Full OEM and ODM support with free professional technical advice
Technical Features
  • High grade manganese zinc ferrite core ensures superior magnetic efficiency and low heat
  • Precision wound copper winding technology significantly reduces DCR and thermal buildup
  • Robust vertical 10 pin bobbin design provides exceptional mechanical strength for assembly
  • Advanced yellow polyester film wrapping ensures robust high voltage isolation safety
  • Compact PQ geometry specifically optimized for high density circuit board environments
  • Precision manufacturing technology guarantees highly consistent electrical parameters
  • Environmental moisture resistant coating enhances long term reliability in harsh industrial fields
Applications & Advantages
  • Perfectly optimized for high frequency SMPS, DC-DC converters, and various power adapters
  • The ideal choice for high power LED drivers, smart home electronics, and automation units
  • Extensively used in communication equipment, medical monitors, and precision instruments
  • Certified quality standards simplify your final product international market access
  • Strict 100% quality verification verifies every parameter before final shipping
  • More than 20 years expertise ensures industry leading reliable magnetic solutions
  • Direct factory supply offers highly competitive pricing for global strategic procurement
Frequently Asked Questions
Q1: How long the sample can be ready?
A1: 3-5 days for new samples, 1 day for sample in stock.
Q2: Shipping for samples
A2: When customers cover freight costs, we can help you choose the cheapest shipping way.
Q3: Can you provide technical support for customized products?
A3: Yes, we have strong R&D team who can provide free technical support according to your specific demands. We support customizations in terms of input & output voltage, power, inductance, dimensions, cores material, wire materials, and more.
Q4: Can you accept flexible MOQ?
A4: We support flexible MOQ based on your industry and the characteristics of the products you need. Could you please tell us the application areas of the products you need and the estimated annual usage volume?
Q5: If I have a large quantity of goods that need to be shipped by sea, can you ensure proper packaging and protection for them?
A5: Yes, we can provide the goods packed in strong export carton, on wooden pallet and shrinkwrapped.
