Specifications
Model Number :
T110
Working Frequency :
50~60Hz
MOQ :
1000 pcs
Delivery Time :
30-45 working days
Power Rating :
180VA
Packaging Details :
Carton
Payment Terms :
T/T
Brand Name :
Chipsen
Winding Type :
Copper wire
Place of Origin :
China
Core Material :
Silicon Steel
Price :
$20.58-$100.89
Input Voltage :
110V AC
Supply Ability :
1K - 5K pcs / Month
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Output Current :
30A - 100A
Description

1. Product Introduction

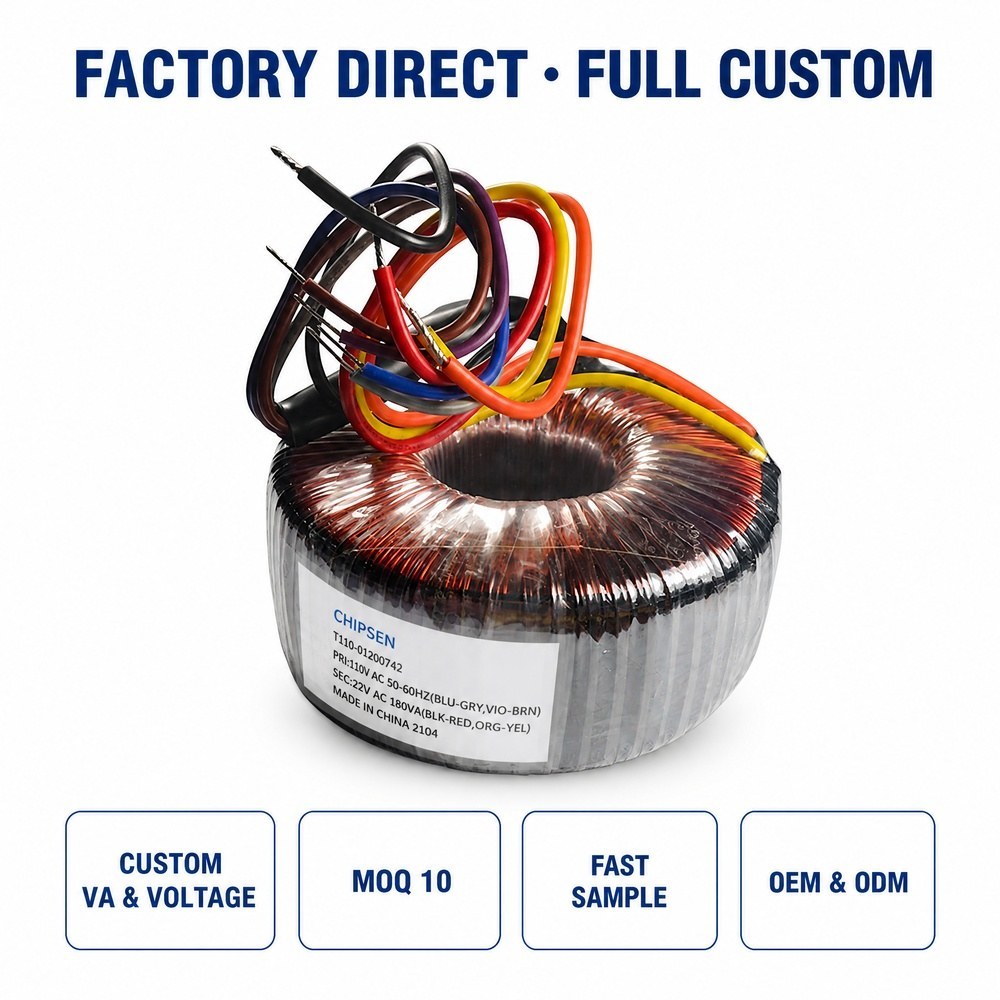

The Chipsen T110 series Toroidal Transformer is a high-efficiency power solution engineered for precision industrial and medical applications. Featuring a continuous ring-core construction, this transformer delivers superior magnetic coupling and minimal stray magnetic fields compared to traditional EI transformers. With a robust 180VA power rating, it is specifically optimized for high-performance industrial inverters and sensitive telecommunication power stages where noise isolation and energy density are paramount.

Technical Specifications

Technical ItemSpecification Details
Core TypeToroidal (High-permeability Silicon Steel)
Power Rating180VA (Fully Customizable up to 5kVA)
Input Voltage (Primary)110V AC (Customizable for Global Grids)
Output Voltage (Secondary)22V AC (Dual/Multi-output options available)
Operating Frequency50/60Hz
Efficiency>96% at Full Load
Excitation CurrentUltra-low (Minimum no-load loss)
Insulation ClassClass B (130°C) / Class F (155°C)
Dielectric Strength4000VAC / 1min
Mounting MethodCenter-hole mounting with metal plate & washer

2. Product Features

  • Full Customization: Tailored VA rating, input/output voltages, and lead wire configurations to fit your specific cabinet layout.
  • Low Magnetic Leakage: The toroidal shape inherently traps magnetic flux, making it ideal for low-noise medical equipment.
  • Compact Design: Up to 50% lighter and smaller than standard laminated transformers of the same power rating.
  • Quiet Operation: Zero mechanical hum or vibration, ensuring a stable environment for precision CNC machinery.

3. Product Application

Our toroidal power transformers are widely trusted in critical industrial infrastructures:

  • Industrial Inverters: Core power conversion for variable frequency drives and UPS systems.
  • Solar (PV) Inverters: Energy management and isolation for renewable energy grids.
  • Medical Devices: Low-leakage power supply for diagnostic and patient monitoring equipment.
  • Telecommunications: Reliable power isolation for base stations and network cabinets.
  • AI Server Racks: Clean power delivery for high-density computing infrastructure.
  • CNC & Automation: Control power for industrial robotic arms and factory automation.

4. Why Choose Chipsen?

Product Advantages

  • Maximum Efficiency: High-flux silicon steel cores reduce heat generation and improve system longevity.
  • Factory Direct: Direct-from-manufacturer sourcing ensures consistent quality and competitive pricing for custom projects.
  • Safety Backed: Designed to meet EN61558 and UL standards, ensuring safe global deployment.

Company Advantages

  • 26 Years of Industrial Heritage: Since 2000, we have focused on high-end magnetic solutions for global OEMs.
  • North American Market Presence: 50% of our production supports North American industrial leaders.
  • Flexible MOQ: We support industrial prototyping with a low MOQ of only 10 PCS.
  • Rapid Engineering: Get custom design feedback and technical specifications within 1 hour.

5. Frequently Asked Questions (FAQ)

Q1: Can I customize both the VA and the output voltage for the T110?
A: Yes, we provide full custom design. You can specify the exact VA, input, and multiple output voltages required for your system.
Q2: What is your standard MOQ for custom toroidal transformers?
A: Our industrial MOQ starts at just 10 PCS, allowing for flexible pilot production and high-value project support.
Q3: Which payment methods are accepted for international orders?
A: We support T/T (Telegraphic Transfer), PayPal, and Western Union for secure international transactions.
Q4: How does this transformer perform in terms of noise compared to EI types?
A: Toroidal transformers are significantly quieter, with almost zero mechanical hum and very low electromagnetic interference.
Q5: What is the typical lead time for a custom sample?
A: We offer fast sample production, typically completed within 7 to 10 working days after design confirmation.
Q6: Are these suitable for AI server power modules?
A: Yes, their high efficiency and compact size make them excellent for high-density power isolation in AI server infrastructure.
Q7: Do you provide mounting accessories with the transformer?
A: Yes, each transformer comes with a standard mounting kit including a metal plate, rubber washers, and a center bolt.
Q8: Is your factory certified for quality management?
A: Yes, Dongguan Chipsen Electronics is ISO 9001 and ISO 14001 certified, ensuring rigorous process control for every unit.
