Custom T200 T235 T270 380V to 24V Toroidal Transformer for UPS and Inverters
High-performance toroidal transformer designed for 50/60Hz mains-powered equipment requiring safe, low-noise, and space-efficient step-down solutions.
Product Introduction

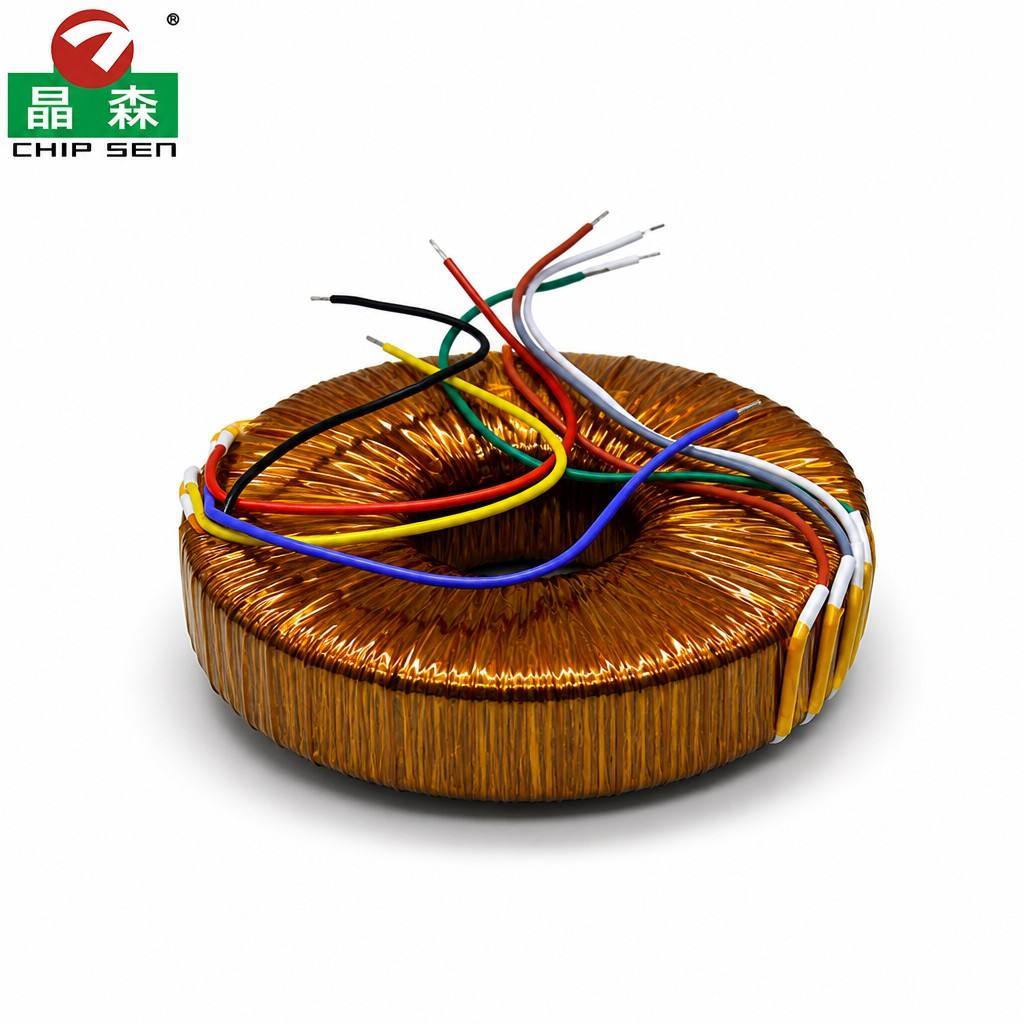

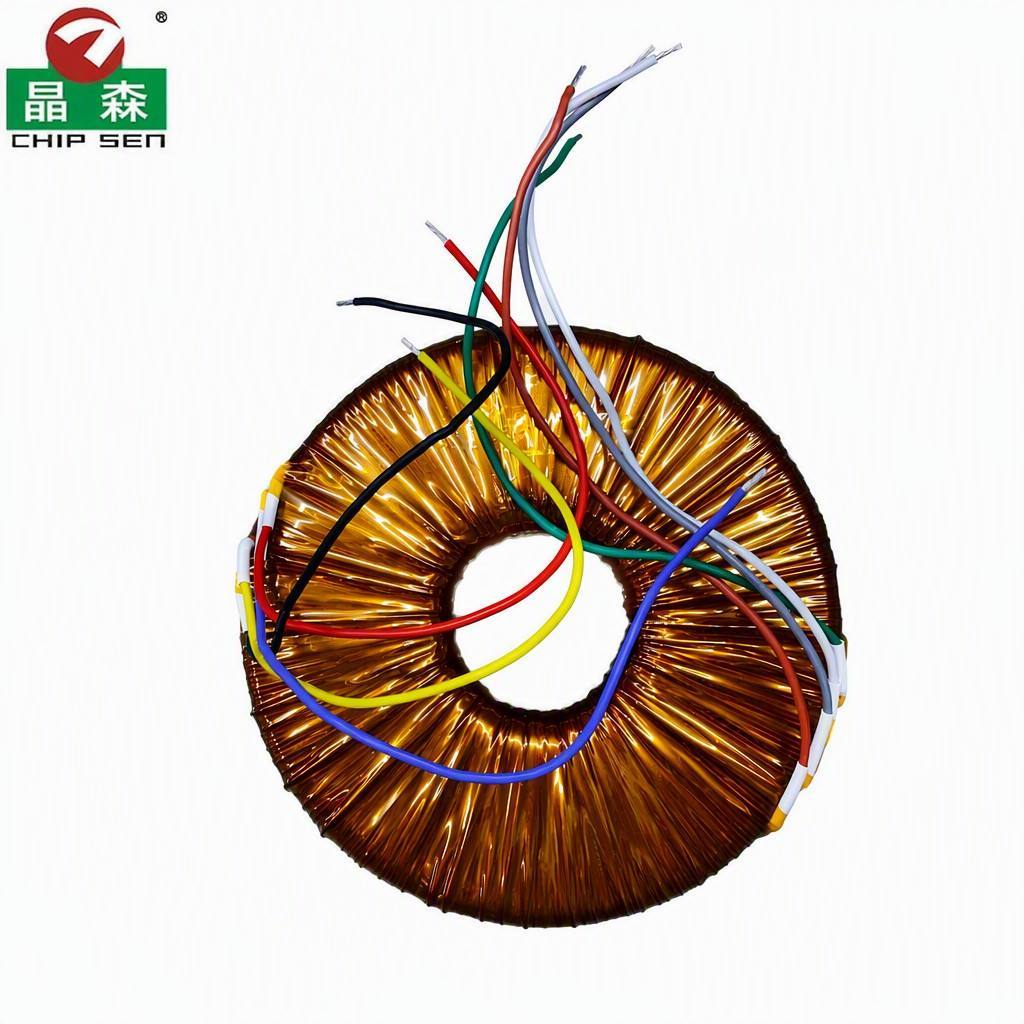

The Chipsen T270 is a high-power toroidal transformer built on a continuously wound grain-oriented silicon steel core. Featuring dual primary (0-115V AC) and dual secondary (0-28V AC) windings, this versatile unit can be configured for 115V or 230V mains input and can supply either a single higher-current rail or two independent isolated rails. The toroidal structure offers a lower profile, lighter weight, significantly reduced stray magnetic field, and virtually no mechanical hum compared to conventional EI laminated transformers.
Specifications
Parameter Specification
Model No. T270
Transformer Type Toroidal low frequency power transformer, open style with flying leads
Rated Power 160-3K VA/Custom
Input Voltage 0-115 V AC, dual primary windings (BLU-GRY / VIO-BRN)
Operating Frequency 50 / 60 Hz
Output Voltage 0-28 V AC, dual secondary windings (BLK-RED / ORG-YEL)
Output Current 2.66 A per secondary winding / Custom
Winding Configuration 2 primaries + 2 secondaries; primaries in parallel for 115V or in series for 230V; secondaries in parallel for higher current or in series for centre-tapped output
Core Material Cold-rolled grain-oriented silicon steel strip, continuously wound toroidal core
Winding Wire Class 180 (h) enamelled copper wire, full copper, no CCA
Insulation System Polyester / polyimide insulating tape between primary and secondary, insulating sleeve on all lead-out wires
Dielectric Strength 3000 V AC, 1 minute, primary to secondary, no breakdown
Insulation Resistance Not less than 100 M ohm at 500 V DC
Temperature Rise Not more than 60 K at full rated load
Efficiency Typically 90% or above at full load
No-load Current Low no-load loss thanks to the toroidal core, typical value confirmed on the approval sample
Termination Colour-coded flexible flying leads, length made to customer requirement
Mounting Centre-bolt mounting with rubber pads and metal dish washer, or resin potted / epoxy dipped on request
Operating Temperature -25 C to +105 C
Compliance RoHS compliant, UL-recognized winding and insulation materials, CE / CB documentation support
Customization Voltage, VA rating, number of windings, lead colour and length, mounting method and marking label all customizable
MOQ / Sample MOQ 1,000 pcs, samples available before mass production
Product Features
  • Toroidal core structure with no air gap, providing low core loss, low no-load current and high efficiency at full load
  • Very low audible noise - no loose laminations to vibrate, ideal for home, studio and medical environments
  • Low stray magnetic field, significantly below equivalent EI transformers, reducing interference with nearby circuits
  • Compact, low-profile shape with light net weight for easy integration into slim enclosures
  • Dual primary and dual secondary design covers both 115V and 230V mains with single or dual output rail configurations
  • Reliable isolation with separate primary and secondary layers, tested at 3000 V AC
  • Excellent thermal performance - round core dissipates heat evenly, maintaining temperature rise within 60 K
  • Full copper windings and quality silicon steel ensure long service life and stable electrical performance
  • Color-coded and sleeved flying leads reduce assembly time and wiring errors
  • 100% electrical testing on every unit: turns ratio, no-load current, hi-pot and insulation resistance
Product Applications
  • Audio equipment: hi-fi amplifiers, power amplifiers, mixing consoles, studio and stage gear
  • Medical and laboratory instruments: isolation power supplies, analysers, test benches
  • Industrial control: PLC power modules, control cabinets, machine tool control circuits
  • LED and architectural lighting: low-voltage lighting systems, halogen and LED driver power supplies
  • Building and security systems: access control, CCTV, alarm panels, intercom systems
  • Home and commercial appliances: coffee machines, kitchen equipment, vending machines
  • Renewable energy and charging equipment: inverters, chargers and energy storage cabinets
  • Uninterruptible power supplies, voltage stabilisers and general purpose linear AC-DC power supplies
Company Advantages
  • Established in 2000 with 26 years of expertise in magnetic components for industrial control and power electronics
  • Self-owned 10,000 square metre factory in Dongguan with 8 complete production lines
  • 20-person R&D team and 20-person QC team ensuring quality from design to production
  • Complete certification framework: ISO 9001, ISO 14001, CE, CB, UL, cUL and RoHS
  • Annual export value of USD 42 million, serving global markets including North America, Europe, and Asia
  • Flexible cooperation: MOQ from 1,000 pcs, DDP and DDU terms supported
Product Advantages
  • Purpose-built designs customized to your exact voltage and power requirements
  • Toroidal construction provides measurably lower hum, lower stray field and higher efficiency
  • Dual winding flexibility simplifies BOM and inventory for both 115V and 230V markets
  • Consistent turns ratio and controlled winding tension ensure stable output voltage
  • Safety-oriented insulation system supports CE, UL or medical approval requirements
  • Free technical support for winding configuration, lead color coding, mounting and thermal layout
Frequently Asked Questions
Q1: How long does it take to get a sample?
A1: 3-5 working days for new custom samples; 1 day if the sample is in stock.
Q2: Who pays the shipping cost for samples?
A2: The freight cost is covered by the customer. We will help you compare couriers and choose the most economical shipping way.
Q3: Can you provide technical support for customized products?
A3: Yes. Our in-house R&D team offers free technical support based on your specific requirements. We can customize input & output voltage, VA rating, number of windings, lead length and colour, mounting method and label marking.
Q4: Can you accept a flexible MOQ?
A4: Yes, we can be flexible with MOQ depending on your industry and product needs. Please share your application and estimated annual usage for customized MOQ and pricing.
Q5: Can this transformer work on both 115V and 230V mains?
A5: Yes. It has two 115V primary windings. Connect them in parallel for 115V input, or in series for 230V input. We provide clear connection diagrams with samples.
Q6: Can I get a different output voltage or a higher VA rating?
A6: Yes. We design toroidal transformers from a few VA up to several kVA. Provide your input voltage, output voltage, current and space requirements for a matching design quote.
Q7: What is your normal lead time for mass production?
A7: Standard lead time is about 15-25 days after order confirmation, depending on quantity and complexity. We can accommodate urgent projects upon request.
Q8: What certifications do you have?
A8: Our factory is certified to ISO 9001 and ISO 14001. Our products meet CE, CB, UL, cUL and RoHS requirements, with full documentation support for your certification needs.
Q9: If I have a large quantity of goods that need to be shipped by sea, can you ensure proper packaging and protection?
A9: Yes. Goods are packed in strong export cartons, stacked on wooden pallets and shrink-wrapped for protection during long sea transport.
Q10: What payment terms do you accept?
A10: We accept T/T, Paypal and West Union. Sample orders require full advance payment; bulk order terms are negotiable based on order value and cooperation history.
