Specifications
Brand Name :
SH
Model Number :
PT-1500,AS1250- 3 ,AS1250- 4
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 SET Pallet nailing machine
Price :
US $4,200 - 21,500 / Set
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets/year of Pallet nailing machine
Delivery Time :
within 20 days
Packaging Details :
container loading of Pallet nailing machine
Name :
pneumatic Pallet nailing table
pallet width :
800-1500 mm
pallet length :
1300 mm max.
capacity :
210-230 pallets /8hours
Operating pressure :
up to 8 bar
Number of Coil Nail Guns :
1pc
weight :
440kgs
Qty of stringers :
2, 3, 4, or 5 stringers
Pneumatic clamp :
Easily centers the blocks
Pneumatic lift :
Raises pallet to minimize operator lifting
After-sales service provided :
Online support,Free spare parts,commissioning and training
Description

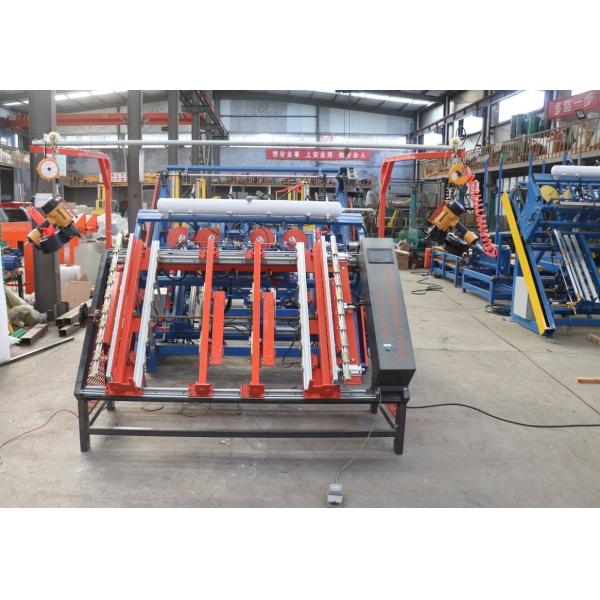

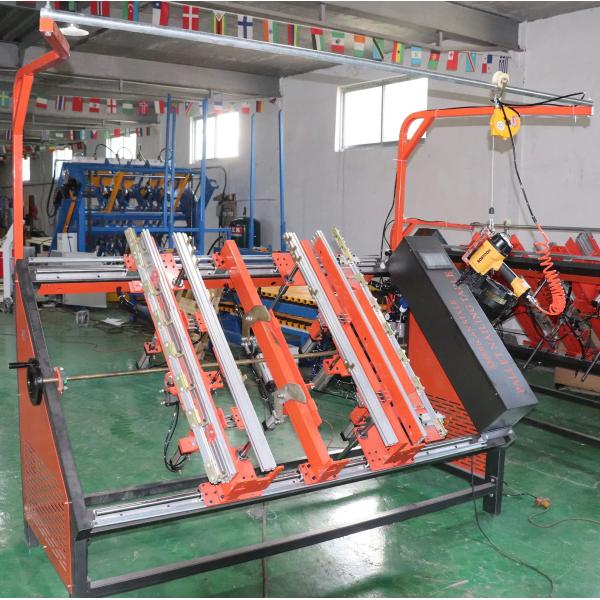

A universal pneumatic nailing table, Pneumatico PT-1600/PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Technical specifications:

  • Weight: 440 kg
  • Operating pressure: up to 8 bar
  • Material: structural steel

Dimensions of the pallets:

  • Length: 700mm – 1300 mm
  • Widht: 700mm-1600 mm

Instruction:

  • Easy to use One operator can build 210-230 pallets within 8 hours
  • Compact design Total footprint 3.3 m² (35.5 ft²)
  • Universal Adjustable worktop allows production of:
  • Pallets on 2, 3, 4, or 5 stringers
  • Efficient Quickly switch to any size pallet
  • Pneumatic clamp Easily centers the blocks
  • Pneumatic lift Raises pallet to minimize operator lifting
  • Overhead roller track Nail guns can move freely during work
  • Bottom template Template to build pallet legs
  • Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
  • Unique Diagonal table adjustment reduces work by 50%
  • Only 2 Allen keys required to adjust the table

Semi-Automatic American Pallet Pneumatic Nailing Table

Model PT-1700 PT-3400
Wood pallet length 600-1300mm 700-1500mm
Wood pallet width 800-1700mm 900-3400mm
Operational mode Pneumatic operation Pneumatic operation
Air pressure 0.8MPA 0.8MPA
Production efficiency 30-40pcs /h 20-30pcs /h
Number of beams 3p (or customized) 5p (or customized)
Number of nail guns

1P (CN70)

American Stanley staple gun

1P (CN70)

American Stanley staple gun
Weight 440kg 840kg
Size 2250*980*1900mm 4050*1050*2100mm

Pneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making MachinePneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making MachinePneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making Machine

Semi-Automatic European Pallet Pneumatic Nailing Table

Model PT-1600 PT-3300
Wood pallet length 600-1300mm 700-1500mm
Wood pallet width 800-1600mm 900-3300mm
Operational mode Pneumatic operation Pneumatic operation
Air pressure 0.8MPA 0.8MPA
Production efficiency 30-40pcs /h 30-40pcs /h
Number of beams 3p (customized) 5p (customized)
Number of nail guns

2P (CN70,CN55)

American Stanley staple gun

2P (CN70,CN55)

American Stanley staple gun
Weight 650kg 950kg
Size 2400*980*1900mm 4000*980*1900mm

Pneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making Machine

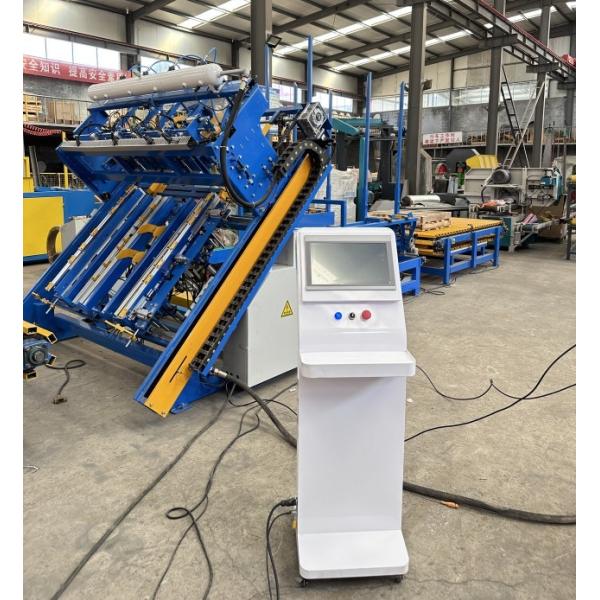

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets

-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
Model AWPN-1300
Wood pallet length 600-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 2kw Servo motor
Air pressure 0.8MPA
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Number of nail guns 3P OR 4P
Weight 2000kg
Size Host machine 1660*1970*2217mm
Stacking 2945*2054*1410
