Specifications
Brand Name :
SH
Model Number :
SLDJ-1300-3, etc
Certification :
ISO9001,CE
Place of Origin :
Shandong Province, China
MOQ :
1 SET wood pallet pier automatic connecting nailing machine
Price :
US $7,800 - 12,400 / Set
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets/year of wood pallet pier automatic connecting nailing machine
Delivery Time :
within 20 days
Packaging Details :
export packing or film wrapped container loading
Name :
Euro Pallet Block Nailing Machine
Capacity :
600P/H
Power(w) :
1.5KW Servomotor
Block width :
60-150mm
Board Length :
600-1300mm or as customer needs
Nail gun :
Stanley BOSTITCH Stitch gun70mm*3
Nailing method :
1 nail, 2nails, 3nails, 4nails, 5nails
Warranty :
12 month after receiving the machine
Labor Needed :
1 Operator
After-sales service provided :
commissioning and training, video technical support
Description

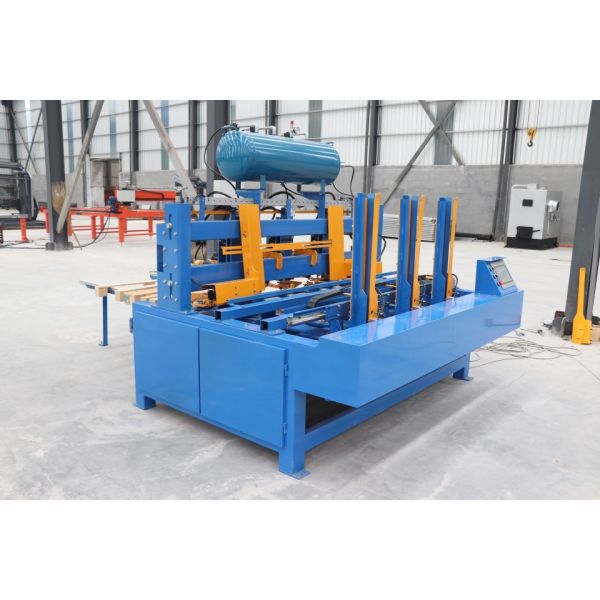

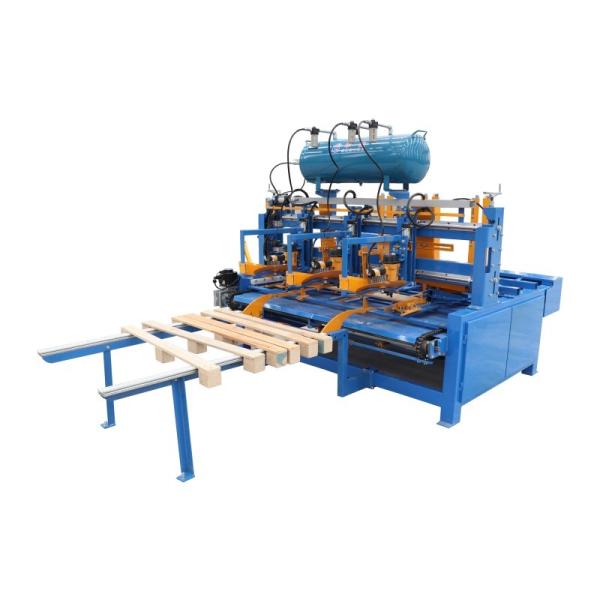

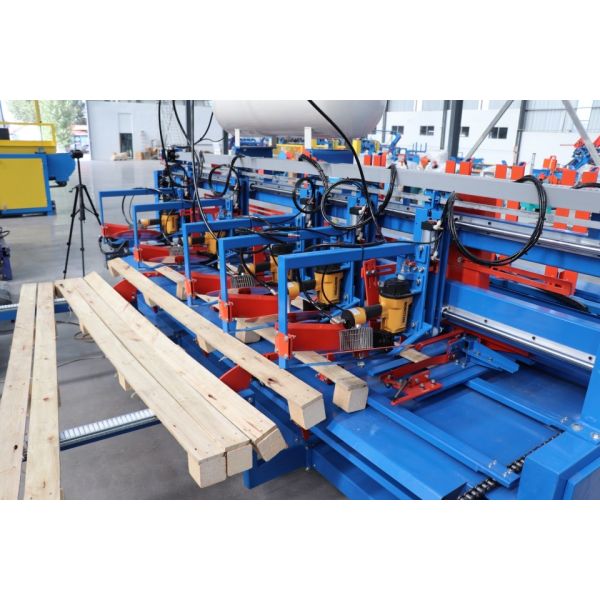

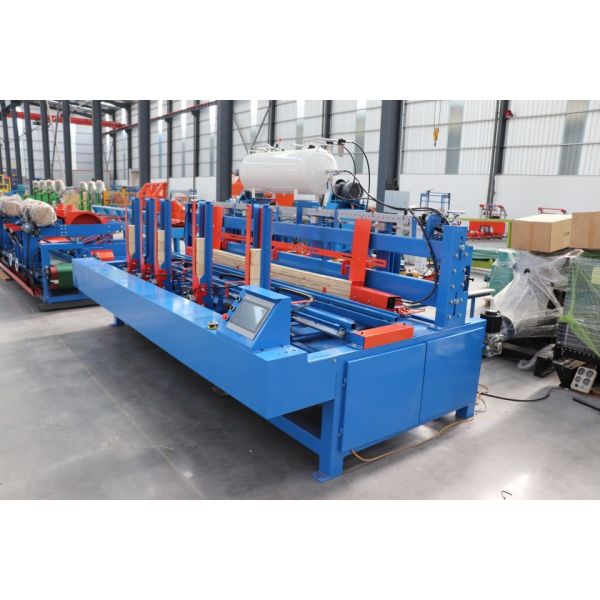

Automatic Euro Pallet Block Nailing Machine

– High-Efficiency Automated Pallet Production

Overview

Our Automatic Euro Pallet Block Nailing Machine is a heavy-duty, high-performance industrial solution designed for the automated assembly of Euro pallet blocks and stringers. It streamlines the traditional, labor-intensive nailing process, ensuring maximum safety, uniform quality, and high-speed output.

Technical Highlights & Features:

  • Advanced PLC Control System: User-friendly touch screen interface allows for quick adjustment of nail spacing, block dimensions, and production speed.

  • High Compatibility: Perfectly handles standard Euro pallet blocks (145mm x 145mm, 145mm x 100mm, etc.) with precise positioning.

  • Pneumatic / Hydraulic Nailing System: Delivers strong, consistent driving force, ensuring nails are perfectly flush or countersunk according to your requirements.

  • Automatic Pallet Nailing Machine & Stacking (Optional): Can be customized with automatic pallet nailing machine and pallet stackers to minimize manual handling.

  • Durable & Robust Design: Built with high-grade industrial steel to withstand continuous, high-intensity factory environments.

Technical data

Model SLDJ-1300-3
Block width 60-150mm
Board Length 600-1300mm
Nail gun Stanley BOSTITCH Stitch gun70mm*3
Air pressure 0.8MPA
Nail gun speed 4-8 s/time
Motor power 1.1KW Servomotor
Capacity 600P/H
Voltage 220V(Customized)
Operating mode Touch screen
Production mode Manual discharge/automatic pin pier
Machine size 2500*1800*2100mm

Images

Automatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine PriceAutomatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine Price

Automatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine Price

Applications & Benefits

  • Ideal for Euro pallet manufacturing, block pallet production, and custom pallet assembly.

  • Suitable for large-scale industrial operations requiring high-speed, repeatable nailing precision.

  • Reduces production time and costs while maintaining consistent, high-quality output.

Wood Pallet Production Line

Pallet block nailing machine + Automatic pallet nailing machine + Rotating machine + Logo Branding machine
+ Pallet corners cutting machine + Pallet turnover machine + Stacking/Palletizing machine + Conveyor
are connected into a production line.

Automatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine Price

Automatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine Price

Related Hot Selling Machines

  • Plywood pallet block nailing machine
Model PB200
Working mode Automatic feeding ,automatic nailing and cutting
Operating mode Touch screen control
Operational mode Pneumatic operation
Motor power 7.5KW,2.2KW*2,1KW
Raw material length 1000-3000mm
Block Length 40-200mm
Cutting height 40-120mm
Cutting width 40-100mm
Cutting blade 350-400mm
Number of planer 2
Nail quantity 1-3 pcs (adjustable)
Working Efficiency 5-6m3/day
Voltage 380V/3 Phase
Weight 1200Kg
Dimension 5400*1400*1600mm

Automatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine PriceAutomatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine Price

  • Wood block multi-blade saw

Model BM-1250
Cutting Length 1250mm
Cutting Thickness 100mm
Cutting Width 200mm
Saw Diameter 355mm
Motor 30kw
Weight 1600kg

Automatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine PriceAutomatic Euro Pallet Block Nailing Machine for Sale Wood Pallet Machine Price
