Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
Specifications
Place of Origin :
Zhejiang, China, CN;ZHE
Brand Name :
kampa
Model Number :
easy9
products name :
230/400V EZ easy9 easy9 2 pole 30mA rccb
Type :
RCCB, Residual Current
Pole :
2pole/4pole
rccb Type :
AC types/A types
Certificate :
CE/CB/ISO/CCC
Rated current :
25A/32A/40A/63A
Breaking capacity :
6kA/10kA
Standard :
GB10963/IEC60898
Rated frequency :
50/60 Hz
Poles Number :
2P/4P
Packaging Details :
standard export carton
Port :
ningbo/shanghai
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
1000 Pieces
Price :
$4.00 - $8.00/Pieces
Description

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

1. Introduction of Residual Current circuit breaker

Easy 9 Series Residual Current Circuit Breaker (without over- current protection) is suitable for the line of AC50/60Hz, voltage 240V(2 pole)/ 415V(4 pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value it will cut off the power rapidly to protect human safety and prevent the accident from the current leakage. It is applicable to industrial area, commercial area, tall building and civil house.It complies with standard IEC/EN 61008.1 and GB1696.1

Frame class 63A
Rated working voltage 240/415V
Rated frequency 50/60Hz
Rated working current 16, 25, 40, 63A
Rated residual operating current 10mA, 30mA, 100mA, 300mA, 500mA
Rated residual un-operating current 15, 50 , 150 , 250mA
Sensibility A& AC
Maximum operating time IΔn t ≤ 0.1s, 5I Δn t ≤ 0.04s
Rated making and breaking capacity ln≤50A 500A, ln≤63A 630A
Limiting value of un-operating current 6ln
Rated limiting short-circuit current 6000A/10000A
Pole No. 2P, 4P
Mechanical life 20000
Electric life 4000

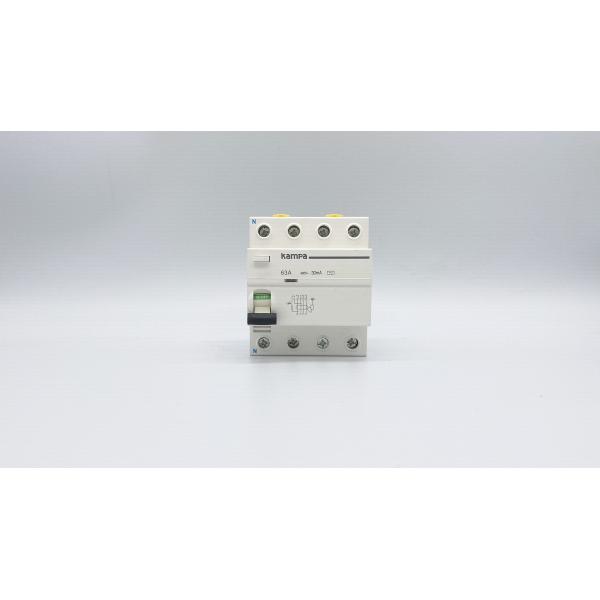

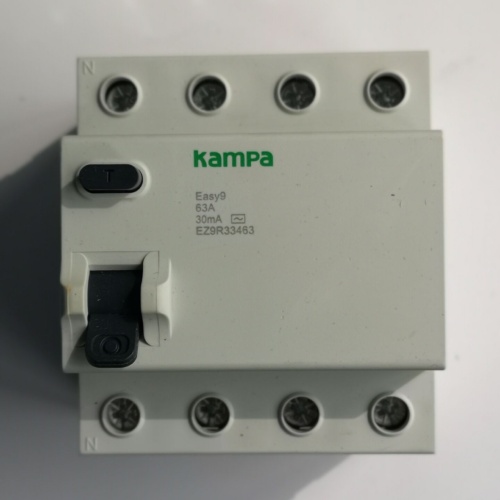

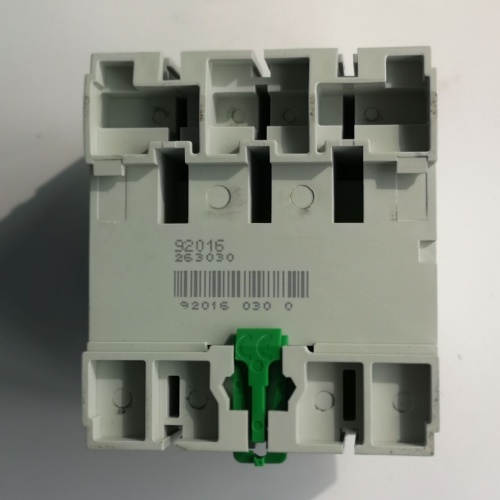

2. Pictures of Residual Current circuit breaker

Residual Current Circuit Breakers 63A EZ9R36263 2P 4PResidual Current Circuit Breakers 63A EZ9R36263 2P 4P

3. Production Line of Product

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

4. More Product for You to Choose

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

5. Packing of Product

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

6. Sample Rooms of Product

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
