2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
2P 40A RCCB EA9 Residual Current Circuit Breaker
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
EA9
Product name :
2P 40A RCCB EA9 Residual Current Circuit Breaker
Characteristic Curve :
C
Breaking Capacity :
6ka
Standard :
IEC/EN60947
Type :
residual current, Residual Current
Pole :
2P/4p
Current :
20A/32a/40a/50a/63a
Delivery Detail :
5 days
Color :
WHITE
Protection Degree :
IP20
Poles Number :
2P
Packaging Details :
Standard Export Carton
Port :
NINGBO
Supply Ability :
90000 Pole/Poles per Month
MOQ :
1000 Pieces
Price :
$3.50 - $6.00/Pieces
Description

2P 40A RCCB EA9 Residual Current Circuit Breaker

1. Introduction of Residual Current circuit breaker

Ea 9 Series Residual Current Circuit Breaker (without over- current protection) is suitable for the line of AC50/60Hz, voltage 240V(2 pole)/ 415V(4 pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value it will cut off the power rapidly to protect human safety and prevent the accident from the current leakage. It is applicable to industrial area, commercial area, tall building and civil house.It complies with standard IEC/EN 61008.1 and GB1696.1

Frame class 63A
Rated working voltage 240/415V
Rated frequency 50/60Hz
Rated working current 6, 16, 20, 25, 40, 63A
Rated residual operating current 10mA, 30mA, 100mA, 300mA, 500mA
Rated residual un-operating current 15, 50 , 150 , 250mA
Sensibility A& AC
Maximum operating time IΔn t ≤ 0.1s, 5I Δn t ≤ 0.04s
Rated making and breaking capacity ln≤50A 500A, ln≤63A 630A
Limiting value of un-operating current 6ln
Rated limiting short-circuit current 6000A/10000A
Pole No. 2P, 4P
Mechanical life 20000
Electric life 4000

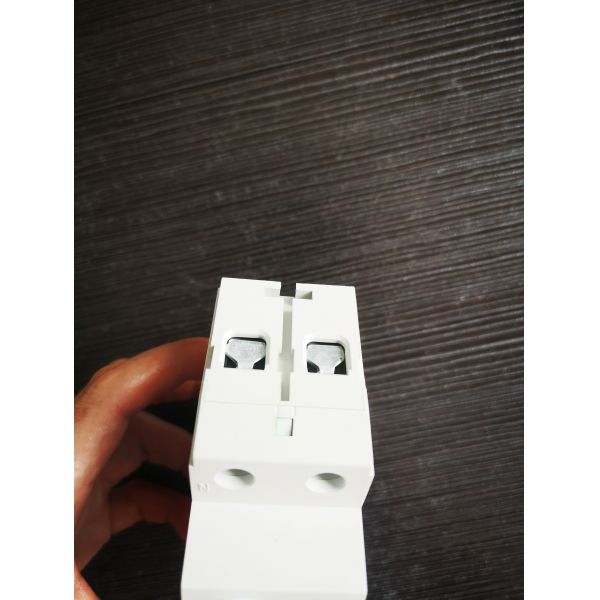

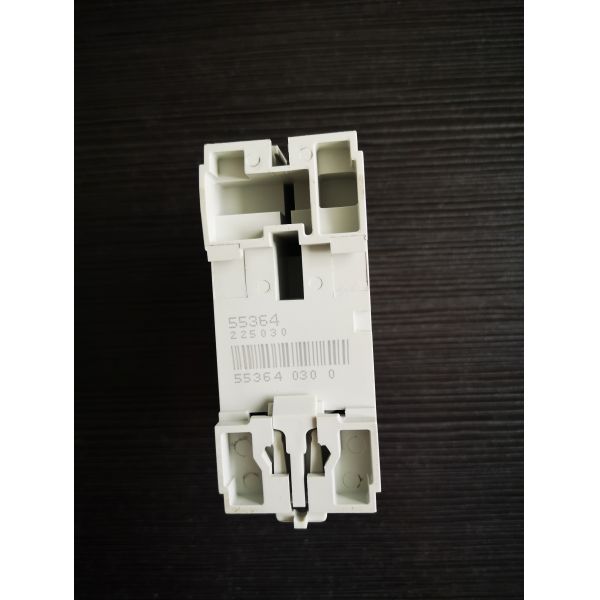

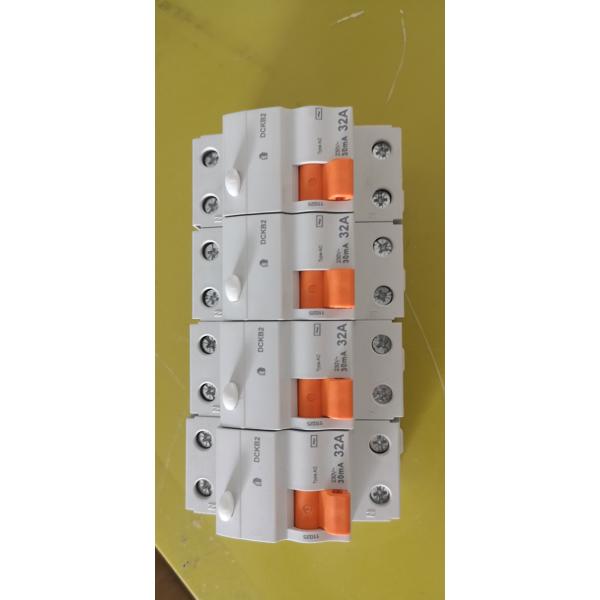

2. Pictures of Residual Current circuit breaker

2P 40A RCCB EA9 Residual Current Circuit Breaker2P 40A RCCB EA9 Residual Current Circuit Breaker2P 40A RCCB EA9 Residual Current Circuit Breaker2P 40A RCCB EA9 Residual Current Circuit Breaker

3. Production Line of Product

2P 40A RCCB EA9 Residual Current Circuit Breaker

4. More Product for You to Choose

2P 40A RCCB EA9 Residual Current Circuit Breaker

5. Packing of Product

2P 40A RCCB EA9 Residual Current Circuit Breaker

6. Sample Rooms of Product

2P 40A RCCB EA9 Residual Current Circuit Breaker

Company Information

1. Introduction of Company

2P 40A RCCB EA9 Residual Current Circuit Breaker

3. Our Exhibitions

2P 40A RCCB EA9 Residual Current Circuit Breaker
