PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
Specifications
Material :
Single or double PE coated paper
Heating System :
Hot Air System (from Switzerland)
Counter Size :
900×900×1760 mm
Product Output :
380V,16 KW,50HZ, Three Phase four wire
Air Compressor :
0.5M^3/min
Machine Size :
2500×1800×1700mm
Brand Name :
Shunda
Model Number :
SMD-90
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 set per mouth
Delivery Time :
30 working days
Packaging Details :
wooden pallet for paper cup machine
Cup Range :
2-32oz
Color :
grey and white
Speed :
120-160 pcs/min
Weight :
3.4 tons
Description

PLC Controled Hot Air System High Speed Paper Cup Machine With 120-160 pcs/min

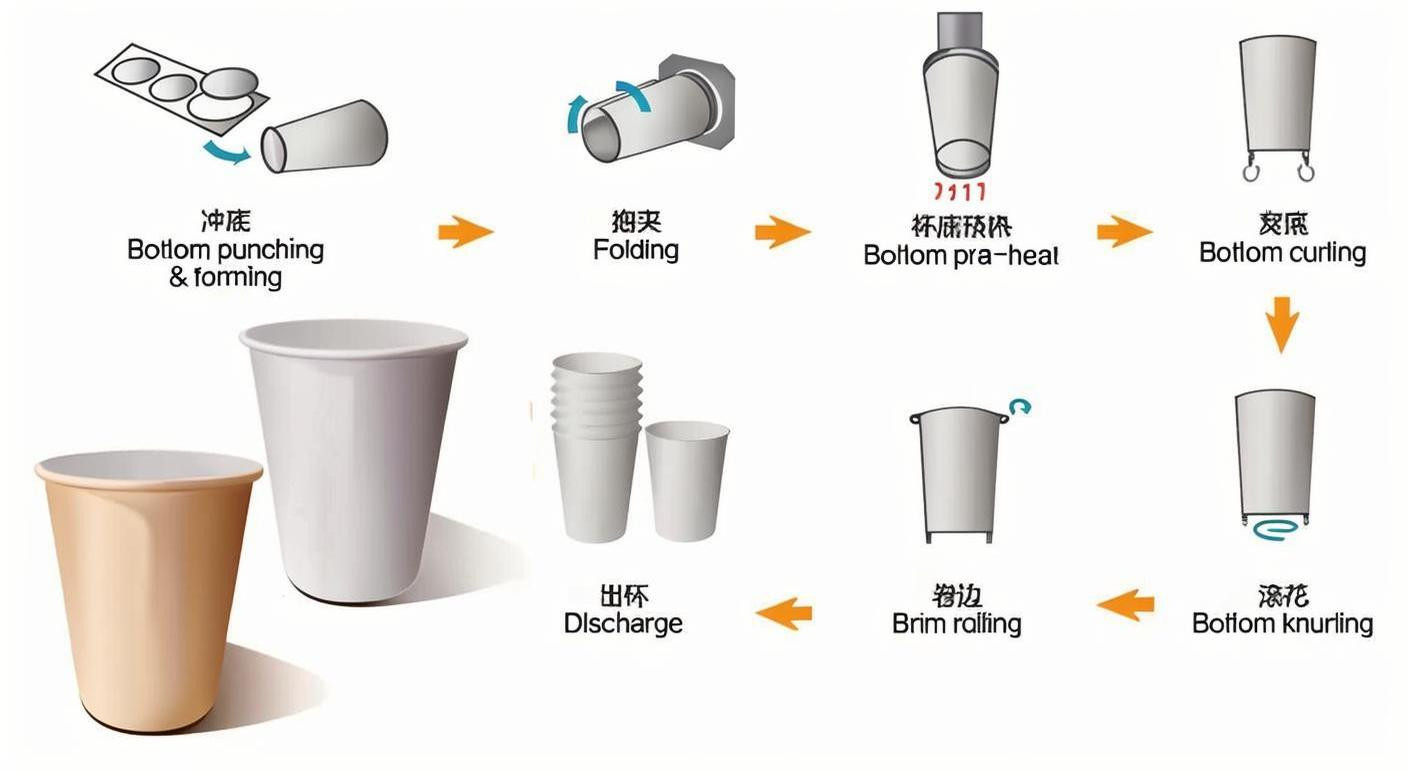

This mechanical medium‑speed paper cup machine is cam‑driven for stable operation. It completes paper feeding, forming, glue dispensing, bottom sealing and rim curling automatically. Featuring moderate running speed, low failure rate and cost‑effective performance, it is ideal for mass‑production of disposable paper cups.

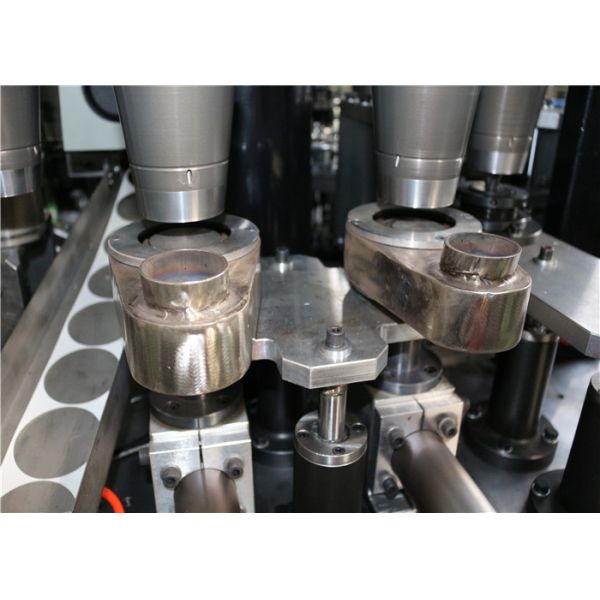

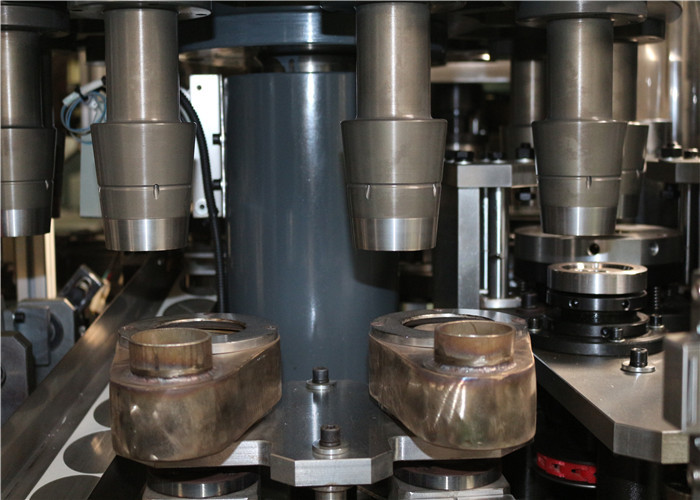

Details: paper cup machine

PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN


PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
Product Description of paper cup machine

MODEL

SMD-90 PAPER CUP MACHINE

Speed

90-100 PCS/MIN

Cup size Range

2-24 oz

Material

Single and Double PE coated paper

Paper request Gram

135-450GSM(single and double PE coated paper)

Heating system

Hot air system (from Switzerland)

Output

380V/220V 16 KW,50HZ, Three Phase four wire

Air compressor

0.5 M³/Min

Net weight

4 TONS

Machinery Size

2500 ×1800 ×1700 MM

Counter Size

900 ×900 ×1760 MM



Cup size range

Top diameter: 60-115 mm
Bottom diameter: 50-80 mm
Height:65-180 mm
Bottom height: 5-10 mm


Output



You can create more than 70000 piece paper cup more than normal speed machine as profit each mouth


Production Line

PLC Controled Hot Air System High Speed Paper Cup Machine With 90-100 PCS/MIN
