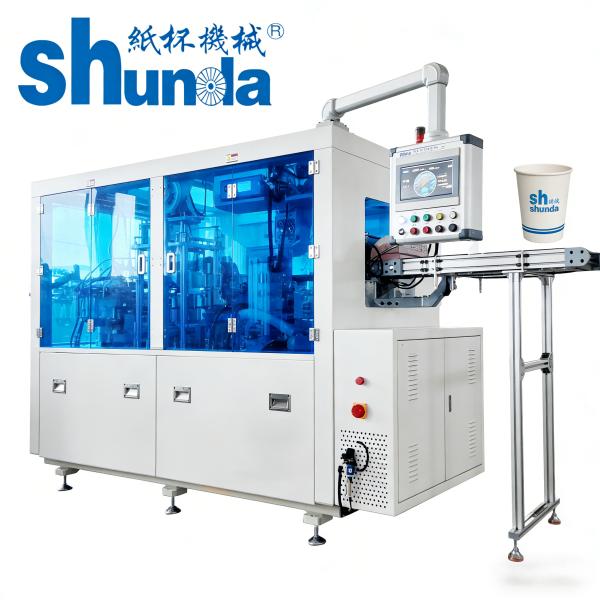

160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks
Specifications
Brand Name :
Shunda
Model Number :
HSM-200
Place of Origin :
China
MOQ :
1 SET
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
20 SETS per month
Delivery Time :
30 working days after received your payment
Packaging Details :
wooden pallet for paper cup machine
Product Name :
High speed Servo Paper cup machine
Color :
white or customized
CUP Thickness :
0.3-0.47 MM
Speed :
100-145pcs/min
Material :
Single/Double PE coated paper
Extra :
Can connect with inspection system
AIR COMPRESSOR :
0.5 M³/Min
Size :
2500*1300*2000
Description

160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks

Advantage:

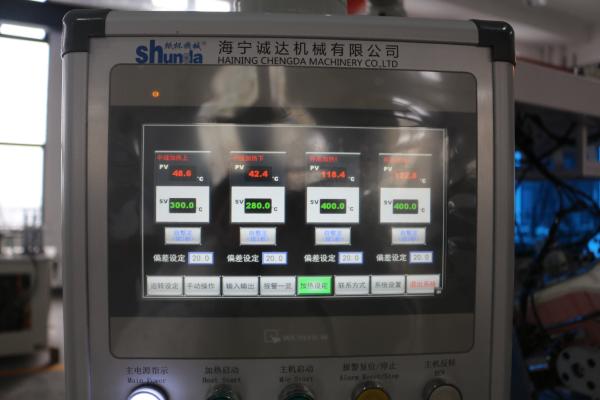

1.It has 4 sets of original imported hot air system heater guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3. High quality photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.4 Servo motors control the whole production

160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks


Product Description of Automatic Middle Speed Paper Cup Machine for Hot and Cold Drink Cup

Model HSM-200
Capacity pcs/min 130-150 140-160 130-150
Cup Size Range mm(max) D1:40 (min) D1: 100 D1: 100
D2: 35 (min) D2:80 D2:80
H:45 (min) H: 140 H: 170
Suitable Paper gsm 135-450
Paper Type / Single/Double PE-coated Paper, PLA Plastic Free Paper
Rated Power KW 380V/220V,60HZ/50HZ, 25KW
Air Compressor / 0.4 M³/Min 0.5MPA
Net Weight Kg 3300
Machine Dimension mm 2500*1400*2000
Collector Dimension mm 1000*900 *1760

160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks


Finished Cups
160 pcs/Min Servo Paper Cup Machine with Hot Air & Ultrasonic Sealing, Ideal for Cold Drinks

FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
