CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
Specifications
Delivery Time :
15 work days
Max Sheet Size :
800×1140mm
Sheet Gram :
40-210g/㎡
Dimensions(L×W) :
4.8×1.65m
Weight :
2.4T
Supply Ability :
3 sets/month
Brand Name :
HXCP
Payment Terms :
T/T
Price :
USD 63000 per set
Place of Origin :
China
MOQ :
1 set
Packaging Details :
Vacuum packing with export wooden case.
Min Sheet Size :
200×150mm
Mechanical Speed :
210m/min
Power Consumption :
8.5kW
Stacking Height :
0-1200mm
Model Number :
CP80/4K-F
Description

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

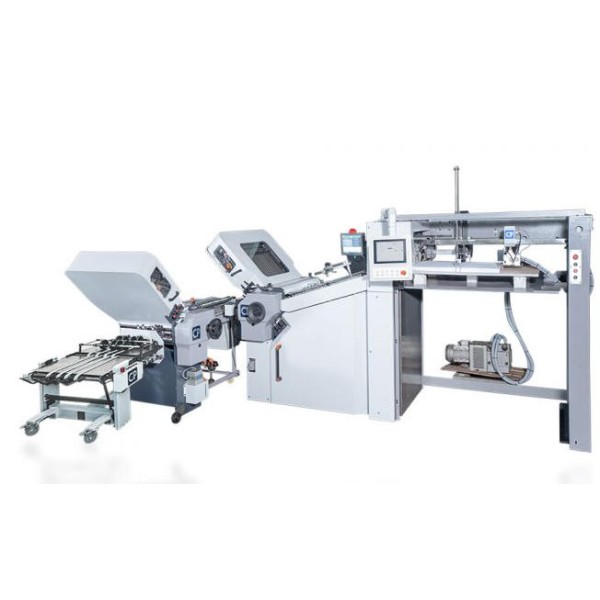

CP80/4K-F Gantry Pallet Buckle Folding Machine
Max Sheet Size 800×1140mm
Min Sheet Size 200×150mm
Sheet Gram 40-210g/㎡
Mechanical Speed 210m/min
Power Consumption 8.5kW
Dimensions(L×W) 4.8×1.65m
Weight 2.4T

Description:

High-Speed Gantry Pallet Buckle Folding Machine is mainly used for medium to large circulations as well as for large formats. The sheets on the pallet to be folded are run into the feeder by means of a pallet truck directly from the printing press with no manual intervention. Gantry Pallet Buckle Folding Machine are specially designed for the requirements of industrial signature production. Increase the output by using the buckle folding method with up to three folding stations and a maximum of six buckle plates. The folding quality and process stability are retained.

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

3 hole PU suction wheel

Easier To Suck And Separate Paper
More Stable And Smooth
Also Capable Of Handling Thin Paper

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

Special Steel rollers

Soft polyurethane section provides superior traction, holds excellent register, prevents marking；
patent fine & straight grain;
also capable of handling thin paper fold

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

Electrical Box

Selected world-renowned brand of electrical components

Clear and rigorous layout of electrical box

Guarantee of stable and durable operation

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

Flat Pile Feeder

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

Scratch-Proof,
Capable Of Folding Surface Sensitive Pages

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

Sheet Detector System

Double sheet, paper jam, blind-sheet diagnostic, features mechanical touch switch, which makes the emergency stop more stable and precise
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
Noiseless Air Pump
Imported from German, deduct noise effiently
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
Advanced Electronic Sensor
It can effectively monitor color pages, dark ink and other printed materials
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
Germany Special helical Gears
Deducting wear and tear, more durable, more stable
CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
Automatic Lubrication Device
Automatic monitor machine running status, automatic refill lubrication oil if needed, low maintenance is required, ensuring the smooth operation of the folding machine

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical PartsCP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts

CP80/4K-F Gantry Pallet Buckle Folding Machine With Scrach Proof Buckle and Imported Famous Brand Electrical Parts
