Specifications
Price :
USD 61000 per set
MOQ :
1 set
Model Number :
CP80/4KLL-F
Delivery Time :
15 work days
Max Sheet Size :
800×1140mm
Place of Origin :
China
Min Sheet Size :
200×150mm
Dimensions(L×W) :
4.8×1.65m
Weight :
2.3T
Brand Name :
HXCP
Mechanical Speed :
210m/min
Sheet Gram :
40-210g/㎡
Payment Terms :
T/T
Packaging Details :
Vacuum packing with export wooden case.
Supply Ability :
3 sets/month
Stacking Height :
0-1200mm
Power Consumption :
8.5kW
Description

CP80/4KLL-F Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly




Description:

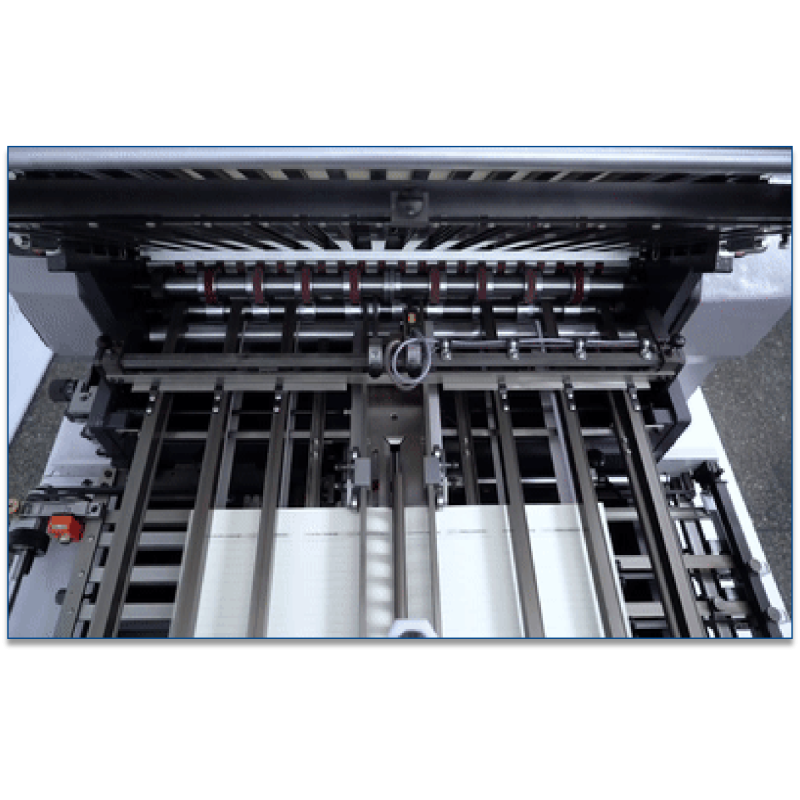

High-speed Gantry Pallet Folding Machine is mainly used for medium to large circulations as well as for large formats. The sheets on the pallet to be folded are run into the feeder by means of a pallet truck directly from the printing press with no manual intervention. All in all, the gantry pallet feeder provides high production capacity – with shortest interruptions for feeding by pallets. More precisely, you can transport the entire printed pallet from the delivery of the printing press into the feeder of the folder. The physical strain for the operator is low even if large signature formats have to be processed.

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

3 hole PU suction wheel

Easier To Suck And Separate Paper
More Stable And Smooth
Also Capable Of Handling Thin Paper

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

Special Steel rollers

Soft polyurethane section provides superior traction, holds excellent register, prevents marking；
patent fine & straight grain;
also capable of handling thin paper fold

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

Electrical Box

Selected world-renowned brand of electrical components

Clear and rigorous layout of electrical box

Guarantee of stable and durable operation

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

Gantry Pallet Feeder

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

Scratch-Proof,
Capable Of Folding Surface Sensitive Pages

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

Electronic Knife

Electric knife with imported servo motor system, which is more precise, more efficient and more durable.
CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

Sheet Detector System

Double sheet, paper jam, blind-sheet diagnostic, features mechanical touch switch, which makes the emergency stop more stable and precise
CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly
Noiseless Air Pump
Imported from German, deduct noise effiently
CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly
Advanced Electronic Sensor
It can effectively monitor color pages, dark ink and other printed materials
CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly
Germany Special helical Gears
Deducting wear and tear, more durable, more stable
CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly
Automatic Lubrication Device
Automatic monitor machine running status, automatic refill lubrication oil if needed, low maintenance is required, ensuring the smooth operation of the folding machine

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding DirectlyCP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly

CP80/4KLLF Gantry Pallet Combination Folding Machine Scrach Proof Buckle From Print Press To Folding Directly
