Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Specifications
Rated Voltage :
1500V
Rated Current :
30A
Shape :
Round
Protection Degree :
IP67
Connector Type :
Adaptor
Warranty :
2 Years
Name :
Mc4 Solar Cable Connector
Transport Package :
Standard Export Carton
Specification :
2.5/4/6mm2 Or 14/12/10AWG
Trademark :
Golden or netural, or customer brand
Origin :
China
HS Code :
8537209000
Supply Ability :
5000/Month
Pin :
2 Pins
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Terminal Material :
Copper
Interface Type :
DC/DC
Product Name :
Mc4 Solar Connector
Model Number :
PV005
Customization :
Available | Customized Request
Place of Origin :
China
Brand Name :
Golden Electric /OEM
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Description

Product Description

Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection

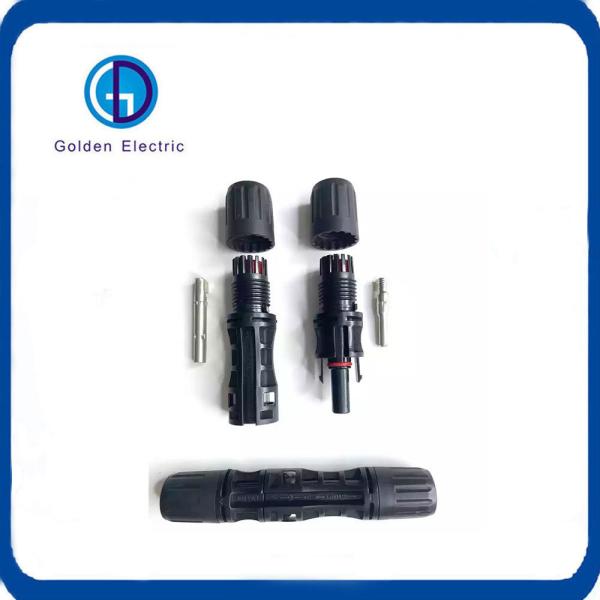

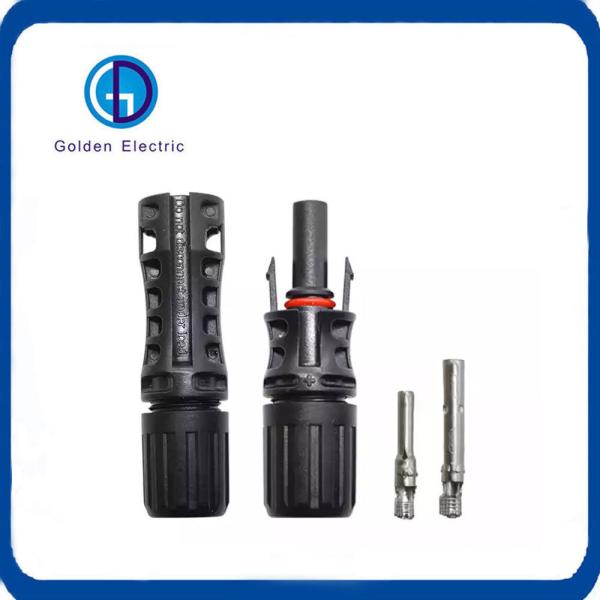

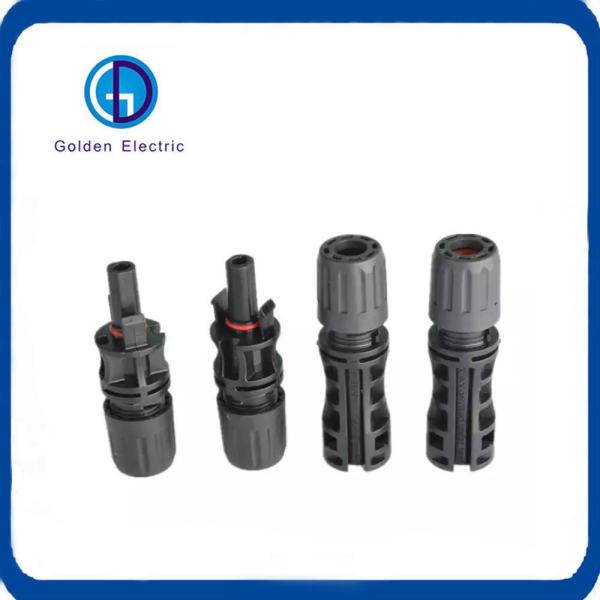

MC4 Solar Panel Cable Connectors with Assembly Tool,10 Pairs Copper Solar Wire Adapter Male/Female Waterproof Connector for Connecting Solar Panels 1500V 30A.

Possess excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, to meet the outdoor longterm use under harsh environmental conditions require.

Excellent sealing performance, waterproof and dustproof rating up to IP67.
Male and female head swap with a self-locking, electrical connections fully reliable, open and close freely.
Has broad applicability, can be inserted with the MC4 and match each other completely.

Product Features

Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
There is a waterproof ring inside, resist water lekage, protection degree IP67
Security card buckle, Interface closely, Convenient assembly.
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
The joint of connector, insulation design, prevrnt to get an electric shock
It has a thickened copper core, Safer and more durable.
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection


Product Parameters

Type
PV005
Rated Voltzge
1500V DC
Rated Current
30A
Standard
IEC 62852:2014
Protection Degree
IP67
Contact Resistance
≤0.3mΩ
Contanct Materials
Tin platde copper
Ambient Temperature
-40ºC~+ 85ºC
Cable Cross Section Area
2.5/4/6mm²
Flame Class
UL94 V-0




Product Details




Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection

1.Wire stripping 6mm-7mm, careful not to cut off the wire
2.Crimping,press all copper wire into the copper connector
3.Insert the cable with copper conductor into the connector body
4.Tighten the nut and be careful not to tilt.
5. The male and female completes the butt joint
6.Connector cables

Recommand Product

Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection

Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection
Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection

Wear Resistant MC4 Chassis Connector 1500V DC 30A with Lightning Protection


Company Profile


- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Wind Turbine, Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.




FAQ


1)Q:How can i trust your company?
 A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the MC4 connector guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for MC4 Connector.
7) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8) Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
