Description

Product Description

High Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems

Advantages of Solar Connector:

•Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to solar connector directly
•High mechanical endurance
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP68
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor
application
•Approved by TUV
High Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems
The shell is made of high-strangth PC plastic
High heat resistance flame retardant
wear-resisting resistance to pollution
Brand of raw materials:
SABIC
Innovative
plastics TM
High quality lock head
Exquisite,strong, sealing ,insulation
With thick copper inner core
Tin-plating surface treatment, prevent oxidation,Conductivity is better
High Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems
High Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems
Waterproof and dustproof, waterproof grade:IP68 Anti-UV.use life:25years

Product Parameters

Type:PV004
Electrical Features:
Rated Current
22A(2.5mm2), 35A(4mm2),40A(6mm2)
Withstanding Voltage
1500V DC(IEC),1000V/1500V DC(UL)
Contact Resistance
≤0.3mΩ
Protection Class
Class II
Mechanical Features:
Temperature Range
-40 ºC~+90ºC
Protection Degree
IP2X,unmated;IP68,mated
Wire Size Range
2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force
200 Newton
Material Features:
Insulation Material
PC
Contact Material
Copper,Tin plated
Flame Class
UL94-V0 or UL94-5VA

Assembly instructions for connector of PV004

High Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems
•During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions
described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
•The end product must provided protection from electric shock
•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by
switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
•Disconnected connectors should be protected from dirt and water with sealing caps.
•Plugged parts are watertight IP68
Assemble the cable and connector
High Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems
(Picture 1&2)
Push the crimped contact into the socket resp.Plug insulator until it engages .
Pull lightly on the lead to check that the metal part has engaged.
Screw on the cable gland ,hand-light,with the tools PV-STX,tightening torque about:2.2Nm.

Plugging

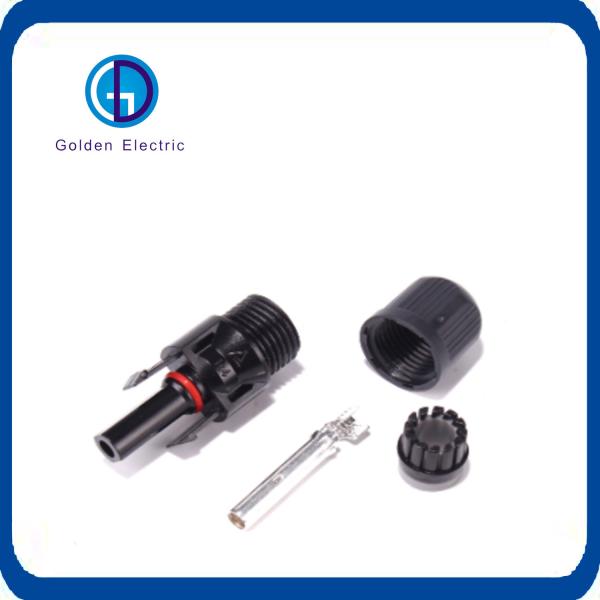

High Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems
(Picture3)
Mount the connector together until they engage.
Check correct engagement by Pulling on the coupling.

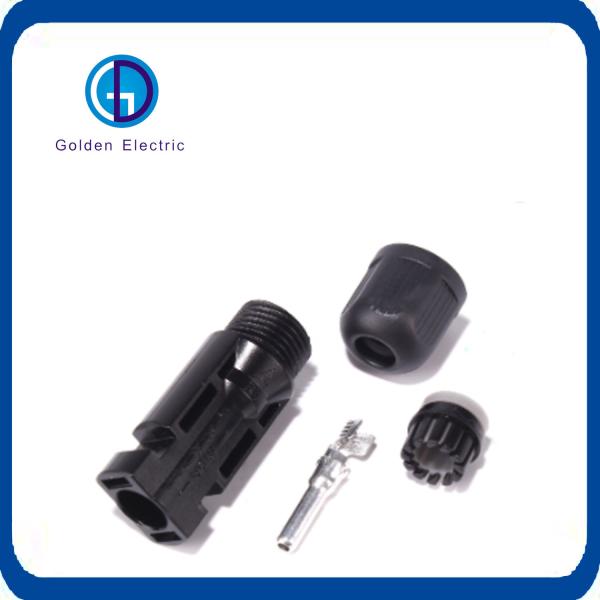

UnpluggingHigh Flexibility Solar MC4 Connector Female And Male For Solar Energy Systems
(Picture 4&5)
Compress the two snap-in springs by hand or with PV-STX tool and separate the coupling
