X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness
X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness
X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness
X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness
X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness
X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness
Specifications
Brand Name :
MYT
Model Number :
6000X
Place of Origin :
China
MOQ :
1
Price :
Pricing is negotiable based on order quantity
Payment Terms :
TT, LC
Supply Ability :
1000 units per month
Delivery Time :
10 work days
Working system :
Digital phased array (azimuth scanning+elevation scanning)/pulse Doppler
Working band :
X
Effective detection range :
100m～5.0km（UAV; RCS=0.01㎡）
Azimuth coverage :
360°
Certification :
CNAS、CMA、CAL、ILAC-MRA
Description

High Flexibility and Cost-effectiveness Anti UAV Radar X band for Long Range Detection and Easy Installation

1, Product overview

The 6000X is mainly composed of one radar array, one mechanical turntable, and one power adapter. It is used for the detection, surveillance, and target indication of micro/small civilian drones in key areas such as borders, perimeters, airports, and military bases.

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

2, Products parameter:

Working system Digital phased array (azimuth scanning+elevation scanning)/pulse Doppler
Working band X Band
Effective detection range 100m～5.0km(UAV; RCS=0.01㎡)
Azimuth coverage 360°
Elevation coverage 40°
Detection speed 0.5m/s～75m/s
Azimuth accuracy ≤0.5°
Pitch accuracy ≤1.0°
Distance accuracy ≤10m
Data rate ≥0.2Hz
Data interface RJ45/1 1CH Ethernet 10/100M port
Input power ≤350W(power dissipation) AC200-AC240(input)
Working temperature -40℃～+55℃
Weight (N.W) ≤32kg(Whole device with 360° electric rotary)

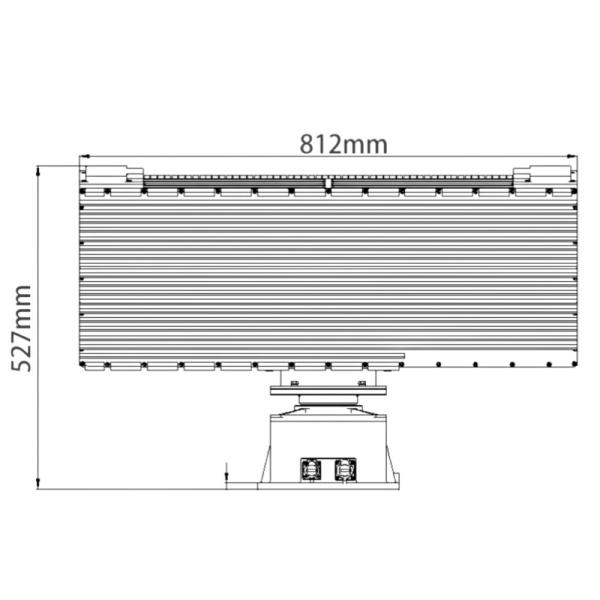

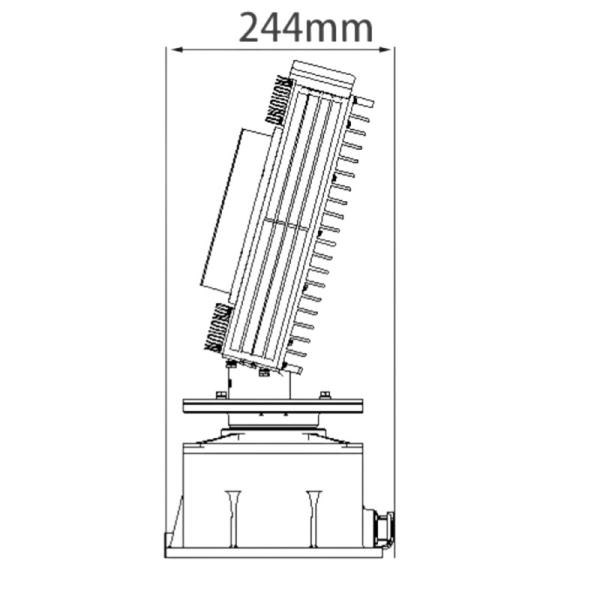

4, Product dimension:

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

5, After-Sales service

1) We offer 24 hours service after sales

2) If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.

3) Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.

4) This PI is applicable to the DDP shipping agreement.

6,Buesiness Partner

Afreican Parks Counter-UAV Strategic Partnership

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

7, Certification Certificate

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectivenessX Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness

8, Paking and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.

X Band Anti UAV Radar Easy Installation and Long Range Detection with High Flexibility and Cost-effectiveness
