Specifications
Brand Name :
MYT
Model Number :
3100X
Place of Origin :
China
MOQ :
1
Price :
Pricing is negotiable based on order quantity
Payment Terms :
TT, LC
Supply Ability :
1000 units per month
Delivery Time :
10 work days
Working band :
X band
Range of Radar :
3.1km
Azimuth accuracy :
≤0.8°
Pitch accuracy :
≤1.0°
Distance accuracy :
≤10m
Data rate :
≥0.2Hz
Certification :
CNAS、CMA、CAL、ILAC-MRA
Description

Anti UAV Radar for Civilian Drone Detection and Target Indication Digital Phased Array X Band Radar 3.1km Range 360° Coverage High Accuracy 24/7 After-Sales Service

1, Product overview

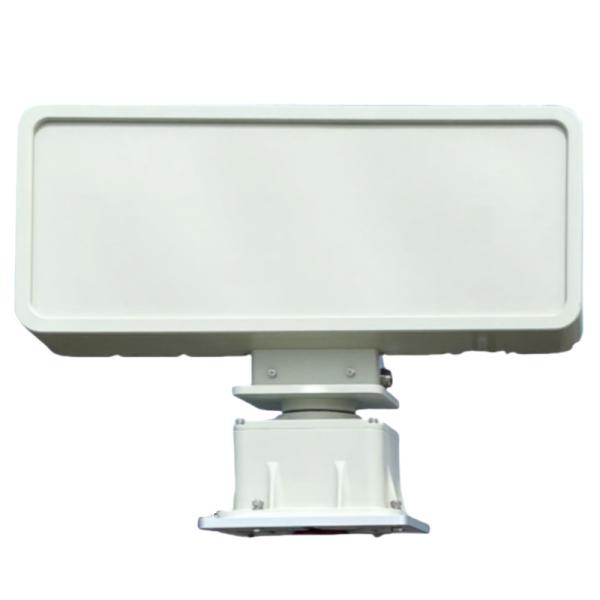

The 3100X is a device designed for detecting, surveilling, and indicating targets of micro/small civilian drones in key areas like prisons, exhibitions, and military bases. It is primarily composed of a radar array, a mechanical turntable, and a power adapter. This device can accurately provide information on target trajectories, including direction, distance, altitude, and speed.

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

2, Products parameter:

Working system Digital phased array (azimuth scanning+elevation scanning)/pulse Doppler
Working band X Band
Range of Radar 3.1km
Effective detection range 100m~2.0km(UAV; RCS=0.01㎡)
Azimuth coverage 360°
Elevation coverage ≥40°
Detection speed 0.5m/s~30m/s
Azimuth accuracy ≤0.8°
Pitch accuracy ≤1.0°
Distance accuracy ≤10m
Data rate ≥0.2Hz
Data interface RJ45/1 1CH Ethernet 10/100M port
Input power ≤200W(power dissipation) AC200-AC240(input)
Working temperature -40℃~+55℃
Weight (N.W) ≤30kg(Whole device with 360° electric rotary)

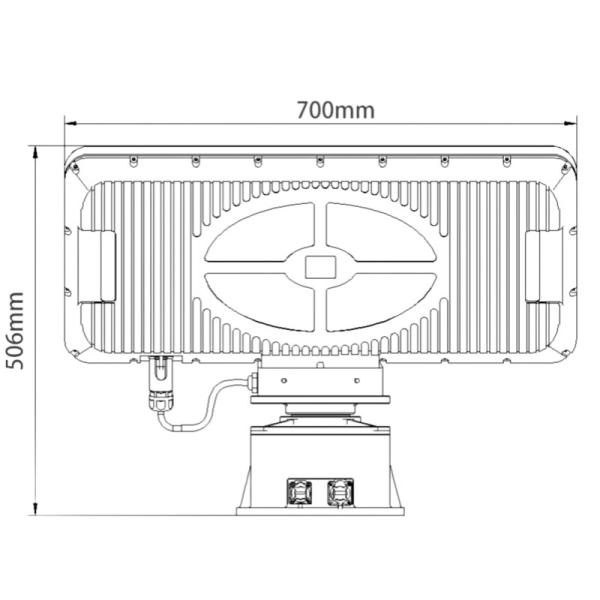

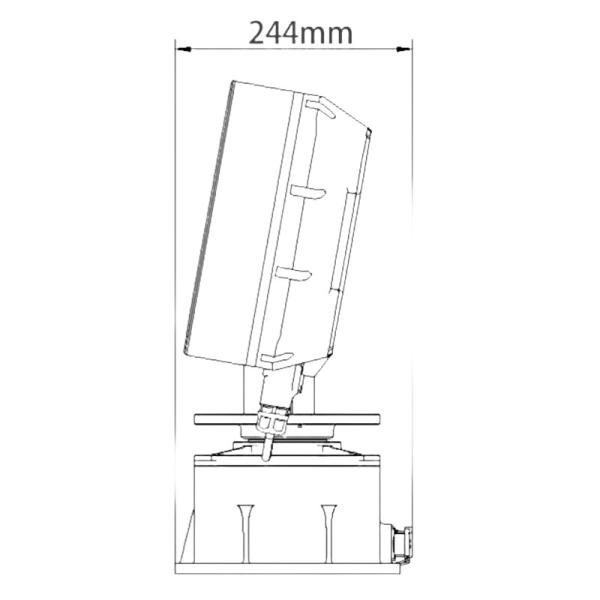

4, Product dimension:

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

5, After-Sales service

1) We offer 24 hours service after sales

2) If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.

3) Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.

4) This PI is applicable to the DDP shipping agreement.

6,Buesiness Partner

Afreican Parks Counter-UAV Strategic Partnership

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

7, Certification Certificate

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.

High Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target IndicationHigh Accuracy 24/7 After-Sales Service Anti UAV Radar for Civilian Drone Detection and Target Indication

8, Paking and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
