100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
Specifications
Brand Name :
MYT
Model Number :
1.5g 2.4g 5.8g 100W anti drone module
Place of Origin :
China
MOQ :
1
Price :
Pricing is negotiable based on order quantity
Payment Terms :
TT,LC
Supply Ability :
1000units per month
Delivery Time :
10 work days
Certification :
CNAS、CMA、CAL、ILAC-MRA
Frequency :
433mhz, 800mhz, 900mhz, 1.2G, 1.4G, 1.5G, 2.4G, 5.2G, 5.8G
Power :
10W, 20W, 30W, 40W, 50W, 100W
Supply Voltage :
24/28/32 V
Product Size :
200*110*24mm
Description

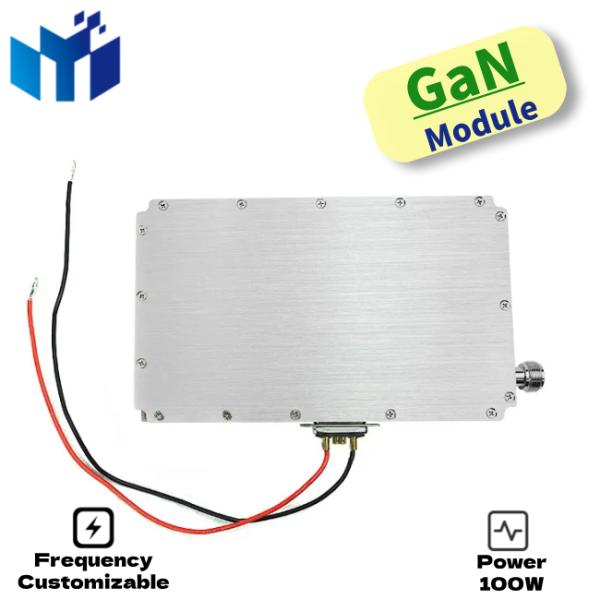

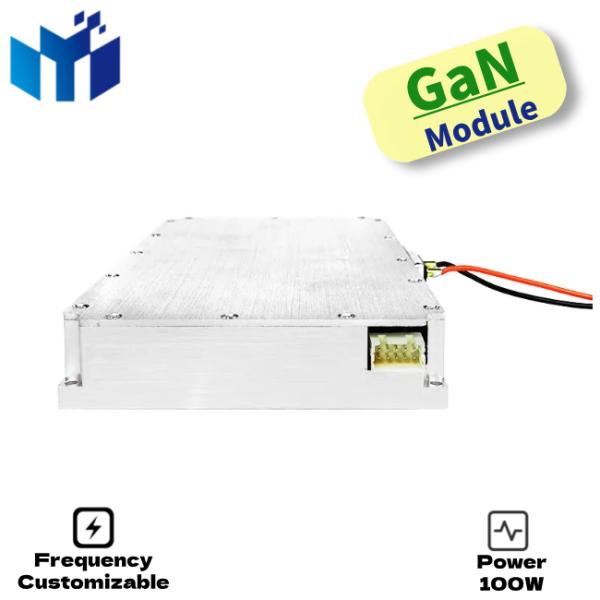

100W UAV Signal Jammer Module
This high-power 100W anti-UAV signal jammer module offers customizable output power and frequency configurations for professional drone defense applications.
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
Technical Specifications
Item Data Unit Notes
Frequency 1560-1620 MHz
Work Temperature -20~+70 ℃
Max Output Power 100 W
dBm 0-10dbm Optional. Regular type with VCO inside no need input power
Work Voltage 24-28 V
Max Gain 50 dB
Max Current 10 A
Impedance 500
Output Connector N/F Customized
Power Amplifier Efficiency 45% When Max Output
Switch Control high/low V 24-28V level current Or Customized
Standing Wave OK Protection
Temperature Protection 75° ℃
Size 200*110*24 mm
Weight 0.88 Kg
After-Sales Service
Lifetime free model library upgrades, professional 24/7 online service, customizable colors and languages.
Certifications
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
Company Profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, achieving 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems.
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
Partnership Portfolio
Our products are designed for a variety of public safety scenarios and have long provided customized product services to the and public safety departments, earning an excellent reputation in practical operations.
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming 100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
Packaging and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of global regions.
100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming
