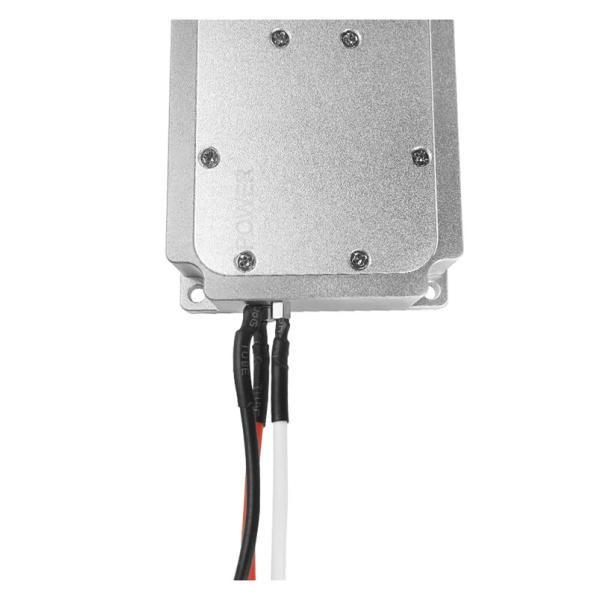

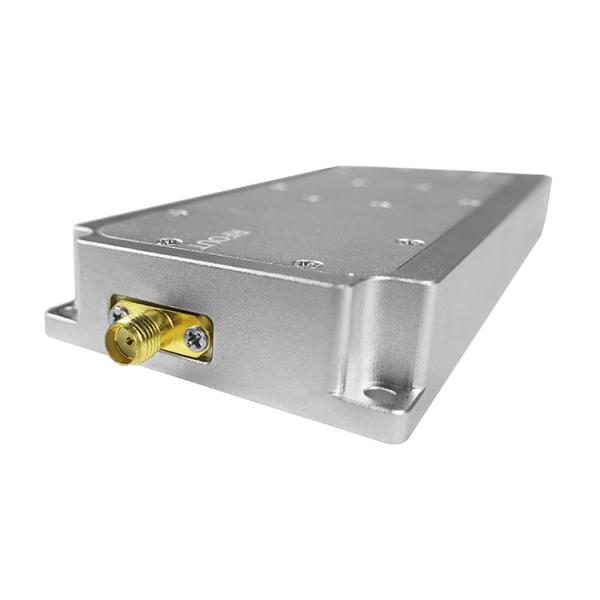

5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
Specifications
Brand Name :
MYT
Model Number :
5.2GHz 5.8GHz 20W 30W Anti Drone Module
Place of Origin :
China
MOQ :
1
Price :
Pricing is negotiable based on order quantity
Payment Terms :
TT,LC
Supply Ability :
1000units per month
Delivery Time :
10 work days
Certification :
CNAS、CMA、CAL、ILAC-MRA
Frequency :
433mhz, 800mhz, 900mhz, 1.2G, 1.4G, 1.5G, 2.4G, 5.2G, 5.8G
Power :
10W, 20W, 30W, 40W, 50W, 100W
Supply Voltage :
24/28/32 V
Product Size :
140*53*16mm
Description
Product Overview
High-performance 5.2GHz/5.8GHz 20W/30W Anti-Drone UAV GPS Signal Jammer Blocker Module from professional manufacturers and suppliers.
Key Features
  • Customizable frequency range from 5000-6000MHz
  • Comprehensive 100% aging testing before delivery
  • Additional frequency options: 433MHz, 900MHz, 1.2GHz, 1.3GHz, 1.5GHz, 2.4GHz, WIFI6G, FPV special frequency
  • Cost-effective drone jamming solutions
  • Professional anti-drone signal jammer module technology
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
Technical Specifications
Parameter Value Unit/Notes
Frequency Customized 5GHz
Work Temperature -40~+65 ℃
Max Output Power 20 W
Work Voltage 24/28/32 V
Max Gain 43 dB
Flatness ±3 dB
Max Current 1.9 A
Output VSWR ≤1.5
Output Connector SMA/F 502 customized
Power Amplifier Efficiency 43.8% when max output
Switch Control 0V off /0.6 on level current
Size 140*53*16 mm
Weight 0.243 Kg
After-Sales Service
Lifetime free model library upgrades, professional 24/7 online service, customizable colors and languages.
Certifications
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
Company Profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, achieving 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems.
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
Partnership Portfolio
Our products are designed for a variety of public safety scenarios and have long provided customized product services to the and public safety departments, earning an excellent reputation in practical operations.
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
Packaging and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of global regions.
5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
