1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
Specifications
Brand Name :
MYT
Model Number :
1.5G 1.5Ghz 50W GAN Anti Drone Module
Place of Origin :
China
MOQ :
1
Payment Terms :
TT,LC
Supply Ability :
1000units per month
Delivery Time :
10 work days
Certification :
CNAS、CMA、CAL、ILAC-MRA
Price :
Pricing is negotiable based on order quantity
Frequency :
433mhz,800mhz,900mhz, 1.2G,1.4G,1.5G,2.4G,5.2G,5.8G
Power :
20W,30W,40W, 50W,100W
Supply Voltage :
DC 27-28V+
Length :
117.1*25.6*16mm
Description
1.5GHz 50W GaN Power RF Detection Module for Anti-Drone Systems
High-performance 1.5GHz 50W GaN power RF detection module designed for counter-UAS applications, compatible with Autel, Mavic, FPV, and DJI drone countermeasure systems.
Functional Highlights
  • Utilizes domestic core components with operational temperature range of -10°C to +55°C
  • Comprehensive technical specifications for 1.5GHz 50W power amplifier module design and verification
  • Applicable for all product design, verification, production, and quality inspection phases
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
Technical Specifications
Test Item Indicator Remark
Frequency Range 1.5GHz Built-in interference source
Working Voltage 30V 24-32V
Max Output Power 45±0.5dBm 1.5G 50W
Working Efficiency ≥60%
Gain 45±1dB peak-to-peak value
Passband Ripple ≤2dB peak-to-peak value
High-Low Temperature Test Working Temperature -10~ +55°C (can start at low temperatures)
Gain Stability ±1.5
Power Stability ±1.5
Power supply requirements ≥3.7A Continuous wave output 50W

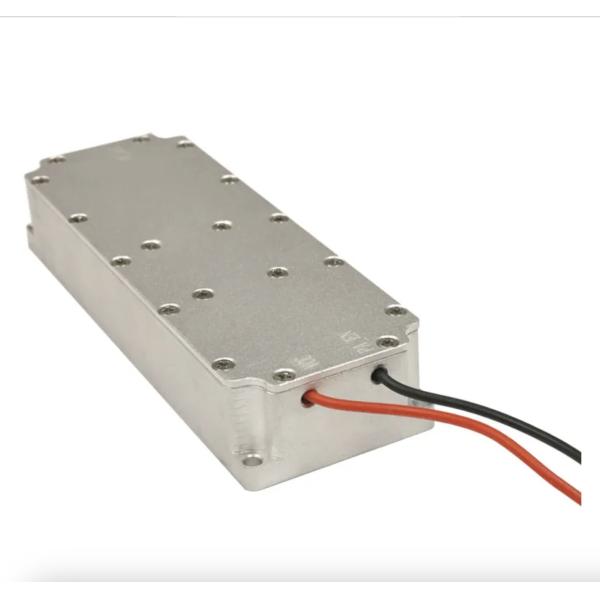

Power supply interface Red + and black-

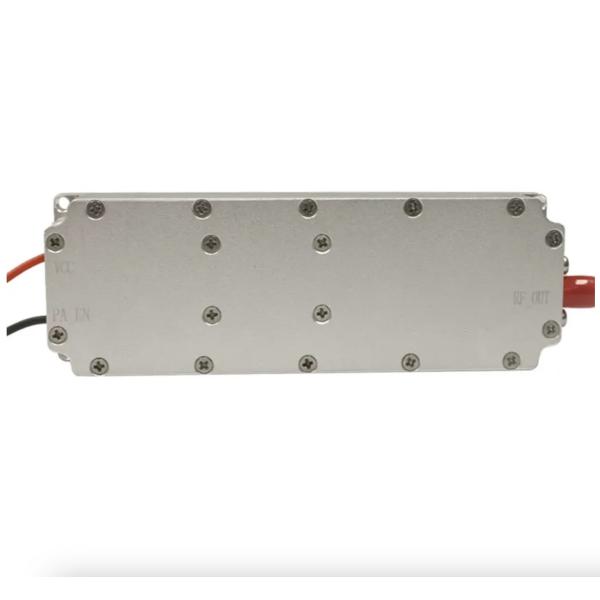

Enable White line high level on, low level off

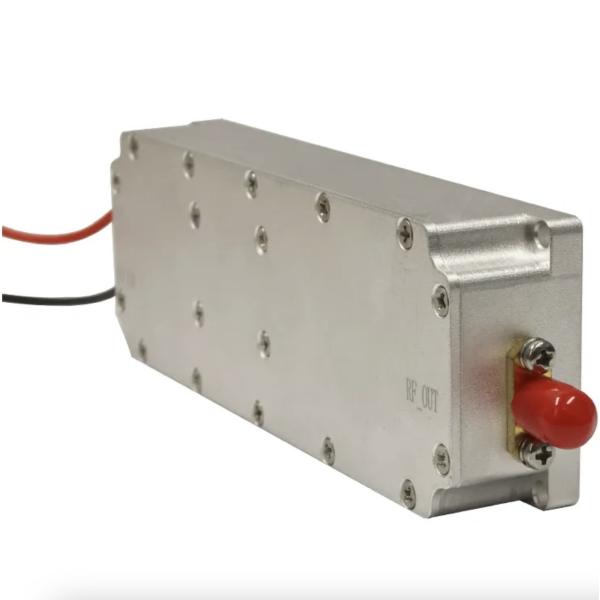

RF Connector SMA SMA external screw base
Size 37.3*112*19.5mm Excluding SMA
Weight 136g
After-Sales Service
Lifetime free model library upgrades, professional 24/7 online service, customizable colors and languages.
Certification & Quality Assurance
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
Company Profile
Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging robust scientific research capabilities and industry expertise, MYT technology is dedicated to pioneering advancements in national security through IoT and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture that facilitates seamless integration of electromagnetic, optoelectronic, visual, and location data for comprehensive three-dimensional defense systems.
Our mission enables intelligent detection, behavior analysis, situation assessment, and precise response across all security facets within ground and low-altitude environments, transitioning from passive to active defense strategies.
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
Partnership Portfolio
Our products are designed for various public safety scenarios and have long provided customized product services to and public safety departments, earning an excellent reputation in practical operations.
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
Packaging and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of global regions.
1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems 1.5Ghz 50W GaN RF Power Amplifier Module for Anti Drone and Jamming Systems
