Specifications
Brand Name :
MYT
Model Number :
5.8G 100W GaN Anti Drone Module
Place of Origin :
China
MOQ :
1
Payment Terms :
TT,LC
Supply Ability :
1000units per month
Delivery Time :
10 work days
Certification :
CNAS、CMA、CAL、ILAC-MRA
Price :
Pricing is negotiable based on order quantity
Frequency :
433mhz,800mhz,900mhz, 1.2G,1.4G,1.5G,2.4G,5.2G,5.8G
Power :
20W,30W,40W, 50W,100W
Supply Voltage :
DC 27-28V+

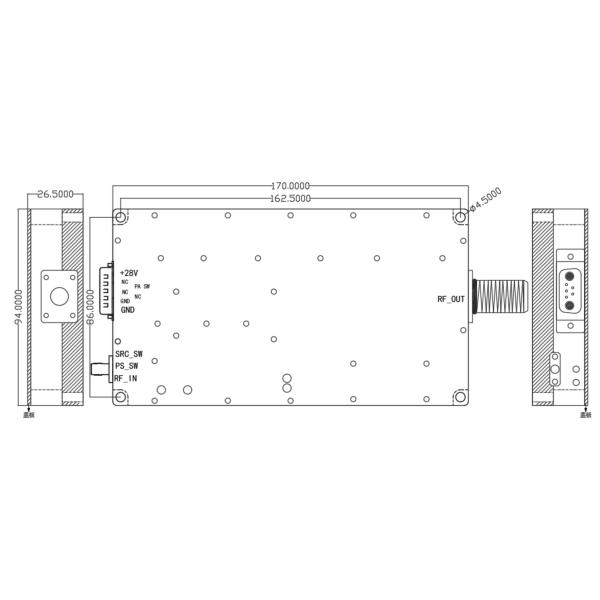

Dimensions :
170*94*26.5mm
Description
5.8G 100W GaN Anti Drone Module
Functional Highlights
  • Power supply: +30V via 7W2 (male) connector
  • RF input interface: SMA-KFD (optional)
  • RF output interface: N-KFD
  • Control interface with 7W2 (male) socket and feedthrough capacitors
  • Mounting: 4 Φ4.5mm through holes for M3 screws
5.8G 100W GaN Amplifier Anti Drone Module for Drone Counter Systems and RF Power Amplification 5.8G 100W GaN Amplifier Anti Drone Module for Drone Counter Systems and RF Power Amplification 5.8G 100W GaN Amplifier Anti Drone Module for Drone Counter Systems and RF Power Amplification 5.8G 100W GaN Amplifier Anti Drone Module for Drone Counter Systems and RF Power Amplification
Technical Specifications
Parameter Specification
Frequency 5725-5850MHz
Output Power 50dBm
In-band Group Delay ≤1µs
Power Gain 45±1.0 (external input 9dBm, power amplifier output 50dBm)
In-band Fluctuation ≤2.5dB (peak-to-peak value)
Input VSWR ≤1.35
Output VSWR ≤1.3
Supply Voltage (Typical) +30Vdc
Supply Voltage Range 24-36V
Supply Current +30Vdc@100W ≤6.5A
Output RF Connector N-50KFD
Dimensions 170x94x26.5mm (excluding connectors)
Built-in Features High-efficiency modulation sweep
Input Signal Source Internal signal source with external source capability
After-Sales Service
Lifetime free model library upgrades, professional 24/7 online support, with customizable colors and languages available.
