Specifications
Model NO. :
PC-4015-132
Compressive Strength (For Crushing) :
250-300MPA
Crushing Degree :
European Version of Rough Grinding
Finished Surface :
Thread Process
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000
Condition :
New
Color :
Per Stipulated
Capacity/(T/H) :
35-100t/H
Finished Particle Size/mm :
0-8mm
Transport Package :
Standard Container
Specification :
Industrial Standard
Trademark :
Dingbo Machinery
Origin :
Shanghai, China
HS Code :
84742090
Supply Ability :
100sets/Month
After-sales Service :
1year
Warranty :
1 Year
Type :
European Version of Rough Grinding
Application :
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Drive :
Electric
Crushing Style :
Grinding & Impact
Customization :
Available | Customized Request
Place of Origin :
China
MOQ :
1
Packaging Details :
Normal Packing Ls in Wooden Cases
Delivery Time :
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Description
Customized Request European Version of Rough Grinding Raymond Mill Mill EquipmentCustomized Request European Version of Rough Grinding Raymond Mill Mill EquipmentCustomized Request European Version of Rough Grinding Raymond Mill Mill EquipmentCustomized Request European Version of Rough Grinding Raymond Mill Mill EquipmentCustomized Request European Version of Rough Grinding Raymond Mill Mill EquipmentCustomized Request European Version of Rough Grinding Raymond Mill Mill EquipmentCustomized Request European Version of Rough Grinding Raymond Mill Mill EquipmentCrusher
Capacity: 35-100t/h
Uniform particle size
Easy operation
Reasonable price and timely delivery

Application

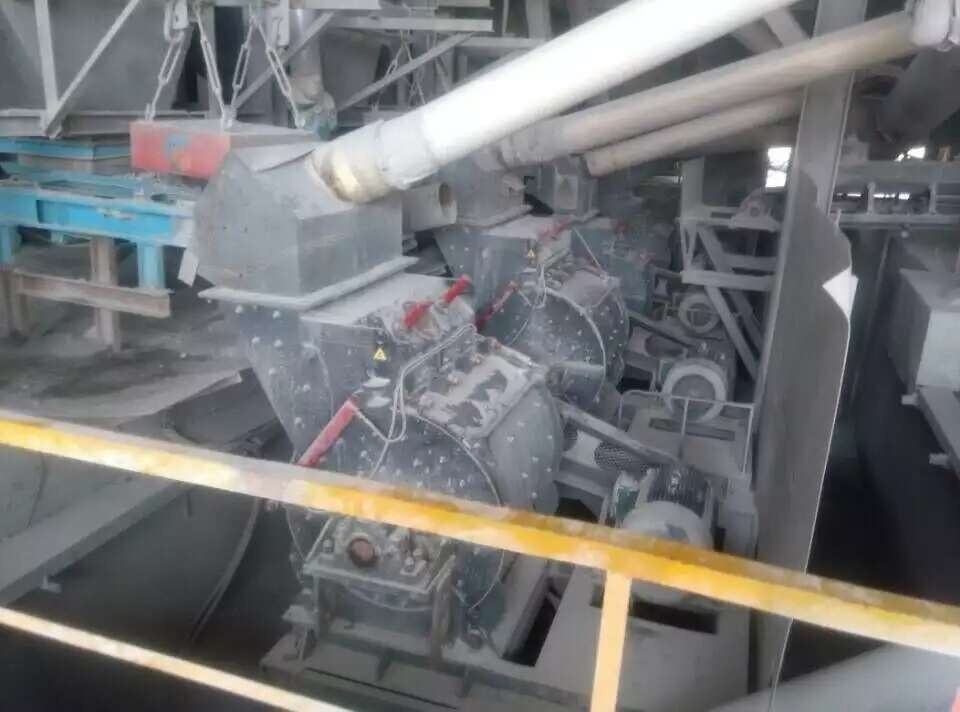

Crushing plant is applied to the intermediate crushing and fine crushing of materials in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.
Mainly for the comprehensive strength of materials should be not higher than 320 MPA.

Features
High manufacturing capacity and low power consumption
Uniform particle size with high crushing ratio
Simple structure
Easy operation and low investment
Working principle

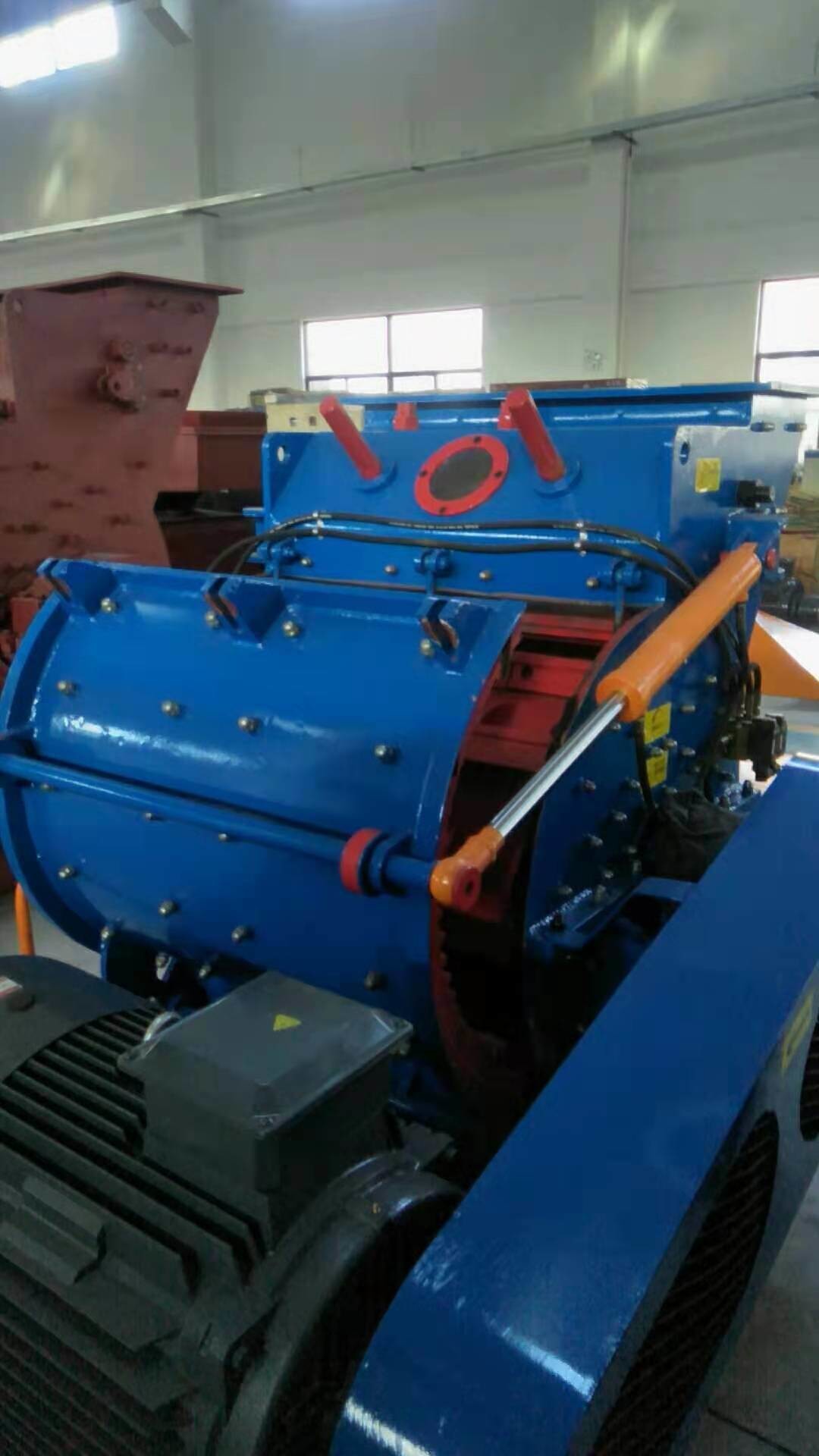

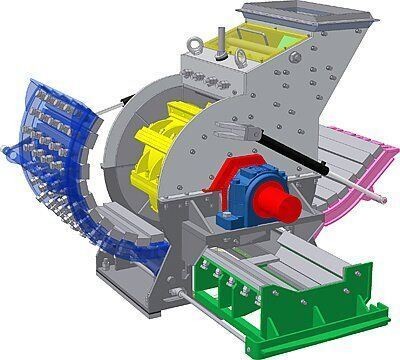

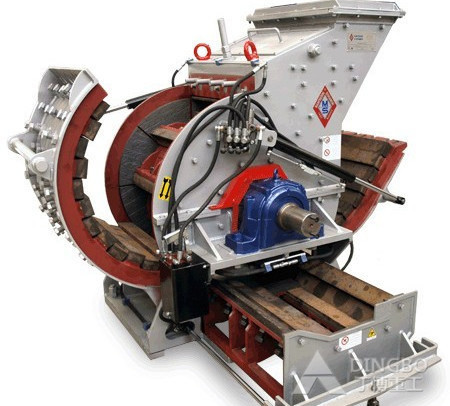

Crushing plant is mainly consists of frame, rotor, support iron and grate bars.
1. The frame is divided into two parts: Upper part and lower part, which are welded after being cut by steel plates. There is high manganese steels inside it, which is replaceable.
2. Rotor consists of the main shaft with several regularly grouped hammers, turn plate, pin shaft. Through the motor and triangle belts, the main unit drives the main shaft, and thereby drives the rotor.

3. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then the materials will be threw fiercely to the support iron, at this time, the materials will be crushed again.
4. The qualified materials will be screened out and exit from the gap of the Grate bars, then what about the unqualified? They will be left in the crushing cavity to be further hammered and ground until reach the standard size.
Type PC4008-75 PC4012-90 PC4015-132
Rotor Diameter/mm 750 900 1150
Rotor Width/mm 800 1200 1500
Rotor Speed/ ( r/min) 800-1000 800-1000 550-800
Max Feeding Size/mm <70 <90 <100
Finished Particle Size/mm ≤3 ≤3 ≤3
Capacity/( t/h) 35-50 50-70 70-100
Power/KW 55-75 75-90 110-132
Hammer Number 18 16 32
Layout Size(L*W*H/mm) 2310*1665*1610 2840*2100*2020 3720*2650*2540
