Specifications
Model NO. :
PYB600
Inlet Size :
300×1300mm
Condition :
New
Color :
as Clients Require
Size of Unit :
Small, Midium, Large
Installation :
Free Initial Installation at Home and Abroad
After Sales Service :
Maintenance and Replacement Service for One Year
Mining Object :
Metallic and Non-Metallic Ore Excavator
Transport Package :
Standard Container
Specification :
Enterprise Standard
Trademark :
Dingbo Machinery
Origin :
Shanghai China
HS Code :
8474209000
Supply Ability :
100sets/Years
Type :
Crushing Equipment
Motor Type :
AC Motor
Motor Power :
110kw
Application :
Construction
Materials :
Coal
Outlet Size :
18-48mm
Customization :
Available | Customized Request
Place of Origin :
China
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000
MOQ :
1
Packaging Details :
Normal Packing Ls in Wooden Cases
Delivery Time :
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment,
Description
Coal Materials Used in Enterprise Standard Type Spring Cone CrusherCoal Materials Used in Enterprise Standard Type Spring Cone CrusherCoal Materials Used in Enterprise Standard Type Spring Cone CrusherCoal Materials Used in Enterprise Standard Type Spring Cone CrusherCoal Materials Used in Enterprise Standard Type Spring Cone CrusherCoal Materials Used in Enterprise Standard Type Spring Cone CrusherCoal Materials Used in Enterprise Standard Type Spring Cone Crusher

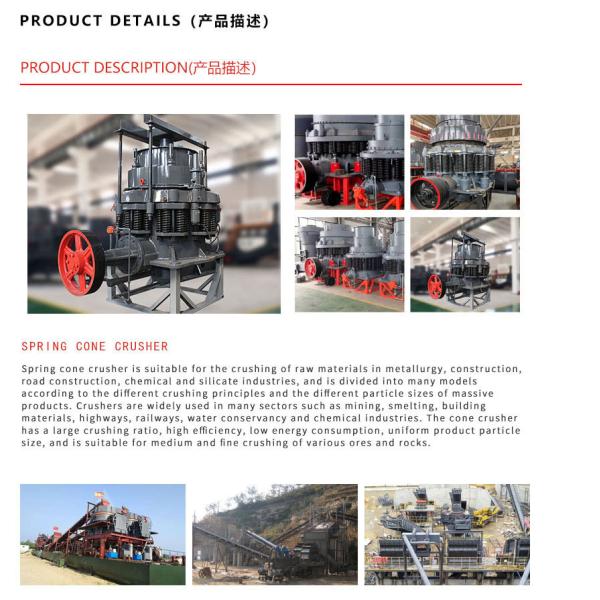

Briefly describe cone crusher
Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make surereliable performance. The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Working Principle of Cone crusher:
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the diacharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequantly the output size is determined.
Model Moving Cone Diameter
(mm)		 Feeding
Opening Size
(mm) 		Discharging Opening Size
(mm)		 Max Feeding Size
(mm)		 Capacity
(t/h)		 Eccentric
Rotation
Speed
(r/min)		 Electric Motor
Power
(kw)		 Weight
(t)		 OverallDimension (mm)
PYB600 600 75 12-25 65 12-25 356 30 5 2800× 1300× 1700
PYD600 40 2-13 35 5-23 5.5
PYB900
900		 135 15-50 115 50-90 333 55 11.2 3050× 1640× 2350
PYZ900 70 5-20 60 20-65 11.2
PYD900 50 3-13 50 15-50 11.3
PYB1200

1200		 170 20-50 145 110-168 300 110 24.7 4152× 2300× 2980
PYZ1200 115 8-25 100 42-135 25
PYD1200 60 3-15 50 18-105 25.6
PYB1750
1750		 250 25-50 215 280-480 245 160 50.5 6020× 2948× 4192
PYZ1750 215 10-30 185 115-320 51
PYD1750 100 5-15 85 75-230 50.5
PYB2200

2200		 350 30-60 300 590-1000 220 260-280 84 7705× 3432× 4842
PYZ2200 275 10-30 230 200-580 85
PYD2200 130 5-15 100 120-370 85
