Specifications
Model NO. :
CS Cone Crusher CS155 CS90
Inlet Size :
150×250mm
Condition :
New
Color :
White,Grey and Others
Motor Brand :
Siemens
Life :
Long
Quality :
Good
Weight :
10.8-44.3
Efficiency :
High-Speed Steel
Export Countries :
More Than 30
Energy :
Saving
Service Life :
Customizable
Transport Package :
Standard Container
Specification :
CE, ISO
Trademark :
Shanghai Dingbo
Origin :
Shanghai, China
HS Code :
8474209000
Supply Ability :
100sets/Years
Type :
Cone Crusher
Motor Type :
AC Motor
Motor Power :
37kw
Application :
Mine
Materials :
Limestone
Outlet Size :
18-48mm
Customization :
Available | Customized Request
Place of Origin :
China
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000
MOQ :
1
Packaging Details :
Normal Packing Ls in Wooden Cases
Delivery Time :
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment,
Description
Siemens Motor Cone Crusher for Ores and Rocks at AffordableSiemens Motor Cone Crusher for Ores and Rocks at AffordableSiemens Motor Cone Crusher for Ores and Rocks at AffordableSiemens Motor Cone Crusher for Ores and Rocks at AffordableSiemens Motor Cone Crusher for Ores and Rocks at AffordableSiemens Motor Cone Crusher for Ores and Rocks at Affordable
Cone Crusher

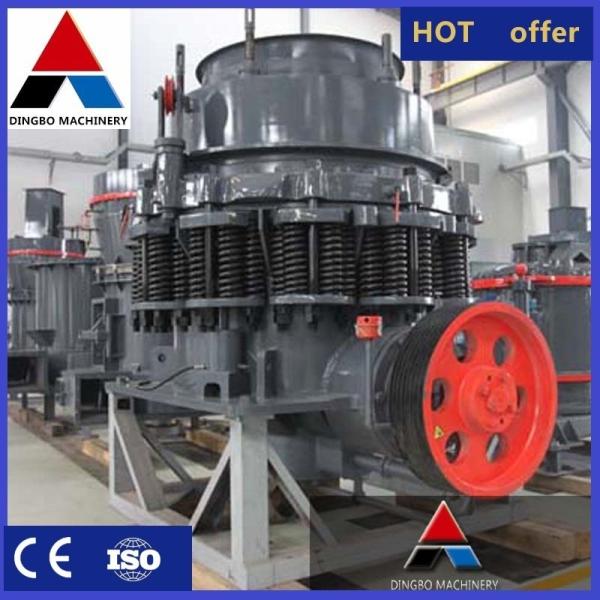

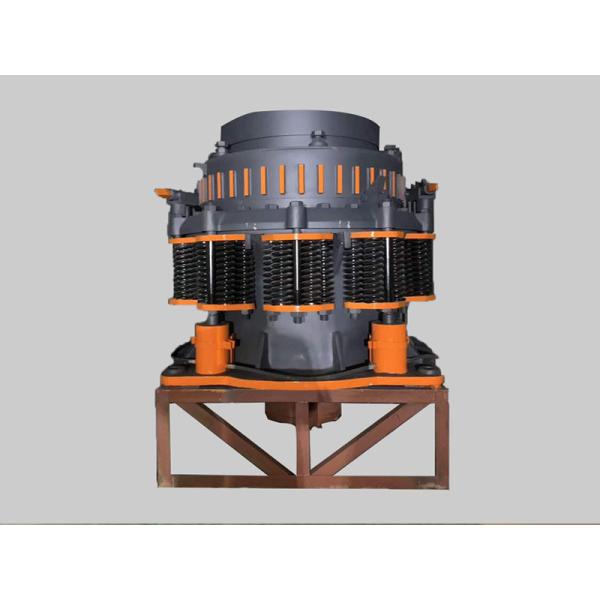

It is widely used in metallurgy, construction, road building, chemicals and phosphate industry. Hard and midhard ore such as iron ore, cooper ore, limestone, quartz, granite, basalt, and dolerite, etc. Product DescriptionSpring cone crushers are widely applied in metallurgical, construction, road building, chemical and phosphatic industry.Cone crushers are suitable for hard and midhard rocks and ores, Spring cone crushers designed with final size 360mm,used to crusher, Marble, Silica sand, Dolomite, Basalt, Quartz, Feldspar, Limestone, Granite, Slag.The type of crushing chamber depends upon size of
feeding and fineness of crushed product.The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing,and the short head type is applied to fine crushing.
Working Principle

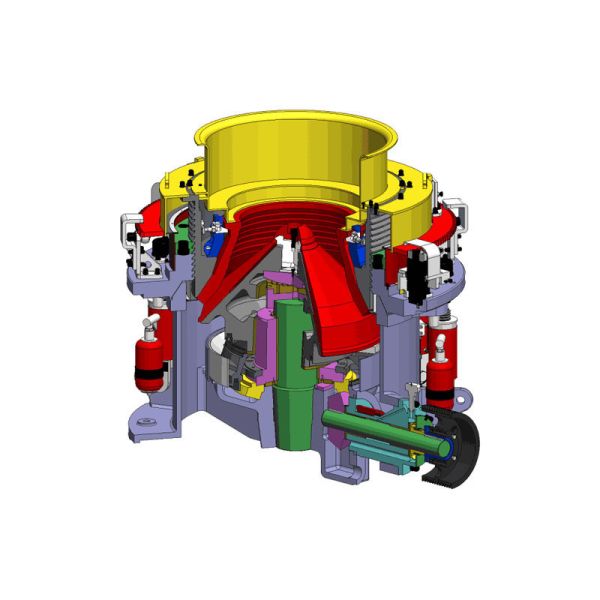

During operation, the motor of spring cone crusher crushes drives the eccentric shaft shell to turn aroundthrough a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaftshell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed. To ensure the precision of thrust bearing installation in spring cone crusher,installation must be the following steps: first, the installation of the thrust bearing should be same to steps of scratching; jaw plate placed,in a case back should be smooth,if case back has the burr and the remaining sand,please clean up.Then pour lubricating oil to just the top of jaw plate. then install the middle circle plate and circle plate. Finally, install the air eccentric shaft, spherical tile racks, and spindle. When installing air eccentric shaft,the big gear weight should be placed in the top of
small gear,so that the outer end of bevel gear is alignment. After spherical wham installed, the gap between spherical bearing seat and the main machine is as big as possible.
Main features and benefits
1. High quality and productivity.
2. less machine stop time.
3. easy maintenance and low cost.
4. unique crushing ability in primary, secondary and tertiary crushing.

Specification
CS Cone Crusher
Spec.ific
ation		 Model Cavity
Size(Coarse
/Fine)		 Moving
Cone
Diameter
(mm)		 Dischar
gingOp
ening
Size(mm)		 Max
Feeding
Size(mm)		 Capacity
(t/h)		 Power
(kw)		 Weigh(t)
CS-90/3 C C 900 13-38 175 59-163 75 15
B B 9-22 102 45-91
D D 3-13 41 27-90
CS-1160 C C 1200 13-38 160 70-215 110-132 23.8
B B 10-25 115 55-135
D D 6-9 80 47-90
CS-130 C C 1225 13-38 180 105-220 132 24.5
B B 10-25 130 72-170
D D 10-19 90 70-125
CS-160/41 C C 1295 16-51 200 135-350 160 26.8
B B 13-25 150 105-180
D D 10-19 102 80-140
CS-240/51 C C 1650 22-64 267 330-725 250 49.5
B B 16-25 203 240-330
D D 10-19 140 190-330
CS-350/7 C C 2134 25-76 303 608-99 350 83
B B 31-89 334 789-1270
D D 10-19 150 352-617
