Structural Parts Liquid Painting Production Line with Customizable Automatic Coating Machine

This production system is specifically engineered for painting carbon steel structural components, offering dual application methods:

  1. Coating Application Options

  • Angled basket dipping process

  1. Material Handling System

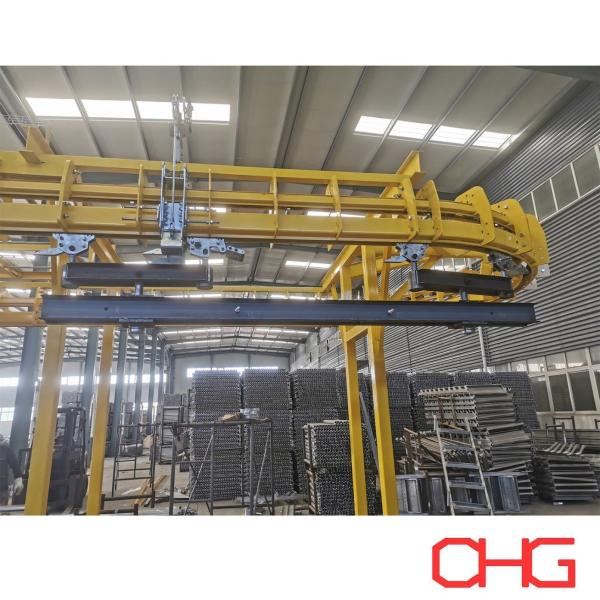

  • Power-and-free overhead conveyor configuration

  • Forklift-assisted manual loading/unloading stations

  1. Key Features

  • Designed for medium-to-heavy structural components

  • Optimized for carbon steel substrate preparation

  • Flexible production flow accommodating both coating methods

  1. System Components

  • Motorized conveyor with variable speed control

  • 45° angled dipping station for complete coverage

  • Dedicated drying/curing zones

  1. Operational Parameters

  • Maximum load capacity: 2000kg per carrier

  • Line speed: 0.5-3.0 m/min adjustable

  • Dipping tank dimensions: [customizable]

Production Line Process:

  1. Manual Loading (forklift-assisted)

  2. Immersion Coating (6 minutes)

  3. Drip-Off Station (90 minutes)

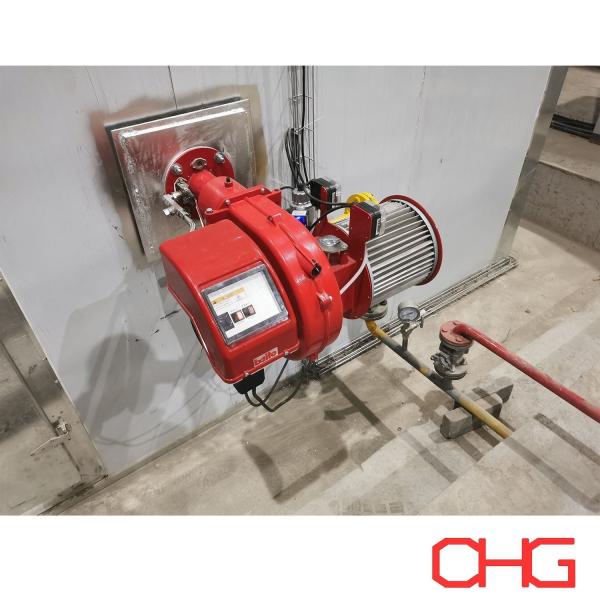

  4. Drying Oven (48 minutes at 60-80°C)

  5. Natural Cooling (6 minutes)

  6. Manual Unloading (forklift-assisted)

Benefits:

Superior Coating Performance Our dipping coating line ensures uniform and comprehensive coverage, offering outstanding protection against corrosion and environmental factors. This guarantees the long-term durability of your carbon steel structural components.
Boosted Production Efficiency Leverage our accumulation conveyor system and automated material handling to achieve higher production throughput, minimize downtime, and enhance overall operational efficiency.
Enhanced Cost-Effectiveness The precise dipping process, coupled with energy-efficient drying and curing ovens, optimizes material usage. This reduces waste and lowers operational costs, improving your bottom line.
Exceptional Finish Quality Benefit from advanced technology and stringent quality control measures that ensure a flawless, consistent finish. This not only elevates the aesthetics but also enhances the market appeal of your carbon steel components.


Our advanced dipping coating system delivers:

  • Precision immersion for uniform coverage

  • Optimized productivity with efficient process timing

  • Superior finish quality for enhanced durability

Custom Solutions Available
We engineer coating lines to meet your specific production needs. Contact us for a tailored proposal.

Contact Us to discuss your requirements or explore other coating line configurations.
