Customized Powder Coating Line for Hospital Beds with Manual Electrostatic Spray System

Reliable Coating Solution for Medical Equipment Manufacturing

This powder coating production line is specially engineered for hospital beds and other medical steel furniture. Designed to meet the stringent quality requirements of the healthcare industry, the system delivers excellent coating adhesion, corrosion resistance, and an attractive surface finish while maintaining flexible production and stable operation.

The line utilizes manual electrostatic powder spraying, allowing experienced operators to accurately coat complex structures, welded joints, corners, and difficult-to-access areas. This approach ensures complete coverage and consistent coating quality across every workpiece.

Whether producing standard hospital beds, medical trolleys, patient furniture, or other healthcare equipment, the production line can be customized to match your production capacity, product dimensions, and factory layout.

Key Features

• Manual electrostatic spray system for maximum coating flexibility

• Ideal for hospital beds and other medical equipment

• Excellent coating uniformity on complex welded structures

• High-quality corrosion-resistant powder coating finish

• Flexible production for multiple product models and sizes

• Custom-designed line layout based on customer requirements

Powder Coating Process

1. Surface Preparation

Before coating, workpieces are thoroughly cleaned to remove oil, grease, dust, welding residues, and other contaminants. Proper surface preparation provides the foundation for excellent coating adhesion and long-term durability.

2. Chemical Pretreatment

The cleaned components pass through a pretreatment process that improves corrosion resistance and enhances powder adhesion. Depending on product requirements, the system may include:

• Degreasing

• Water rinsing

• Phosphating

• Chromate or chrome-free conversion coating

• Final rinsing

These treatments create a stable conversion layer that significantly improves coating performance.

3. Drying

Following pretreatment, the workpieces enter a drying oven where all residual moisture is removed. A completely dry surface is essential for achieving a smooth, defect-free powder coating.

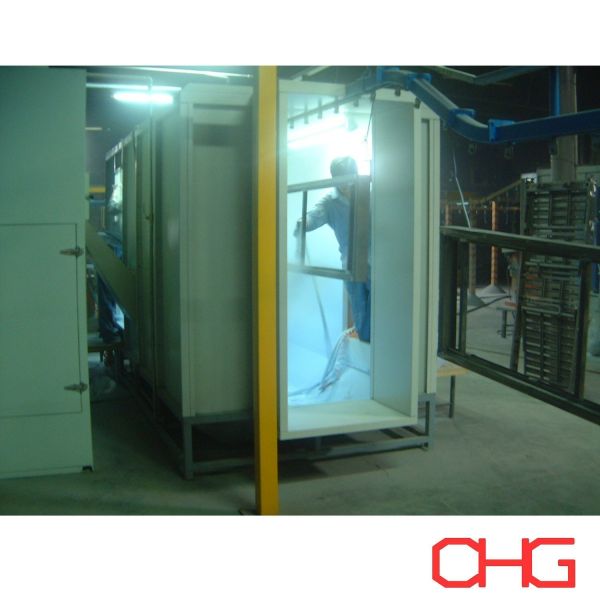

4. Manual Electrostatic Powder Spraying

After drying, operators apply electrostatically charged powder using manual spray guns. This method provides excellent flexibility for coating products with complicated geometries, ensuring complete coverage of corners, joints, tubing, and recessed areas while maintaining consistent film thickness.

5. Powder Curing

The coated workpieces are transferred into the curing oven, where controlled heating melts and cross-links the powder coating into a continuous protective film. The cured coating offers outstanding:

• Corrosion resistance

• Impact resistance

• Wear resistance

• Surface hardness

• Long-term durability

6. Cooling

After curing, the coated products are cooled under controlled conditions to stabilize the coating and maintain a high-quality surface appearance.

7. Final Quality Inspection

Each finished product undergoes comprehensive quality inspection, including:

• Coating thickness measurement

• Surface appearance inspection

• Adhesion testing

• Finish consistency verification

Only qualified products proceed to packaging and shipment.

Why Choose a Manual Powder Coating Line?

For products such as hospital beds, manual electrostatic spraying offers superior flexibility compared with fully automatic systems. Skilled operators can precisely control the spray angle and coating thickness, ensuring excellent coverage on complex tubular frames, hinges, and welded assemblies that are difficult for automatic spray guns to reach.

This approach provides high-quality finishing while allowing manufacturers to accommodate multiple product designs and frequent model changes with minimal production adjustments.

Customized Engineering Solutions

Every powder coating line is individually designed according to your manufacturing requirements. We can customize the complete system based on:

• Product dimensions and weight

• Production capacity

• Pretreatment process requirements

• Powder coating specifications

• Workshop layout

• Automation level

• Environmental and energy-saving requirements

Contact us today for a customized technical proposal. Our engineering team will develop a complete powder coating solution that maximizes production efficiency, coating quality, and long-term operational reliability for your hospital bed manufacturing line.
