Hybrid Automatic & Manual Powder Coating Line for Aluminum Profiles

Flexible Coating Solution for Various Aluminum Profile Applications

This customized powder coating production line integrates automatic electrostatic spraying with manual coating flexibility, making it suitable for aluminum profiles with different sizes, shapes, and surface structures.

The system adopts an overhead conveyor configuration to provide smooth and continuous transportation throughout the coating process. Manual loading and unloading stations allow operators to handle customized profiles and complex geometries with precision, ensuring excellent coating coverage and consistent finishing quality.

Key Features

Automatic Spraying with Manual Supplementary Coating

The combination of automated spray equipment and manual touch-up operation provides:

• Uniform powder distribution

• Improved coverage on complex profile structures

• Flexible handling of customized workpieces

• Stable coating quality for different production requirements

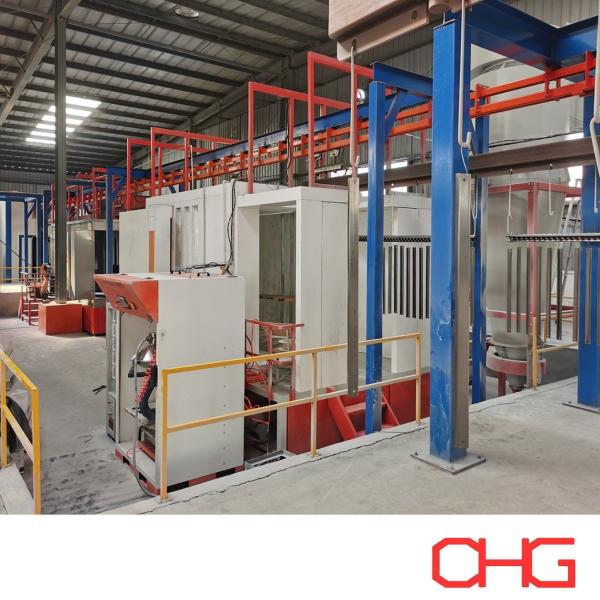

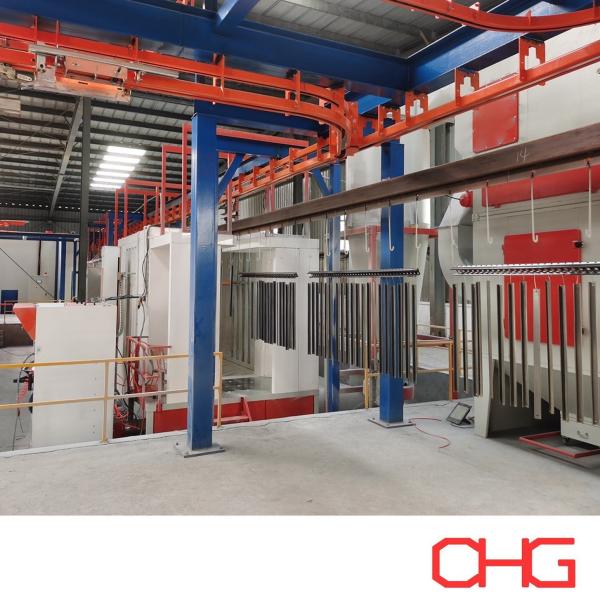

Overhead Conveyor System

The overhead conveying system optimizes workshop space utilization while ensuring reliable movement of aluminum profiles through each process stage.

Advantages include:

• Continuous material transportation

• Smooth workflow between processing stations

• Flexible layout integration

• Reduced manual handling requirements

Manual Loading and Unloading

Dedicated loading and unloading stations enable operators to easily handle:

• Different profile lengths

• Customized aluminum shapes

• Small-batch production requirements

• Complex components requiring careful positioning

Powder Coating Process Flow

1. Surface Preparation

Before coating, aluminum profiles undergo surface preparation to remove:

• Dust and contaminants

• Oil and grease residues

• Processing impurities

Proper cleaning creates a clean substrate and provides the foundation for strong powder coating adhesion.

2. Pre-Treatment

After cleaning, aluminum profiles enter the chemical pretreatment process to improve:

• Coating adhesion

• Corrosion resistance

• Surface stability

Typical pretreatment methods include:

• Chemical cleaning

• Phosphating

• Chromate conversion coating

• Chrome-free conversion treatment

The selected process can be customized according to aluminum alloy type and coating requirements.

3. Drying

Following pretreatment, the profiles pass through a drying oven to remove residual moisture.

A completely dry surface helps prevent coating defects and ensures:

• Better powder adhesion

• Uniform coating appearance

• Stable curing performance

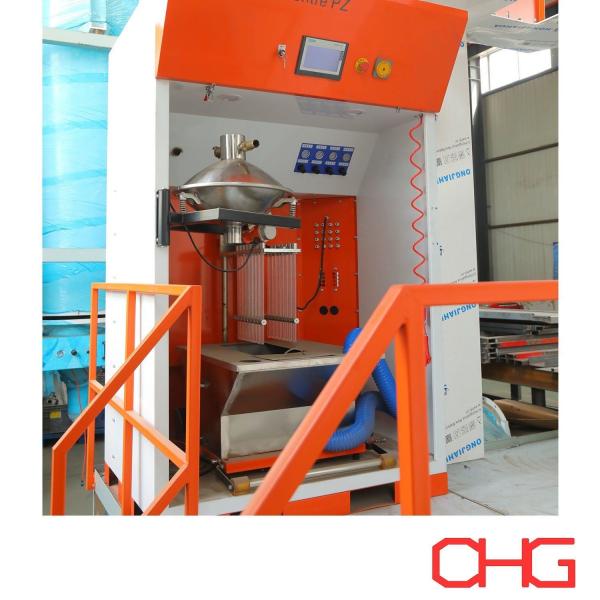

4. Electrostatic Powder Coating Application

After drying, the aluminum profiles enter the spraying section.

The powder coating process uses electrostatic charging technology, where charged powder particles are attracted to the grounded aluminum surface.

This achieves:

• Even powder distribution

• Efficient material utilization

• Consistent coating thickness

Automatic spraying provides stable coverage, while manual spraying can supplement difficult areas when required.

5. Powder Curing

The coated profiles are transferred into the curing oven, where controlled heat causes the powder particles to:

• Melt and flow into a continuous coating film

• Chemically cross-link to form a durable protective layer

The final coating provides excellent:

• Mechanical strength

• Corrosion resistance

• Surface appearance

6. Cooling

After curing, the coated aluminum profiles enter the cooling stage.

Controlled cooling helps:

• Stabilize the coating film

• Preserve surface appearance

• Prepare products for inspection and handling

7. Quality Inspection

The finished profiles undergo comprehensive quality inspection, including:

• Coating thickness measurement

• Surface appearance evaluation

• Adhesion testing

• Overall coating quality verification

Only products meeting the required standards proceed to packaging or further processing.

Customized Powder Coating Solutions

Each powder coating line is engineered according to specific customer requirements, including:

• Aluminum profile dimensions

• Production capacity

• Workshop layout

• Automation level

• Coating quality requirements

Contact us today to receive a customized design proposal. We also provide tailored coating production solutions for different products and industrial applications.
