GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes
Specifications
Brand Name :
Chenglong
Model Number :
GFJ-C
Place of Origin :
China
MOQ :
1 unit
Price :
Consultation
Supply Ability :
50,00pcs/Month
Packaging Details :
Wooden box packaging or as per customer requirements
Applicable to :
Coatings, dyes, pigments, inks, papermaking adhesives, etc
Name :
GFJ-C series of suspended high-speed dispersers
Product brand :
Cheng Long
Advantages :
The mixing and blending effect is excellent
Description

Product Description

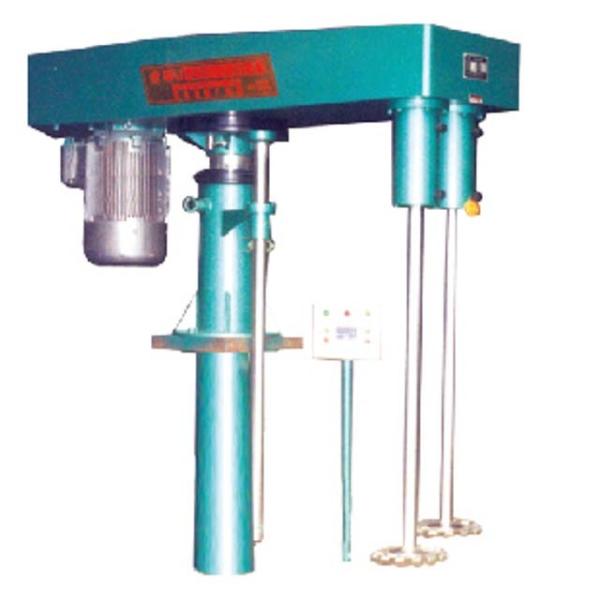

GFJ-C series of suspended high-speed dispersers

The GFJ-C suspended high-speed dispersion agitator is suitable for use in coatings, dyes, pigments, inks, papermaking, adhesives and other chemical industries for stirring, dissolving and dispersing liquid and liquid-solid phase materials.

When stirring and dispersing, the air retention is extremely small, and the mixing and homogenization effect is excellent. For powder and granular materials, it can make the particles smaller. Its types include fixed-speed type, double-speed type and variable-speed type. The lifting of the stirring shaft is controlled by hydraulic pressure, and all operations are centralized in a dedicated electrical cabinet.

GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes

Main technical specifications and parameters

Item/modle GFJ-C-250 GFJ-C-350 GFJ-C-450 GFJ-C-550
Speed Electromagnetic speed control Frequency control Electromagnetic speed control Frequency control Frequency control Frequency control
Main motor power(kw) 11 11 22,30,37 22,30,37 45,55,37 90,110,132
Speed of the dispersion axle(r/min) 120-1200 0-1500 120/1200 0/1500 0/1200 0/1200
Diameter of the dispersion disk(mm) 250,300 300,350 400,450 450,550
Oil pump motor power(kw) 0.75 1.5 2.2 2.2,3
Lifting height of the dispersion disk(mm) 800 1000-1200 1200-1500 1300-1500
Volume of Ingredlents tank(L) 200-500 500-1000 2000-3000 1000-2000
Overall dimension Length x Width x Height (mm) 1650x500x1900 2400x560x2250 2700x650x2670 2400x650x2450
Weight(kg) 800 1100 1350 1600

Our company

GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes

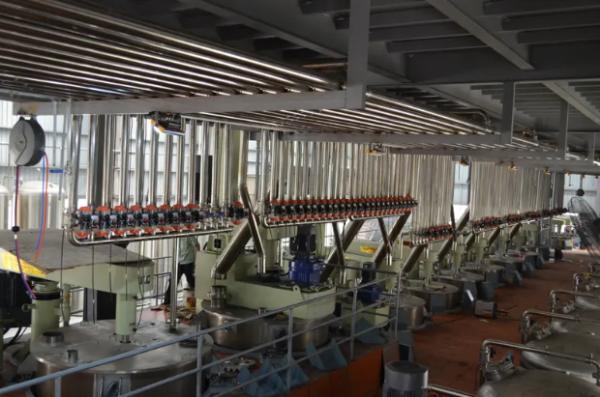

A corner of the workshop

GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes

Corporate honors

GFJ-C Series Of Suspended High-Speed Dispersers For Coatings And Dyes

22,30,37
