CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer
Specifications
Brand Name :
Chenglong
Model Number :
CFJ-A
Place of Origin :
China
MOQ :
1 unit
Price :
Consultation
Supply Ability :
50,00pcs/Month
Packaging Details :
Wooden box packaging or as per customer requirements
Applicable to :
Paints, dyes, pigments, inks, etc
Name :
CFJ-A Uniaxial High-speed Disperser series
Product brand :
Cheng Long
Advantages :
The mixing and blending effect is excellent
Description

Product Description

CFJ-A Uniaxial High-speed Disperser series
The GFJ-A high-speed dispersion agitator is suitable for applications in coatings, dyes, pigments, inks, papermaking, adhesives, etc. In the chemical industry, it has extremely low air retention when stirring and dispersing liquid and liquid-solid phase materials, and offers excellent mixing and homogenization effects. For powder and granular materials, it can reduce particle size.
Its types include fixed-speed type, dual-speed type and variable-speed type.
The lifting and lowering of the stirring shaft is controlled by hydraulic pressure, and all operations are centralized in the electrical cabinet.
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer

Main technical specifications and parameters

Item/modleGFJ-A-100GFJ-A-150GFJ-A-250GFJ-A-350GFJ-A-450GFJ-C-550
SpeedFrequency controlFrequency controlElectromagnetic speed controlFrequency controlElectromagnetic speed controlFrequency controlFrequency controlFrequency control
Main motor power(kw)2.2,33,45.5,7.5,1115,18.5,22,3045,5575,95,110
Speed of the dispersion axle(r/min)0/15000/1500120/12000/1500120/1200/15000/12000/1200
Diameter of the dispersion disk(mm)100150200,250300,350400,450450,550
Oil pump motor power(kw)0.550.550.751.5,2.22.2,33
Lifting height of the dispersion disk(mm)60060080010001200-13001300-1500
Volume of Ingredlents tank(L)30-100100200-500500-10001000-20003000
Overall dimension Length x Width x Height (mm)1500x500x12401500x500x12401650x750x19002400x1000x22003000x1500x26003000x1500x2800
Weight(kg)230250900120015001500


Our company
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer

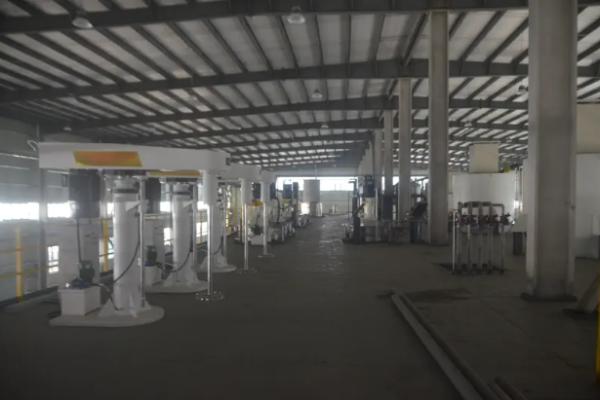

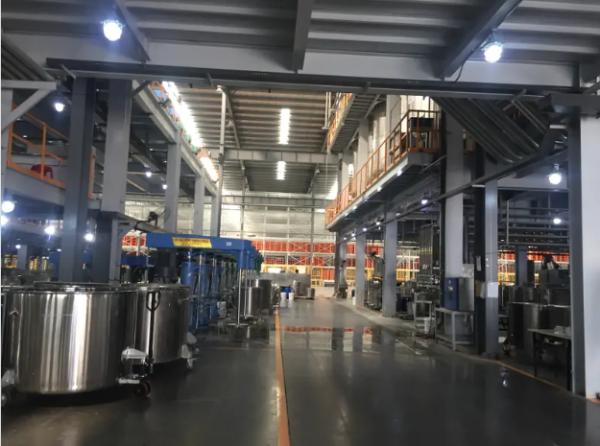

A corner of the workshop
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer

Corporate honors
CFJ-A Uniaxial High-Speed Disperser Series Paint Dispersion Mixer

22,30,37
