Specifications
Heating Method: :
Thermal Oil Heating
Volume(L) :
50
Product Modle :
FPGR-20
Neck No.on Cover :
6
Vessel Height(mm) :
850
Diamension(mm) :
650*650*1900
Working Temperatur: :
-350
Torque(Nm) :
1.9
External Diameter of Outer Vessel(mm) :
365
Capacity :
10L-50L
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
External Diameter of Inner Vessel(mm) :
330
Rotation Speed(rpm) :
50-600
Automatic Grade :
Automatic
Stirring Speed(rpm) :
50-600 Rpm/min
Core Components: :
Motor
Cover Diameter(mm) :
265
Vacuum Degree(Mpa) :
0.098
Glass Material: :
High Borosilicate Glass 3.3
Type :
Reaction Kettle
Motor Power(w) :
180
Power(V) :
220
MOQ :
1
Description

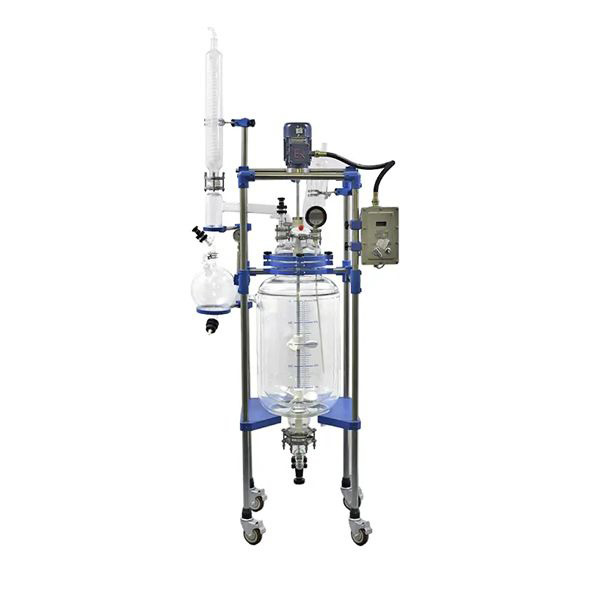

10-50L Explosion-Proof Glass Reactor
Explosion-Proof Glass Reactor

Engineered for Safety and Performance in Hazardous Laboratory Reactions.

Laboratory reactions involving chemicals and substances carry inherent risks, and ensuring safety is paramount. Among the range of equipment used in laboratories, explosion-proof glass reactors stand out for their ability to handle reactive and potentially hazardous reactions. These reactors are specifically designed to prevent explosions and mitigate their risks, providing a secure environment for your critical research and development.

Key Benefits
  • Enhanced safety for volatile and reactive processes
  • Durable construction with high borosilicate glass
  • Precise control over reaction parameters
  • Reliable performance for demanding applications
  • Designed to mitigate explosion risks and ensure personnel safety
Ideal for: Chemical Synthesis, Pharmaceutical Research, Material Science, Petrochemical Analysis, and other demanding laboratory environments.
Product Details
MOQ
1 piece
FOB Price
Contact for Pricing
Packaging & Delivery
Please contact us for specific packaging and delivery information
Origin
China
Technical Specifications
General Specifications
Capacity Automatic Grade Stirring Speed (rpm) Type
10L-50L Automatic 50-600 Rpm/min Reaction Kettle
Core Components Glass Material Working Temperature Heating Method
Motor High Borosilicate Glass 3.3 -350°C (Note: This value seems unusually low for a working temperature, please verify) Thermal Oil Heating
After Warranty Service Product Model Volume (L) Neck No. on Cover
Video technical support, Online support, Spare parts, Field maintenance and repair service FPGR-10 10 6
Model Specifics
Product Model Volume (L) Motor Power (W) Vacuum Degree (Mpa)
FPGR-10101800.098
FPGR-20201800.098
FPGR-30301800.098
FPGR-50501800.098
Product Model Rotation Speed (rpm) Torque (Nm) Power (V)
FPGR-1050-6001.9220
FPGR-2050-6001.9220
FPGR-3050-6002.86220
FPGR-5050-6002.86220
Product Model Dimension (mm) External Diameter of Inner Vessel (mm) External Diameter of Outer Vessel (mm)
FPGR-10650*650*1900230290
FPGR-20750*500*2000290330
FPGR-30750*500*2100330365
FPGR-50800*600*2300365410
Product Model Cover Diameter (mm) Vessel Height (mm)
FPGR-10265450
FPGR-20265550
FPGR-30265730
FPGR-50265850
