Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Specifications
Certification :
CE,ISO9001
Type :
Reaction Kettle
After-sales service provided :
Video technical support,Field maintenance and repair service
Application :
new material synthesis
Voltage :
220V/50HZ ( customizable as clients' region)
Vacuum degree :
0.098mpa
Warranty :
12 Months
Capacity :
Customzied
Product name :
Jacketed Glass Filter
Dimension(l*w*h) :
Ordered Equipment
Brand Name :
NTSJ
Model Number :
FPGR-3
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets/momth
Delivery Time :
within 5days after payemnt received
Packaging Details :
The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Description
Customizable Lab Glass Reactor, Glass Batch Reactor Single Jacketed
Glass Reactor Overview
This series of glass reactors can be designed as double glass reactors or three-layer glass reactors. The inner layer accommodates reactants for stirring, while the jacketed layer circulates heating oil or coolant for distillation and cooling reactions. These reactors operate under normal pressure or negative pressure with constant stirring.
Primarily used for combination, reaction, separation, and concentration processes, these reactors serve as ideal equipment for chemistry, fine chemicals, biopharmaceuticals, and the synthesis, testing, and production of new materials.

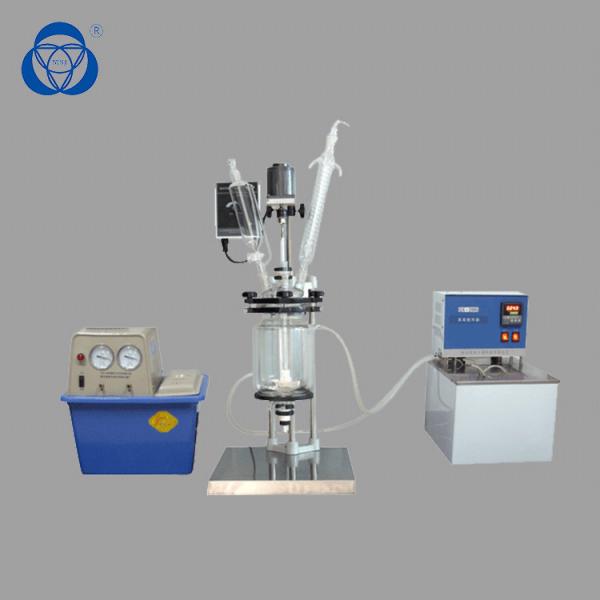

The reactor system can be integrated with circulating water vacuum pumps, diaphragm vacuum pumps, chillers/low-temperature circulators, and heating/cooling circulating devices.
Technical Specifications
Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume (L) 3 5 10 30 50 100 200
Neck No. on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel (mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel (mm) 200 230 290 365 410 500 650
Cover Diameter (mm) 150 180 265 265 265 340 340
Vessel Height (mm) 300 400 450 730 850 950 1200
Motor Power (W) 40 60 140 140 140 250 750
Vacuum Degree (Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed (rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque (Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power (V) 220 220 220 220 220 220 220
Dimension (mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200
Main Features

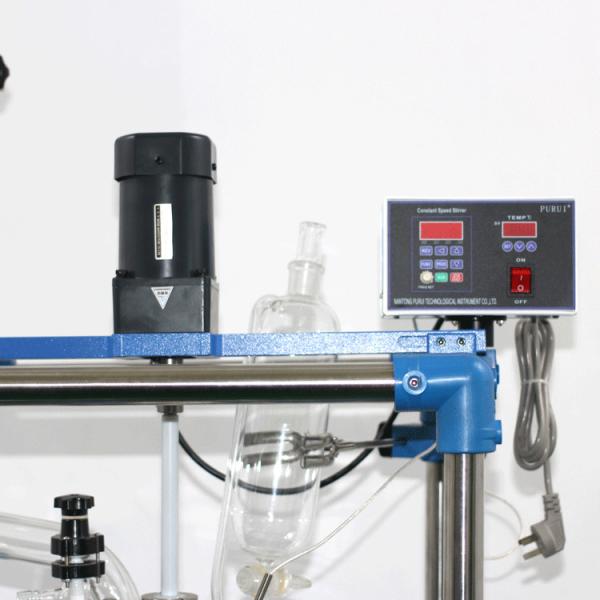

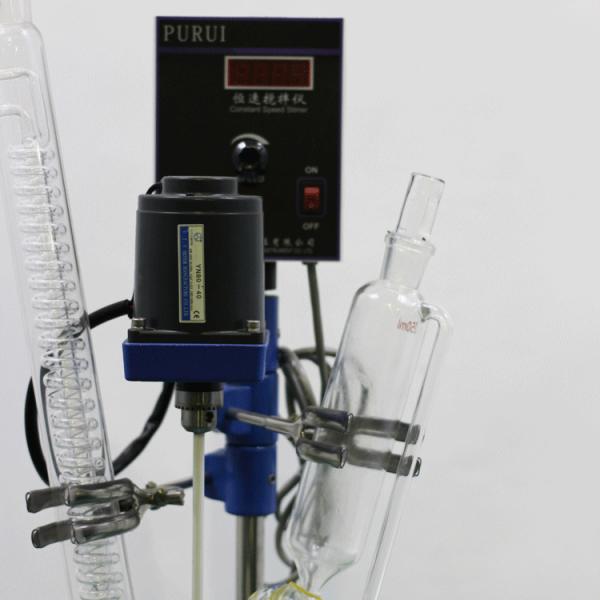

Customizable Explosion-Proof Display Converter
This product series incorporates explosion-proof motors, explosion-proof frequency converters, and explosion-proof intelligent temperature control boxes. The explosion-proof motor ensures stable operation, high torque, spark-free performance, and extended service life.
Speed can be configured through speed, screw, and torsion settings for convenient and intuitive operation. The temperature measuring probe within the kettle displays internal temperature readings.
PTFE Material Components
Stainless steel stirring bars coated with PTFE are suitable for mixing various solvents without contamination, offering excellent corrosion resistance.

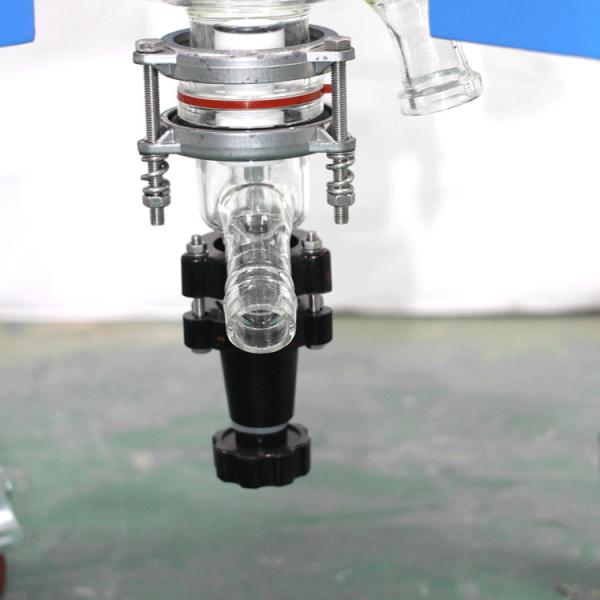

Discharge Port
Constructed from PTFE material, the discharge port provides high-temperature resistance, corrosion resistance, strong anti-adhesion properties, and facilitates easier cleaning.
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Packing and Delivery
Packaging includes carton and wooden cases. Customized packaging options are available upon request.
We ship goods internationally via leading carriers including DHL, UPS, TNT, EMS, and other express services.
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Our Factory
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. specializes in the research, development, and production of chemical glass instruments. As a professional supplier, we are committed to providing high-quality, cost-effective laboratory products to customers in universities, research laboratories, and production facilities.
Customizable Explosion Proof PTFE Material Jacketed Glass Reactor for New Material Synthesis
Our Service
Customizable Solutions
We offer efficient and safe transportation through partnerships with leading international shipping companies including DHL, UPS, FedEx, and TNT, providing various sea and air shipping options. Orders are typically shipped within 3 days of payment receipt.
Secure Packaging
Our strict packing process ensures the safety and completeness of all goods during transit.
Comprehensive Customer Support
We provide professional pre-sale, sale, and after-sale services for every customer, ensuring complete satisfaction throughout the entire process.
