11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads
11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads
11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads
11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads
Specifications
Brand Name :
Charmhigh
Model Number :
CHM-T510LP4
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Day
Delivery Time :
1-5 work days
Packaging Details :
wooden case
Dimensions :
2060mm(L)×605mm(W)×700mm(H)
Weight :
145KG
Power Supply :
AC220V (50Hz, single phase)/AC110V (60Hz, single phase);400W
Air Supply :
0.5MPa ~0.7MPa
Vacuum Generation :
Built-in vacuum pump
Description

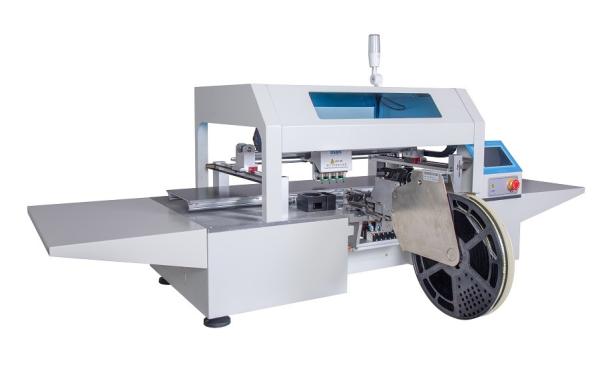

Support 11000CPH SMT pick and place machine with 4 heads CHM-T510LP4

CHM-T510LP4 Introduction

This is CHM-T510LP4, a high-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.

CHM-T510Lp4 is characterized by 8 feeder stacks, support for Yamaha pneumatic feeders and stick feeders with tubular components, 4 heads capable of 360-degree rotation, automatic correction to pick components, and automatic positioning through recognition of Mark Point for high mounting accuracy, integrated operation with built-in industrial computer.

CHM-T510LP4 possesses the capability to satisfy the requirements for the placement of LED lamp beads on PCB board which could be 1.2 meters long.

CHM-T510LP4 main features

1. Model number: CHM-T510LP4

2. Brand: charmhigh

3. main configuration: type of desktop + 4-head 8 feeders + built-in pc + built-in linux system embedded + closed circuit control engine with coded + 2 cameras + linear track + automatic calibrate pcb + touch-sensitive screen

4. feeder: 2 options: yamaha cl feeder/electric feeder (feeders buy separately)

5. pcb area: 1200mm*240mm

6. Component: 0402-5050, led, sot, sop, qfn, bga... etc.

7.Mounting speed:11000cph(optimal without vision detection),5500cph(optimal with vision detection)

Demo video

https://youtu.be/bwF2IB5wsbk CHM-T510LP4 of Hunan Charmhigh Electromechanical Equipment Co., Ltd

Specifications Of CHM-T510LP4

CHM-T510LP4 Specifications
Dimensions 2060mm(L)×605mm(W)×700mm(H)
Weight 145kg
Power Supply AC220V (50Hz, single phase)/AC110V (60Hz, single phase);400W
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4
Mounting Speed

11000cph(optimal without vision detection);

5500cph (optimal with vision detection)
Control Accuracy 0.015mm
Component Type

0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size 10mm(L)×10mm(W)～1200mm(L)×240mm(W)
PCB Conveying Manual operation
Nozzle Change Manual operation
Control System

Built-in computer (embedded Linux operating system),

7-inch touch screen
Drive System X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration
Transmission System Synchronous belt+ linear guide
Feeding System 8 Yamaha standard pneumatic feeder stacks, Yamaha electric feeder supported
Vision System Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning


11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads

11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads

11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads

11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads

11000CPH SMT Pick And Place Machine CHM-T510LP4 With 4 Heads

Our service

The SMT machine will be tested 100% well before ship out.

Tools and manuals are complete included in the package.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service.

If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.

Tel:+86 19974864109/0731-85504084

Email:yumikozhou@charmhigh.com

one@charmhigh. com

WhatsApp/WeChat ID :+86 19974864109

website:Http://en.charmhigh.com
