Specifications
Brand Name :
Charmhigh
Model Number :
CHM-551
Certification :
CE、FCC、SGC、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Price Negotiable
Payment Terms :
T/T
Supply Ability :
20 set a month
Delivery Time :
15 work days
Packaging Details :
Wooden packing
Dimensions :
980mm(L)X 1050mm(W) X 880mm(HD)
Weight :
190kg
Power Supply :
AC220V (50Hz，single phase) 1.5kw
Air Supply :
0.5MPa ~0.7MPa
Vacuum Generation :
vacuum pump
Mounting Head Quantity :
4
Mounting Speed :
11500CPH(optimal) IPC9850:8850cph
Mounting Accuracy :
（XY）±0.06mm CPK≥1.0
Description

Charmhigh Vertical SMT Pick and Place Machine

CHM-551 with 60 feeders LED Mounting

CHM-551 is a four-head high-speed high-precision general-purpose automatic pick and place machine with high-end configuration mechanism and excellent performance, and its price is affordable. It is used for R&D proofing and SMT small and medium-sized production, and can quickly recover investment cost.

Machine features

1. Support CPK test

2. Automatic nozzle change (13 sets nozzle library)

3. Thermal Compensation

4. Automatic conveying

5. Optimal speed:11500CPH IPC9850:8850CPH

6. .……

For more machine features, please consult our account manager

Parts List

Item Quantity Item Quantity
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Test Report 1 Mouse Pad 1
Brush 1 Power Cable 1

Charmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED MountingCharmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED MountingCharmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED MountingCharmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED MountingCharmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED MountingCharmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED MountingCharmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED MountingCharmhigh Vertical SMT Pick And Place Machine CHM-551 With 60 Feeders LED Mounting

CHM-551 Specifications

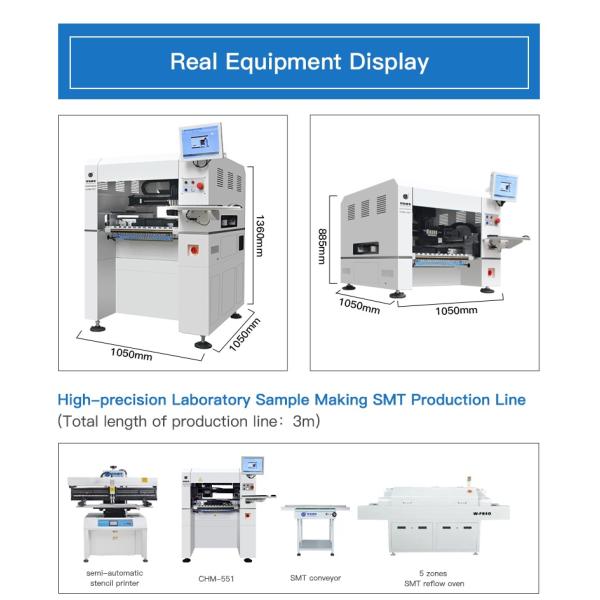

Dimensions 980mm(L)X 1050mm(W) X 880mm(HD)
Weight 190kg
Power Supply AC220V (50Hz,single phase) 1.5kw
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation vacuum pump
Mounting Head Quantity 4
Mounting Speed

11500CPH(optimal)

IPC9850:8850cph
Mounting Accuracy (XY)±0.06mm CPK≥1.0
Control Accuracy 5μm
Component Height 12mm
Component Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size

350mm(L)x270mm(W) (Standard);

600mm(L)x350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13 hole nozzle library)
Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors;adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System

50 Yamaha 8mm standard pneumatic/electric feeder stacks

(also suitable for IC tray and stick feeder)
Vision System

Snapshot camera×4 (component size applicable: 14mm×14mm);

IC camera×1 (component size applicable: 25mm×25mm);

Mark camera×2

FAQ:

Q:How is the training?

A:After buying our machines, your engineers can go to our company or our engineers go to your factory if require, and we will train them how to use these machines.

Q:Is it hard to use these machines?

A:No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.

Q:Does you machines have quality certificate?

A:Charmhigh already owns 24 property rights, including 22 national patents and two software copyrights, and has passed ISO quality management system certification, EU CE certification, ROHS certification, and US FCC, SGS and other international certifications.

Q:How about the warranty?

A:We support one year warranty. We will regularly update the software for customers. If there is any doubt in the process of operating the machine,please feel free contact us. We will help you in time.All the spare parts will be provided free of charge for you within the warranty period.
