Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861
Specifications
Brand Name :
Charmhigh
Model Number :
CHM-861
Certification :
CE
Place of Origin :
Changsha,China
MOQ :
1item
Price :
USD $30980
Payment Terms :
credit card,PayPal,T/T
Supply Ability :
200 per month
Delivery Time :
1-3 work days
Packaging Details :
wooden box
Mounting Head Quantity :
8
Mounting Speed :
36000cph (optimal)
PCB Size :
450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional)
Dimensions :
1600mm(L)×1430mm(W)×1530mm(H)
Weight :
1596kg
Component Type :
0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
Description

Charmhigh Chm-861 Automatic Pick and Place Machine for PCB Assembly

CHM-861 Specifications
Dimensions1600mm(L)×1430mm(W)×1530mm(H)
Weight1596kg
Power SupplyAC380V (50Hz, three phase), 4.5kW
Air Supply0.5MPa ~0.7MPa
Vacuum GenerationBuilt-in vacuum pump
Mounting Head Quantity8
Mounting Speed36000cph (optimal)
Mounting Accuracy±50μm@μ±3σ/chip
Control Accuracy4μm
Component Height12mm
Component Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)

PCB Thickness0.6mm~3.5mm
PCB Size

450mm(L)×350mm(W) (standard);

1200mm(L)×350mm(W) (optional)

PCB Conveying3-section-rail automatic conveying, PCB support
Nozzle ChangeAutomatic nozzle change (37-hole nozzle library)
Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse

Drive SystemX&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission SystemX&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System

100 NXT 8mm standard feeder stacks

(also suitable for IC tray and stick feeder)

Vision System

Fly camera×8 (component size applicable: 16mm×16mm);

IC camera×1 (component size applicable: 36mm×36mm);

Mark camera×2 (digital camera)

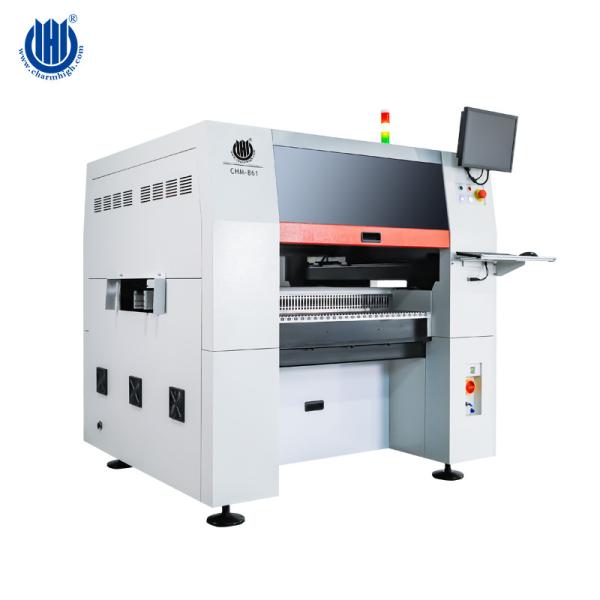

Charmhigh smt smd desktop led pick and place robot machine CHM-861
Charmhigh smt smd desktop led pick and place robot machine CHM-861

Charmhigh smt smd desktop led pick and place robot machine CHM-861

Charmhigh smt smd desktop led pick and place robot machine CHM-861

Charmhigh smt smd desktop led pick and place robot machine CHM-861

Charmhigh smt smd desktop led pick and place robot machine CHM-861

Notes
1.Machines need keeping away from the humid environment and dust, or which will get on electrical shock and fire.
2.Machines need lying stable platform, or which the shake may lead to reduce the precision and even turn over and personal injury.
3.Don’t dismounting the machines casually, or the machine may be broken.
4.Don’t touch the optical axis and the mounting head, or which may damage the machine and hurt yourselves.
5.Make sure the machine engine accordance with the requirements of the standard machine and make sure lie on the ground very well.
6.Make sure the machine away from the inflammables and explosives to avoid the fire and getting the electric shock.
7.Take the small machine parts like suction nozzle at the place where the babies can’t touch.
8.Don’t take the pulling needle stretch out for too long time, or the pulling needle will be broken.
9.Don’t take the machine in the Sun or the highlight directly, or which will reduce the machine precision and even broke the machine.
10.Please kindly contact us if any other questions.
