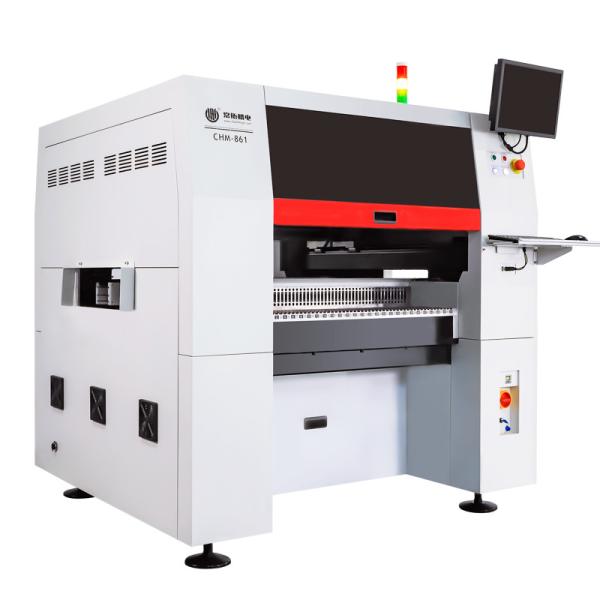

8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861
Specifications
Brand Name :
Charmhigh
Model Number :
CHM-861
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
15 work days
Packaging Details :
wooden box
Dimensions :
1600mm(L)×1430mm(W)×1530mm(H)
Weight :
1596kg
Power Supply :
AC380V (50Hz, three phase), 4.5kW
Air Supply :
0.5MPa ~0.7MPa
Vacuum Generation :
Built-in vacuum pump
Mounting Head Quantity :
8
PCB Thickness :
0.6mm~3.5mm
PCB Conveying :
3-section-rail automatic conveying, PCB support
Nozzle Change :
Automatic nozzle change (37-hole nozzle library)
Feeding System :
100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Description

8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861

8 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-8618 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-8618 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-8618 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-8618 Heads Pick and Place Machine CHM-861 100 Feeders Auto Rail Auto Change Nozzle CHM-861

CHM-861 Specifications
Dimensions 1600mm(L)×1430mm(W)×1530mm(H)
Weight 1596kg
Power Supply AC380V (50Hz, three phase), 4.5kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 8
Mounting Speed 33100cph (optimal)
Mounting Accuracy (xy)±50μm CPK≥1.0
Control Accuracy 4μm
Component Height 12mm
Component Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size

450mm(L)×350mm(W) (standard);

1200mm(L)×350mm(W) (optional)
PCB Conveying 3-section-rail automatic conveying, PCB support
Nozzle Change Automatic nozzle change (37-hole nozzle library)
Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration

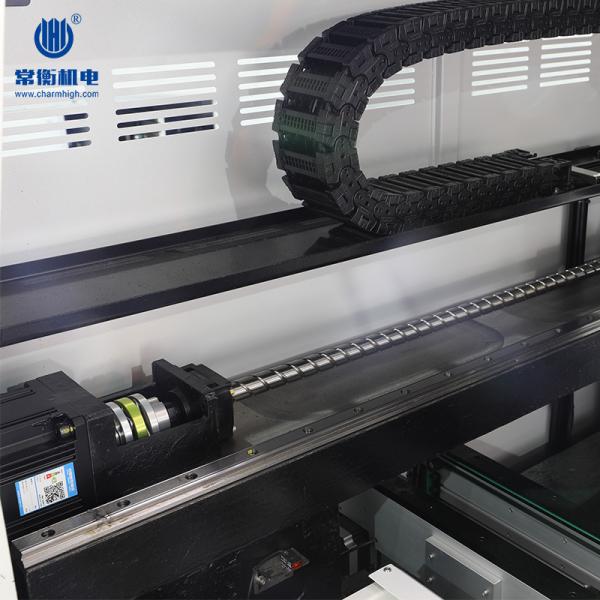

Transmission System X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System

100 NXT 8mm standard feeder stacks

(also suitable for IC tray and stick feeder)
Vision System

Fly camera×8 (component size applicable: 16mm×16mm);

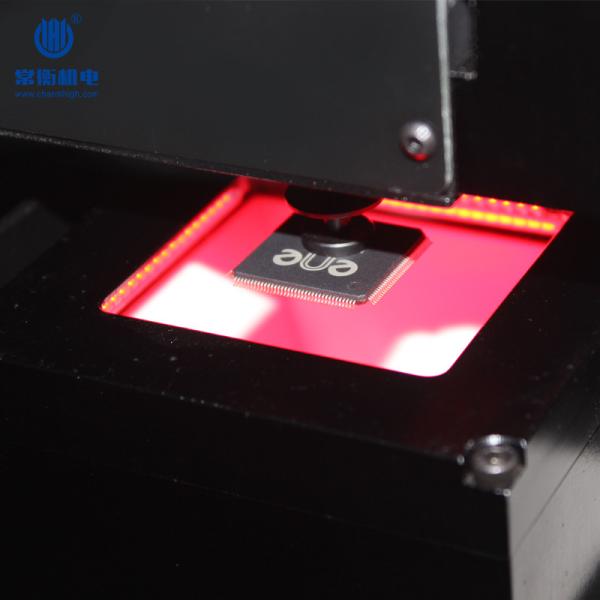

IC camera×1 (component size applicable: 36mm×36mm);

Mark camera×2
